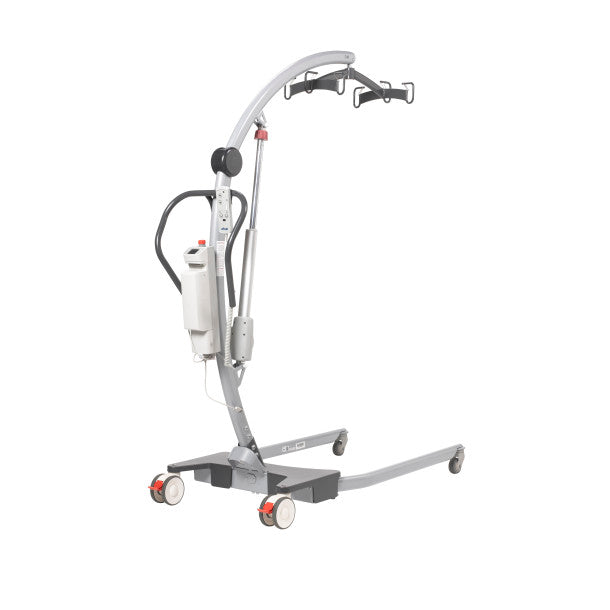

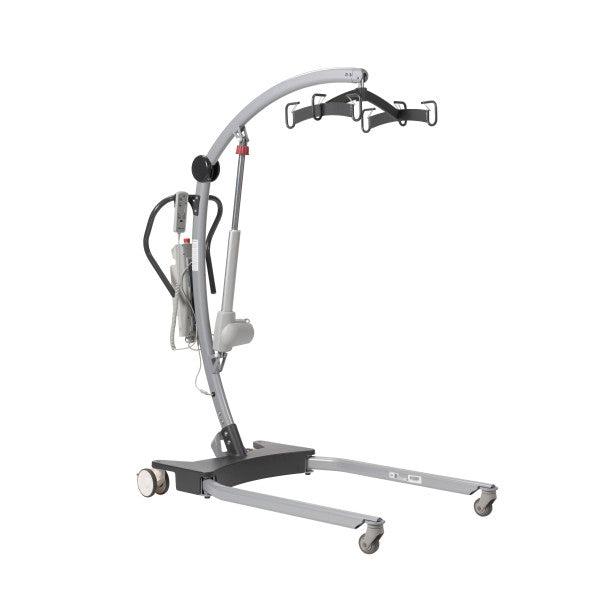

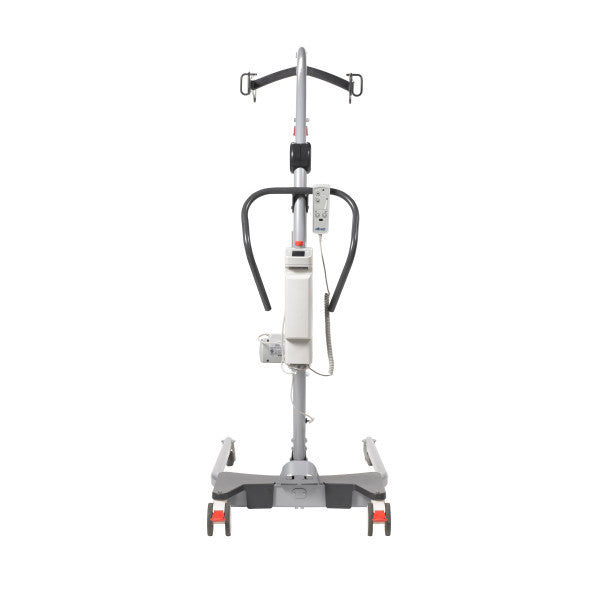

Drive Medical GRAVIS Floor Patient Lift – 600 lb Capacity

Drive Medical GRAVIS Floor Patient Lift – 600 lb Capacity, Six-Point Cradle, Powered & Safe

The Drive Medical GRAVIS Floor Patient Lift is a powerful, safe, and user-friendly solution for patient transfers in homecare and professional care environments. With a 600 lb weight capacity, it can safely lift most patients from the floor to a bed, chair, or other surface with ease.

The six-point cradle with spring clips offers a wider footprint to reduce sling squeeze and works with many sling types, enhancing patient comfort during transfers. The powered lifting system operates on a rechargeable battery, with visual and audible low-battery indicators so you’ll always know when it’s time to charge.

Built with safety in mind, the GRAVIS includes a lift safety stop to halt operation if an obstruction is detected, oversized locking rear casters for stability, and redundant controls in case the hand control becomes inoperable. Its LCD display provides battery status, maintenance alerts, and overload warnings.

Key Benefits & Features

• 600 lb weight capacity – supports most patients safely

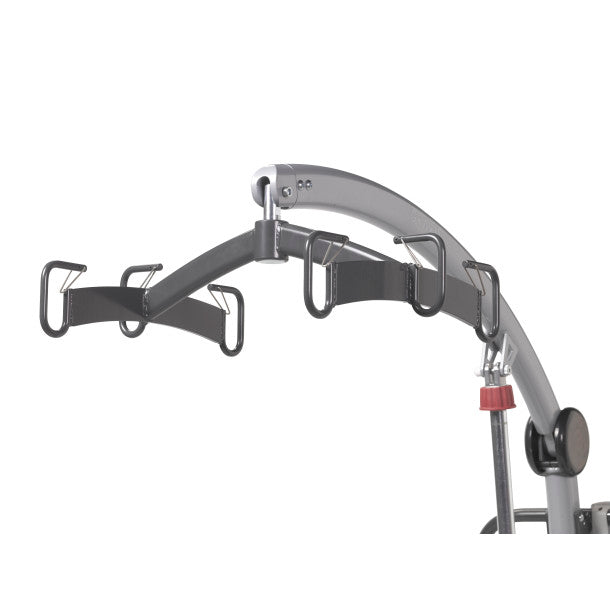

• Six-point cradle with spring clips – wider footprint for better comfort and stability

• Rechargeable battery system – can be charged on or off the lift

• Visual and audible battery indicators – stay informed of charge status

• Lift safety stop – prevents operation if obstruction detected

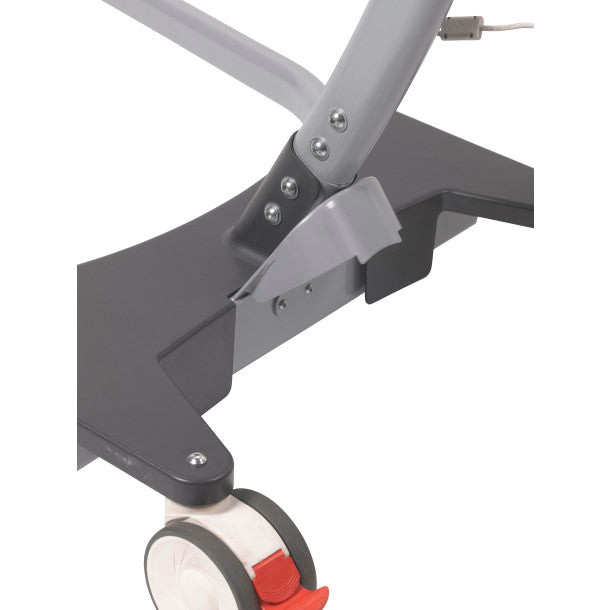

• Oversized sealed rear casters – easy to roll, lock securely in place

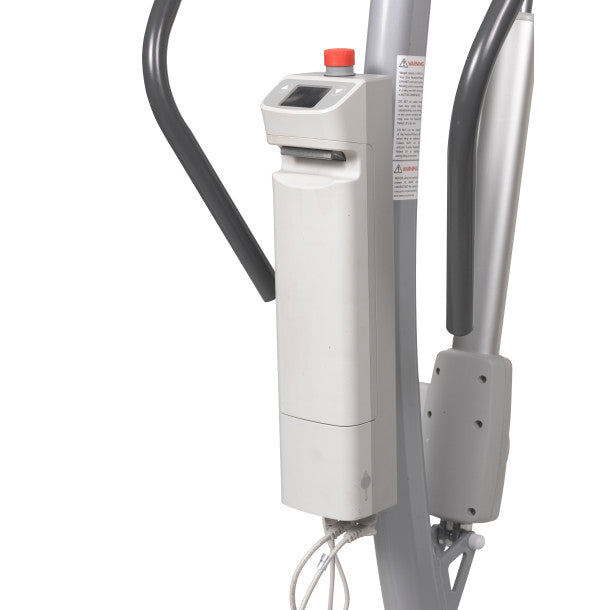

• LCD display – shows battery level, maintenance reminders, overload alerts

• Redundant controls – operate even if hand control is not working

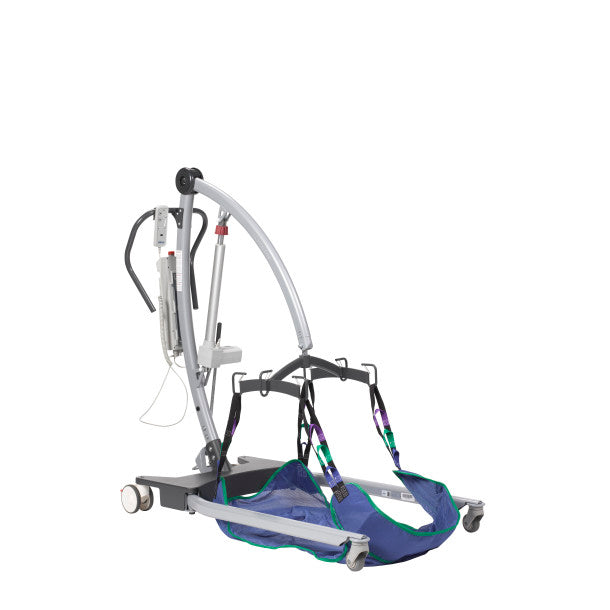

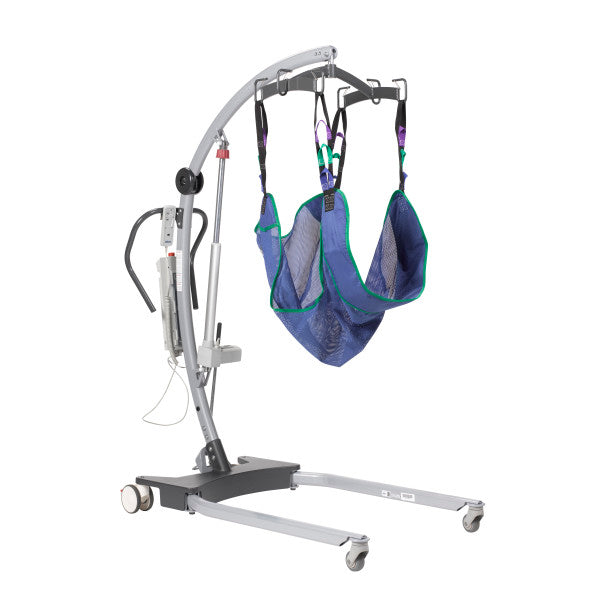

• Compatible with multiple sling styles – adaptable for various needs

• Maintenance monitoring – tracks by months or lift cycles

Specifications

• Weight Capacity: 600 lbs

• Boom Height: 26"–76"

• Ground Clearance: 2.9"

• Product Weight: 156.5 lbs

• Net Weight: 132.2 lbs

• Front Caster Diameter: 3"

• Battery Pack Weight: 7.9 lbs (5.0A), 4.9 lbs (2.9A)

• Battery Warranty: 1 year

• Electrical Components Warranty: 5 years

• Charger: External charger stand included
