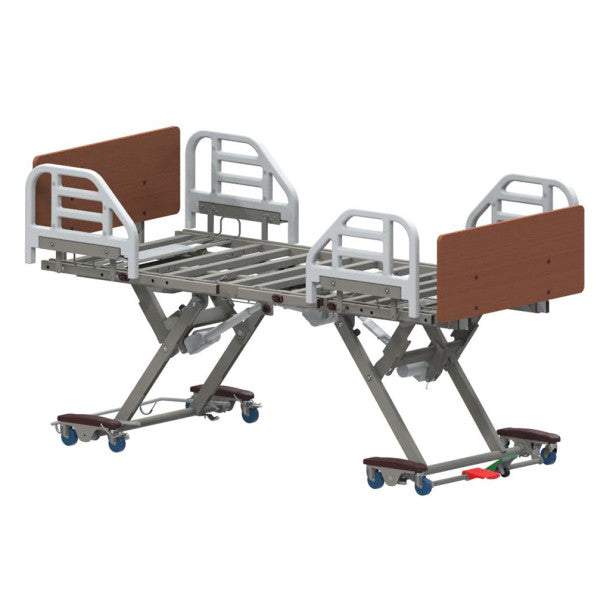

Drive Medical Prime Plus Care Bed – Model P750

The Drive Medical Prime Plus Care Bed (Model P750) is a premium long-term care bed built for exceptional strength, comfort, and adjustability. Designed with a heavy-duty frame supporting up to 750 lbs, this bed delivers unmatched stability for bariatric and long-term care patients. With fully adjustable length, width, and height, caregivers and patients benefit from a highly customizable and supportive experience.

The bed is engineered for both safety and convenience, featuring quiet operation, one-touch width expansion, and an intuitive hand pendant for effortless control. Optional upgrades such as assist rails, trapeze systems, and battery backup further enhance patient care and staff efficiency.

Key Features & Benefits

• Supports up to 750 lbs (700 lbs net weight capacity)

• Heavy-duty frame for stability and long-term durability

• Fully adjustable sleep surface (length: 80"–88", width: 39"–48")

• Height range: 11" low for fall prevention, 30" working height for caregivers

• One-touch width expansion from 39" to 48"

• Cardiac Comfort Chair positioning for enhanced patient comfort

• Quiet, smooth operation with easy-to-use hand pendant

• Integrated floor lock system for stability

• Four heavy-duty locking casters roll easily and secure firmly at any height

• Fixed adjustable wall bumper for extra safety

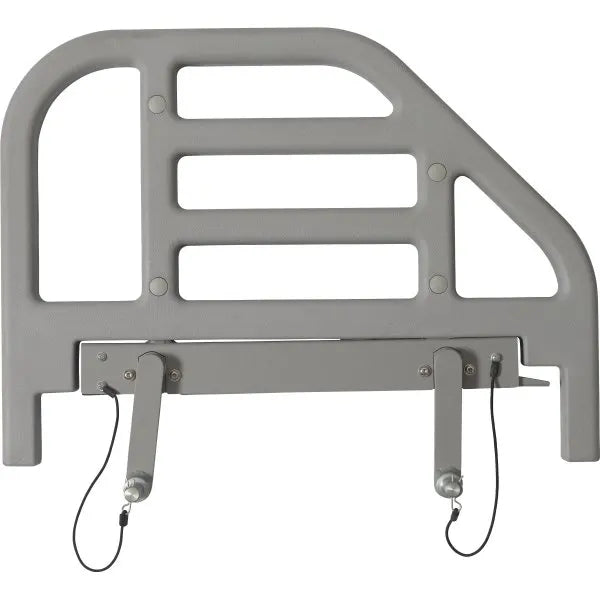

• Optional upgrades: Deluxe assist rails, assist bars, trapeze, battery backup, customizable bed ends

Specifications

• Model: P750

• Weight Capacity: 750 lbs (700 lbs net)

• Sleep Surface Width: Adjustable 39", 42", or 48"

• Overall Width: Adjustable 39"–48"

• Sleep Surface Length: Adjustable 80", 84", or 88"

• Overall Length: Adjustable 88.5", 92.5", or 96.5"

• Head Deck Angle Range: 0° to 69°

• Thigh Deck Angle Range: 0° to 30°

• Foot Deck Angle Range: 0° to 12°

• Input Voltage: 100–240 VAC, 50/60 Hz

• Enclosure Protection: IP66

• Duty Cycle: Min. 2 min (on) / Max. 18 min (off)

• Bed Weight (without upgrades): 282 lbs

Warranty

• 15 years on frame

• Lifetime on welds

• 5 years on electronics
