Drive GRAVIS Floor Lift – 600 lb Capacity, Power Base (FLP600)

Drive GRAVIS Floor Lift FLP600 – 600 lb Capacity | 33–76" Lifting Range | Power Base

The Drive GRAVIS Floor Lift (FLP600) is a high-capacity powered bariatric transfer lift with a 600 lb weight capacity and a lifting range of 33" to 76", allowing transfers directly from the floor to various surfaces. The arched mast provides increased swing room, and the six-point cradle with spring clips offers a wider footprint to reduce sling squeeze.

An intelligent LCD control module monitors lift cycles, maintenance intervals, and weight overload. Visual and audible low-battery alerts, a redundant mast-mounted control system, and integrated obstruction sensors that automatically halt boom movement provide comprehensive operational awareness.

Key Features:

• 600 lb Weight Capacity: Reinforced heavy-duty frame for controlled bariatric transfers
• 33–76" Lifting Range: Floor-to-surface transfers across a wide height range

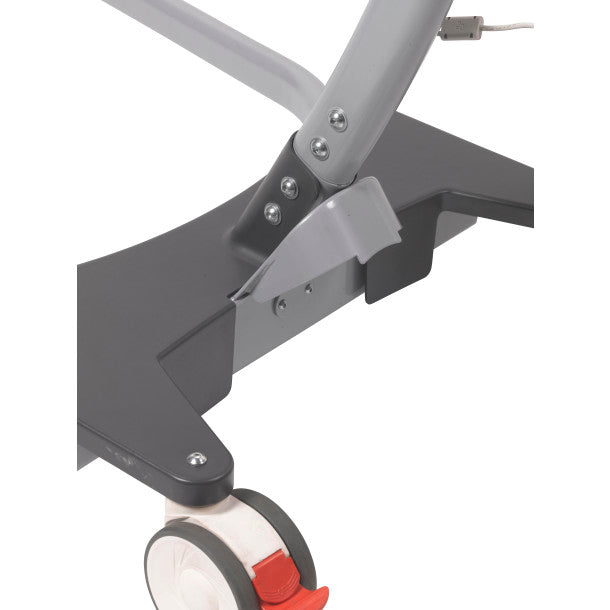

• Power Base Widening: Handlebar-free base adjustment for navigation around furniture

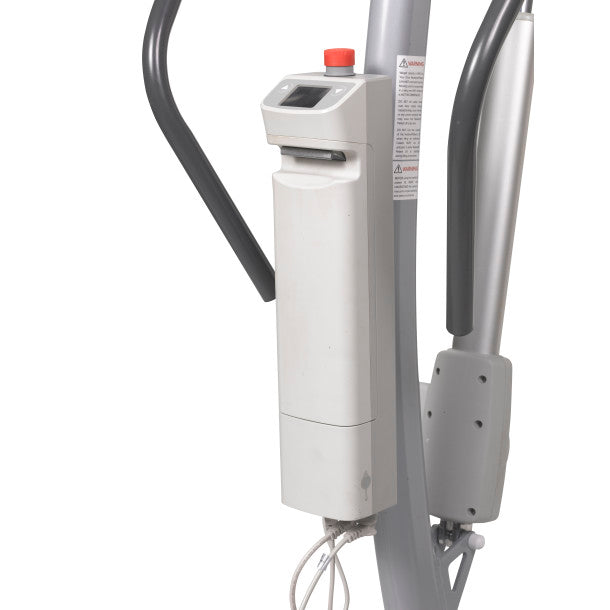

• LCD Control Module: Real-time feedback on battery life, lift cycles, and service needs

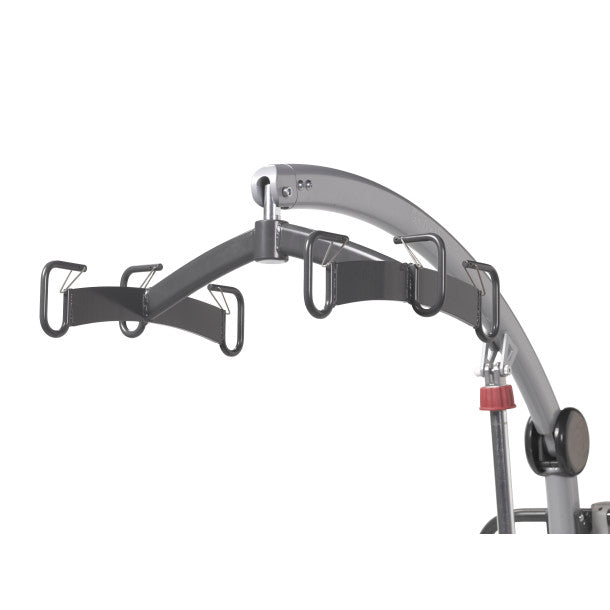

• Six-Point Cradle: Wider footprint reduces pressure; compatible with various slings
• Redundant Controls: Mast-mounted failsafe for continued operation if hand pendant disconnects
• Obstruction Sensors: Automatically halts boom movement when obstruction detected

Specifications:

• SKU: FLP600 | UPC: 822383990880
• Weight Capacity: 600 lbs
• Lifting Range (Boom): 33–76"
• Product Weight: 132.2 lbs (net) | 156.5 lbs (gross)
• Ground Clearance: 2.9"
• Front Casters: 3" low-profile for bed clearance
• HCPCS Code: E0635

Warranty:

• Lifetime: Frame
• 5-Year: Electronics
• 1-Year: Battery
