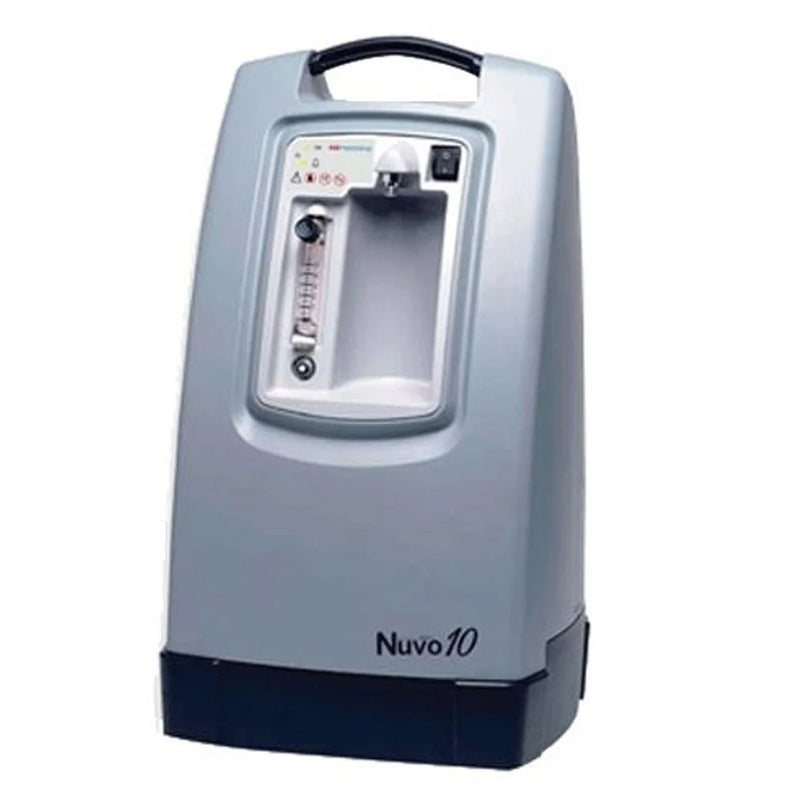

Nidek Medical Nuvo 10 Oxygen Concentrator (10L)
This item requires an Rx or Professional License
The Nidek Medical Nuvo 10 Oxygen Concentrator (Model 595) is the flagship high-capacity stationary oxygen delivery system in the Nidek lineup, engineered for high-flow respiratory therapy requiring up to 10 Liters Per Minute (LPM) of continuous medical-grade oxygen. Designed to handle the rigorous demands of around-the-clock home and clinical therapy, this high-output workhorse eliminates the need for compounding dual 5L units. It features a heavy-duty, commercial-grade compressor block and optimized molecular sieve beds that quickly strip nitrogen from ambient air, reaching full therapeutic purity levels within minutes of activation. Pushing a powerful 15 PSI of outlet pressure, the Nuvo 10 easily drives extra-long oxygen tubing configurations or powers specialized high-flow accessories like nebulizers and large-volume humidifiers without experiencing a drop in line pressure. Model 595 comes factory-equipped with Nidek's integrated Oxygen Concentration Status Indicator (OCSI) sensor, which continuously analyzes output gas quality in real time.
Design & Functional Features
- Maximum 10 LPM Continuous Output: Delivers a reliable, high-volume flow scope ranging smoothly from 2.0 to 10.0 LPM to meet intensive clinical prescription profiles.
- Lockable Flow Management Knob: The variable flowmeter features a robust control knob that can be physically locked into a single prescribed tier with an Allen wrench, preventing accidental or unauthorized manipulation.
- Rapid Pressure Swing Absorption (RPSA): Utilizes Nidek's advanced low-maintenance rotary poppet valve infrastructure to ensure stable, highly efficient oxygen extraction from ambient air.
- Heavy-Duty Mobile Cabinet: Formed from a high-impact composite shell equipped with a rigid top handle, a rear storage pouch for extra tubing, and durable casters for effortless room-to-room transitions.
Product Specifications & Identification
| Parameter | Specification Details |
|---|---|
| Brand / Master Vendor | Nidek Medical Products, Inc. |
| Model Number / SKU | 595 (Nuvo 10 High-Flow with OCSI) |
| UPC / GTIN | 038214001445 |
| HCPCS Billing Code | E0424 |
| Delivery Mechanism | Continuous Flow Only |
| Flow Setting Scope | 2.0 to 10.0 Liters Per Minute (LPM) |
| Oxygen Output Concentration | 90% (+5% / -3%) at full 10 LPM |
| Outlet Pressure Level | 15.0 PSI (1.03 BAR) |
| Power Drive Configuration | 115V AC / 60 Hz |
| Average Power Consumption | 600 Watts |
| Net Hardware Weight | 54.5 lbs (24.7 kg) |
| Physical Dimensions | 15.6" W x 15.5" D x 27.8" H |
| Country of Manufacture | Made in the United States |
| Compliance & Tax Tier | FDA Registered / FSA & HSA Eligible |
Important Product Characteristics
- Intelligent Multi-Point Diagnostics: Backed by an internal 9V battery system that instantly triggers loud audible and visible LED alarms for power cuts, low oxygen concentration, high system pressure, or internal thermal overloads.
- Tool-Free Rear Access Hatch: Simplifies routine maintenance by positioning the primary compressor intake filter and the mechanical running-hour tracking screen behind an easily accessible back panel.
- Application Notice: The Nuvo 10 is a high-capacity Class II prescription medical device. It must be operated and configured according to the exact prescription parameters provided by a licensed physician and is not built as a primary standalone life-support system.
Frequently Asked Questions (FAQ)
What is the structural difference between the Nuvo 8 (Model 585) and the Nuvo 10 (Model 595)?
While both models utilize the same heavy-duty outer cabinet shell and weigh nearly the same (roughly 54 lbs), their internal processing capacities differ. The Nuvo 8 is calibrated to max out at 8 LPM with a 17 PSI line pressure, whereas the Nuvo 10 features larger internal molecular sieve volumes and an expanded compressor layout designed to deliver a full 10 LPM flow rate at a steady 15 PSI line pressure.
How does the built-in OCSI sensor function to protect the user?
OCSI stands for Oxygen Concentration Status Indicator. This factory-installed safety sensor continuously monitors the active chemical purity of the oxygen being produced by the sieve beds. If the purity level drops below safe therapeutic thresholds, the front interface will instantly switch from a solid green light to a flashing visual alarm accompanied by an audible warning tone.
How often do the equipment filters need to be serviced?
The black foam cabinet filter on the exterior should be pulled out and washed with mild dish soap and warm water once a week, then allowed to air-dry completely before reinsertion. The internal compressor intake filter behind the rear hatch should be completely replaced every 12 months.
Can I plug this unit into a standard household surge protector or power strip?
No. Because the Nuvo 10 draws a continuous 600 Watts, it should always be plugged directly into a dedicated standard wall outlet. Running high-wattage medical machinery through consumer power strips or lightweight extension cords can cause significant voltage drops, which will trip the unit's onboard circuit breaker or cause the compressor to overheat.
Compliance Standard:
FDA Class II Medical Device Regulations (21 CFR Part 807)
To ensure strict compliance with current FDA regulations, EnhDme enforces a rigorous prescription verification policy for specific restricted medical devices. Because federal law restricts these devices to sale by or on the order of a licensed healthcare provider, orders containing prescription-regulated equipment will remain on a compliance hold and will not be dispensed until a valid prescription is successfully received and verified by our compliance team.
