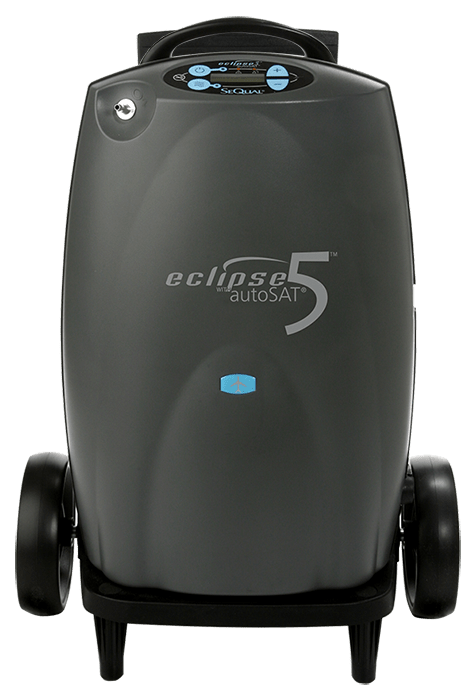

SeQual Eclipse 5 Portable Oxygen Concentrator
CAIRE SeQual Eclipse 5 Portable Oxygen Concentrator (6900-SEQ)
Overview
The CAIRE SeQual Eclipse 5 is a transportable oxygen concentrator that delivers both continuous flow (up to 3 LPM) and pulse dose (settings 1–9) in a single device — effectively two machines in one. With the push of a button you can switch modes or adjust the rate, and CAIRE's autoSAT technology works like cruise control, automatically adjusting oxygen output to keep up with your breathing rate as your activity changes. It's built for 24/7 use, whether stationary at home or on the move.

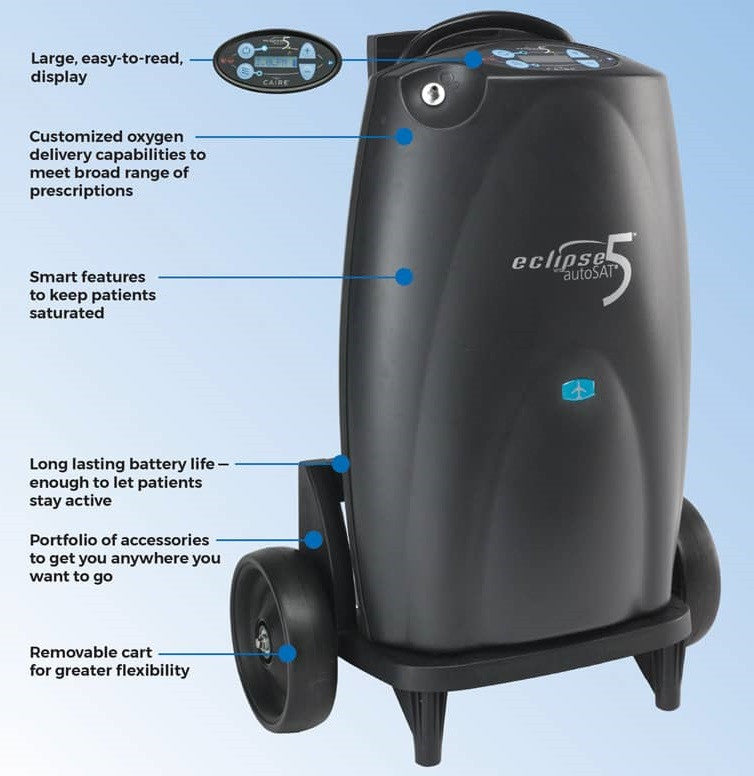

Designed for an active, on-the-go lifestyle, the Eclipse 5 runs on AC power, a DC car adapter, or a rechargeable battery cartridge — and it can run and recharge in the car at the same time. A telescoping travel cart with oversized wheels makes it easy to take along, the user-replaceable battery cartridge swaps out in seconds for extended time away from an outlet, and an easy-to-read LCD shows your setting in LPM or mL. It's also one of the lightest concentrators capable of 3 LPM continuous flow.
Key Features
- Two delivery modes in one unit — continuous flow (0.5–3.0 LPM) and pulse dose (settings 1–9, up to a 192 mL bolus).
- autoSAT technology automatically adjusts oxygen output to your breathing rate.
- UltraSense breath detection with adjustable rise time and trigger sensitivity for consistent delivery.
- 24/7 capable — works as a stationary unit at home and a transportable unit on the go.
- Runs on AC power, DC car adapter, or rechargeable battery; recharges in the car while in use.
- User-replaceable power cartridge — swap batteries on the go instead of waiting to recharge.
- FAA-approved for commercial air travel (battery well under the 160 Wh limit).
- Quiet operation — 40 dBA at pulse setting 3.0, 48 dBA at 3 LPM continuous.
- Telescoping travel cart with oversized wheels included.
- Easy-to-read LCD display (LPM or mL).
- 3-year warranty on the concentrator and sieve beds; 1-year on the battery.
The standout here is that it covers both continuous flow and high pulse-dose settings in one unit — many portable concentrators do pulse dose only, so the Eclipse 5 suits a much wider range of oxygen needs, including steady overnight use. autoSAT keeps the set dose consistent as your breathing rate rises and falls, and because it both runs and recharges in the car and is FAA-approved, it's a genuine travel and 24/7 solution rather than a short-trip device. Battery time depends on the setting — longest on lower pulse settings, shorter at high continuous flow — and spare cartridges extend your time away from power. As with any oxygen equipment, a valid prescription is required and the flow settings should match it.
Technical Specifications
- TypePortable oxygen concentrator
- BrandCAIRE SeQual Eclipse 5
- Model6900-SEQ
- Delivery ModesContinuous flow + pulse dose
- Continuous Flow0.5–3.0 LPM (0.5 increments)
- Pulse DoseSettings 1–9 (up to 192 mL)
- Oxygen Purity90% (+5.5 / -3%)
- Battery Life~5.2 hrs (pulse 2) / ~2 hrs (2 LPM cont.)
- Charge Time2–5 hours
- PowerAC 100–240V; DC 12V; battery
- Sound Level40 dBA (pulse 3.0) / 48 dBA (3 LPM cont.)
- Weight15 lbs (18.4 lbs with battery)
- Dimensions19.3" H x 12.3" W x 7.1" D
- Max Altitude13,123 ft (4,000 m)
- Air TravelFAA-approved
- IncludesConcentrator, battery, AC/DC adapters, travel cart, accessory bag
- Warranty3-year (unit + sieve), 1-year battery
What's the difference between continuous flow and pulse dose — can it do both?
Yes, both are built into the one unit. Continuous flow delivers a steady stream of oxygen (0.5–3.0 LPM), which is often used for overnight and higher-demand needs. Pulse dose delivers a measured bolus with each breath (settings 1–9). You can switch between modes from the control panel.
Can I fly with it or use it in the car?
It's FAA-approved for commercial air travel, with a battery cartridge well under the 160 Wh limit — always confirm your airline's policy in advance. In the car it runs on the DC adapter and can recharge while in use at continuous flows up to 2 LPM and all pulse settings.
How long does the battery last?
About 5.2 hours at pulse setting 2 and roughly 2 hours at 2 LPM continuous flow, with the exact time depending on your setting. The power cartridge is user-replaceable, so you can swap in a charged spare on the go to extend your time away from an outlet.
A valid prescription is required for this device. Specifications and included contents are provided for reference and may be updated by the manufacturer without notice. Verify settings, contents, and prescription requirements against the product documentation before use.
This item requires an Rx or Professional License
Compliance Standard: FDA Class II Medical Device Regulations (21 CFR Part 807)
To ensure strict compliance with current Food and Drug Administration (FDA) regulations, EnhDme enforces a rigorous prescription verification policy for specific restricted medical devices. Because federal law restricts these devices to sale by or on the order of a licensed healthcare provider, orders containing prescription-regulated equipment will remain on a compliance hold and will not be dispensed until a valid prescription is successfully received and verified by our compliance team.
