Charder MHS 2500 Patient Lift Scale - 660 lb (300 kg)
Model: Charder MHS 2500 Lift Scale, 300 kg (70100002)
Availability: In Stock – Ready to Ship
A Hanging Lift Scale That Weighs the User During a Routine Lift

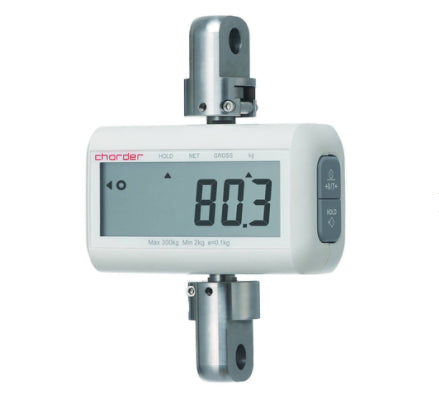

The Charder MHS 2500 is a digital hanging scale that fits between the lift arm and the sling bar of a patient lift. Once fitted, the user can be weighed while in the sling during a normal transfer, with no separate scale and no need to stand. It weighs up to 660 lbs (300 kg) in 0.1 kg steps, with a minimum load of 2 kg, and shows the result on a 1-inch, 5½-digit display.
Three functions cover everyday weighing. Zero resets the reading, Tare subtracts a known load such as the sling or clothing to give the net weight, and Hold takes several readings, checks that they agree and locks the result on the display, so the caregiver can read it after the user settles. The scale runs on six AAA batteries with a low-battery warning and a settable auto-off, and it is compact at 4.7 × 2.0 × 6.3 inches. It fits a range of Handicare mobile and ceiling lifts, listed below.
Key Features
- Weighs in the sling — fits between the lift arm and the sling bar
- 660 lb (300 kg) capacity — 0.1 kg graduation; 2 kg minimum
- Hold function — checks the reading is steady and locks it on the display
- Tare and Zero — subtract the sling or clothing for a net weight
- 1-inch, 5½-digit display
- Runs on six AAA batteries — with a low-battery warning
- Settable auto-off — 120 to 300 seconds, or off
- Compact — 4.7 × 2.0 × 6.3″ (120 × 50 × 160 mm)
- Two-year manufacturer warranty
Equipment Specialist Insight: Fit the scale between the lift arm and the sling bar, and check that the lift’s hanger bar can swivel a full 360°; the scale is not recommended for lifts where it cannot. For an accurate reading, weigh on a flat, hard floor rather than carpet, keep the lift still, and make sure the user is hanging freely and not leaning on anything, since a tilt of more than 3° gives a false reading. Use Tare with the empty sling attached to weigh the user alone. The display reads in kilograms only. Check its accuracy at regular intervals, and contact us if readings seem off.
Technical Specifications
| Brand | Charder (Handicare) |
| Model | MHS 2500 |
| Item Number | 70100002 |
| Capacity | 660 lbs (300 kg) |
| Graduation | 0.1 kg |
| Minimum Load | 2 kg |
| Display | 1.0″, 5½ digits |
| Weight Unit | Kilograms |
| Functions | Zero, Tare/Net, Hold |
| Auto-Off | 120, 180, 240 or 300 seconds, or off |
| Power | Six 1.5 V AAA alkaline batteries |
| Dimensions | 4.7 × 2.0 × 6.3″ (120 × 50 × 160 mm) |
| Operating Temperature | 32–104°F (0–40°C); indoor use |
| Compatible Lifts | Handicare RiseBasic, RiseAtlas450, RiseAtlas625, Carina350, Eva models, Vega505EE, Rino600EE |
| Warranty | 2 years from date of purchase |
Frequently Asked Questions
Which lifts does it fit?
It is listed for the Handicare RiseBasic, RiseAtlas450, RiseAtlas625, all Carina350 and Eva models, Vega505EE and Rino600EE. It hangs between the lift arm and the sling bar. It is not recommended for lifts where the hanger bar cannot swivel 360°.
Can it show pounds?
No. The MHS 2500 displays kilograms only. Multiply by 2.2046 to convert to pounds.
How do I get an accurate weight?
Weigh on a flat, hard floor, keep the lift still, and let the user hang freely without leaning on anything. Use Tare with the empty sling attached to subtract its weight.
How do I clean it?
Switch it off and wipe it with an alcohol-based wipe. Don’t use large amounts of water, corrosive liquids or a pressure washer.
Specifications are compiled from manufacturer and vendor documentation and are subject to change without notice. Verify current details before purchase. Information on this page is for general reference only and is not a substitute for professional medical advice. Install and use the scale following the manufacturer’s instructions and the instructions for your patient lift.
