ProActive Medical Chariot IV K4 Wheelchair with Elevating Leg Rests
The Chariot IV K4 Series is ProActive Medical's specialized entry into the High-Strength Lightweight Wheelchair classification. Built on an optimized aluminum and carbon steel hybrid frame, this platform sheds significant weight against traditional K1–K3 models, making the chair far easier for independent users to propel, lift, and load for transport.

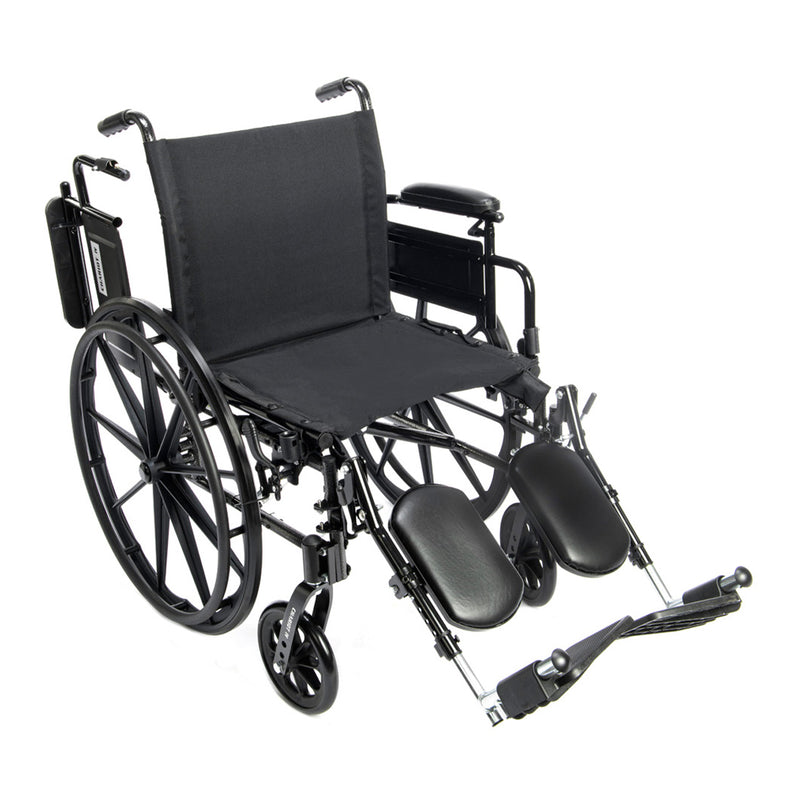

This configuration pairs that lightweight frame with Removable, Adjustable-Height, Flip-Back Desk Arms for custom torso alignment and clean lateral roll-ins at desks and tables. Its defining feature is the set of articulating Elevating Leg Rests (ELR), which raise, extend, and support the lower legs — ideal for users managing edema, post-surgical recovery, casting, or limited knee flexion. A built-in telescoping seat rail extension adjusts seat depth from 16" to 18" on the fly, while breathable nylon upholstery, rear anti-tippers, and flat-free urethane tires on composite mag wheels round out a customizable, high-end independent mobility solution for your catalog.
Master Variant SKU & GTIN Matrix
| Model / MPN | Seat Width | Armrest Style | Legrest Rigging Style | GTIN / UPC # | Weight Capacity |
|---|---|---|---|---|---|
| WCK416AHDAELR | 16 Inches | Adj-Height Flip-Back Desk | Elevating Leg Rests | 5060488575556 | 300 lbs (136 kg) |
| WCK418AHDAELR | 18 Inches | Adj-Height Flip-Back Desk | Elevating Leg Rests | 5060488575570 | 300 lbs (136 kg) |
| WCK420AHDAELR | 20 Inches | Adj-Height Flip-Back Desk | Elevating Leg Rests | 5060488575594 | 300 lbs (136 kg) |
Core Technical Specifications
| Equipment Parameter | Certified Performance Metric |
|---|---|
| Manufacturer / Brand | ProActive Medical |
| HCPCS Billing Code | K0004 (High-Strength Lightweight Wheelchair Frame); E0990 (elevating leg rests) |
| Armrest Hardware | Removable, height-adjustable (AH) arms with a dual-stage rearward flip-back mechanism |
| Front Rigging | Tool-free elevating leg rests with padded calf supports and an articulating range of motion |
| Seat Frame Adjustment | Telescoping frame rails: easily expands seat depth from 16" to 18" |
| Upholstery | Lightweight, flame-retardant breathable black nylon |
| Safety Inclusions | Rear frame-mounted adjustable anti-tippers included standard |
| Wheels & Casters | 8" solid front casters paired with 24" flat-free composite mag wheels |
