Drive Hydraulic Patient Lift – 450 lb Capacity

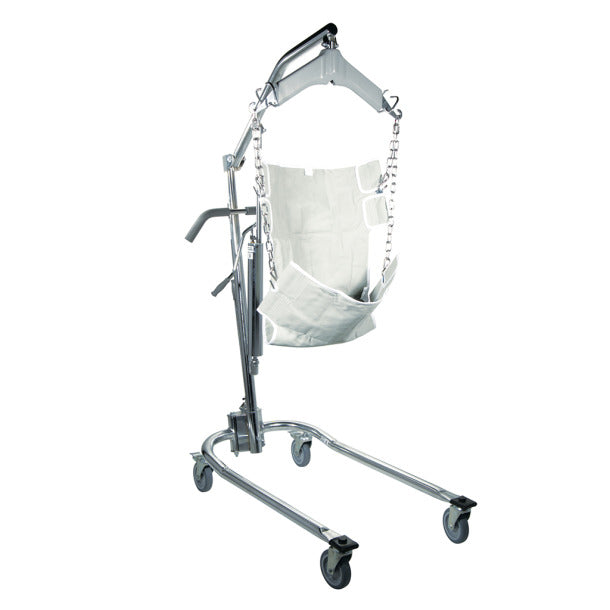

Drive Medical Hydraulic Patient Lift — Chrome-Plated Steel (Model 13023)
Heavy-Duty Manual Patient Elevation Architecture with 450 lb Capacity, Chrome-Plated Steel Frame, High-Performance Hydraulics, 24″ to 81″ Boom Range, 6-Point Swivel Cradle, and Included Sling Chains
The Drive Medical Hydraulic Patient Lift (Model: 13023) combines heavy-duty construction, smooth hydraulic operation, and a versatile 6-point swivel cradle for safe, comfortable patient transfers. Built with a heavy-gauge chrome-plated steel frame, this manual full-body lift supports weight capacities up to 450 lbs, delivering long-lasting performance across both homecare and clinical environments.
Engineered for gradual and controlled vertical movement, the lift's high-performance hydraulic fluid cylinder allows caregivers to raise and lower individuals safely with minimal physical effort. Featuring an expansive boom height range from 24 inches to 81 inches, it handles everyday bedside transitions as well as emergency floor recoveries. The adjustable-width base narrows to 22.5 inches to clear narrow doorways and expands to 42 inches to roll smoothly around wide armchairs. Complete with easy-to-operate rear-locking caster brakes and included sling chains, the Drive 13023 arrives ready for deployment right out of the box.
Key Features & Benefits
- 450 lb Weight Capacity: Heavy-duty steel frame supports a wide range of patients safely and comfortably.
- Heavy-Duty Chrome-Plated Steel: Premium chrome finish resists corrosion and wear, ensuring exceptional structural durability.
- High-Performance Hydraulics: Manual hydraulic pump allows gradual, smooth, and safe vertical elevation without electrical power.
- 6-Point Swivel Cradle: Spreads sling weight evenly to maximize user comfort and accommodates 2-point, 4-point, and 6-point strap slings as well as sling chains.
- Broad 24″ to 81″ Elevation Trajectory: Generous vertical range facilitates floor-level recovery lifts as well as transfers to high-profile beds.
- Adjustable Width Base: Base legs adjust from 22.5″ closed to 42″ open to navigate tight doorways and wide seating effortlessly.
- Includes Sling Chains: Outfitted with high-strength sling chains for immediate operational readiness right out of the box.
Patient Transfer Specialist Insight: The Drive 13023 is a classic non-electric full-body lift that offers exceptional longevity. Its chrome-plated steel finish stands up to frequent cleaning, while the included sling chains give caregivers maximum flexibility when attaching traditional canvas or mesh transfer slings.
Detailed Technical Specifications
- Brand / ManufacturerDrive Medical
- Model SKU / MPN13023
- Product ClassificationManual Hydraulic Mobile Full Body Patient Lift
- Maximum Weight Capacity450 lbs (204.1 kg)
- Boom Lifting Range24.0″ Minimum to 81.0″ Maximum Elevation
- Base External Width Range22.5″ Closed to 42.0″ Open
- Base Height Clearance6.0 Inches Under-Bed Clearance
- Caster Wheel Size5″ Front & Rear Swivel Casters (Rear with Brakes)
- Frame Material & FinishHeavy-Duty Chrome-Plated Reinforced Steel
- Included AccessoriesHigh-Strength Steel Sling Chains Included
- Manufacturer WarrantyLimited Lifetime (Frame) / 1-Year Limited (Hydraulic Pump)
- Financial EligibilityFSA / HSA Eligible
Frequently Asked Questions
Is a transfer sling included with the Drive 13023 lift?
Sling chains are included with the lift, but the fabric patient sling is sold separately so caregivers can choose the appropriate material and style (such as full-body, mesh commode, or solid canvas) for the user's specific needs.
What is the difference between Model 13023 and Model 13023SV?
Model 13023 features a premium chrome-plated steel finish and includes sling chains. Model 13023SV features a Silver Vein powder-coated steel finish and does not include sling chains.
Can this lift be used during power outages?
Yes. The Drive 13023 operates completely via a manual hydraulic pump cylinder, requiring no electrical power or battery charging.
Manufacturing Data & Safety Compliance
- Brand Catalog Manifest: Drive Medical Manual Patient Handling & Mobility Systems
- Product Presentation: Single Mobile Hydraulic Lift System with Sling Chains (Model: 13023)
- Primary Suitability: Ideal for home healthcare, nursing facilities, hospitals, and rehabilitation units
Disclaimer: Technical metrics, dimensions, and weight ratings on this page are compiled directly from manufacturer data files. Confirm bed clearance and sling compatibility before purchase. Always follow the manufacturer's safety instructions during operation. This product information is not medical advice.
⚠ WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
