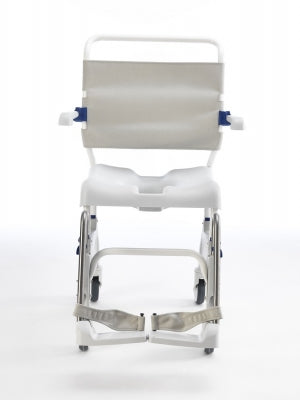

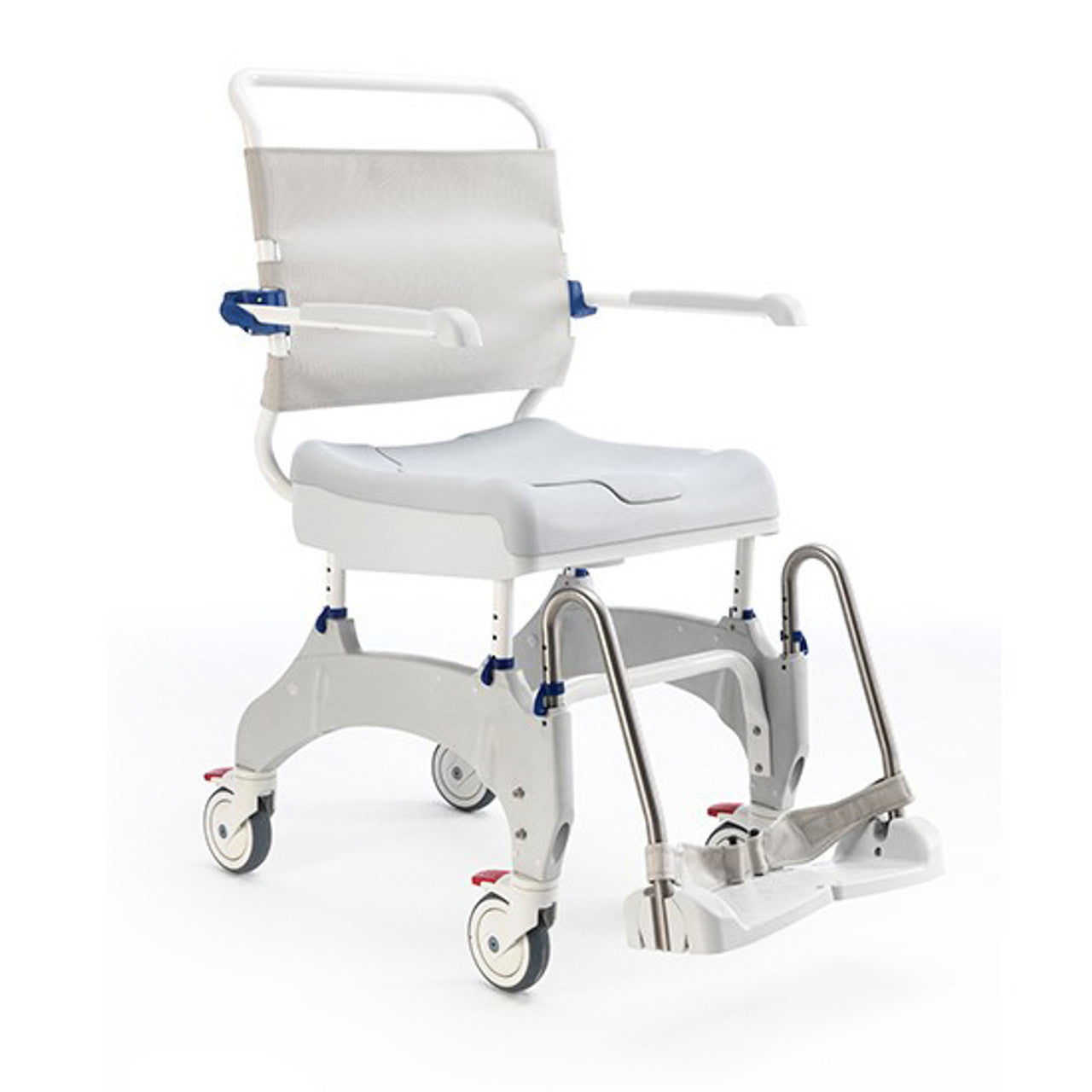

ERGO XL Shower Chair

The Aquatec ERGO XL Shower Chair is built for extra support and stability for larger users. It features the ERGO seating system with a natural 5° forward tilt that promotes an upright sitting position. The redesigned seat shape is based on pressure mapping for a well-fitted, supportive seat surface. Optional overlays provide added cushioning, a solid shower seat, or an adjustable seat opening.

The XL model includes a wider backrest and a weight capacity of up to 400 lbs, with a standard seat width of 18.7". Transfer supports at the front of the seat help users shift into a stable position for showering or toileting.

Built with a corrosion-resistant stainless steel frame, the ERGO XL is durable and easy to maintain. The updated caster design minimizes dirt buildup, and the collection pan system fits securely with a built-in lid hook for easy handling.

The chair offers full adjustability for fit and function. Seat height ranges from 18.5"–23.4", armrests adjust to three levels, and footrests adjust in both height and angle with supportive heel loops. Upholstery is coated nylon, machine washable, with multiple straps to customize seat depth and firmness. The chair disassembles easily for transport or storage.

Compatible with a wide range of ERGO and Ocean line accessories, including seat overlays, positioning supports, calf supports, belts, and comfort back upholstery.

Key Features

• 400 lb weight capacity with wider backrest for XL users
• Ergonomic seat with 5° forward tilt for an upright sitting position
• Pressure-mapped seat shape for a well-fitted seat surface
• Optional overlays: solid seat, cushioning, or adjustable seat opening
• Adjustable seat height: 18.5" – 23.4"
• Adjustable footrests: 11.5" – 22.2" with heel loops
• Adjustable armrests: 8.3", 9.8", or 11.3"
• Corrosion-resistant stainless steel frame
• Smooth-rolling casters designed to reduce dirt buildup
• Machine-washable coated-nylon upholstery with adjustable straps
• Disassembles for transport or storage
• Compatible with ERGO and Ocean line accessories

Specifications

• Length: 41"
• Width: 25.1"
• Height: 40.7" – 45.6"
• Seat Width: 18.7"
• Seat Depth: 18.7"
• Seat Height (floor to seat): 18.5" – 23.4"
• Width Between Arms: 20.8"
• Seat to Footrest: 11.5" – 22.2"
• Weight Capacity: 400 lbs
• Product Weight: 39.7 lbs
• Shipping Weight: 57 lbs
• Material: Stainless steel frame, coated-nylon upholstery
• Color: White
• Assembly Required: Yes
