Forcemech Navigator Pro Power Wheelchair — Heavy-Duty, Folds in One Motion
Heavy-Duty Capacity Meets One-Motion Folding

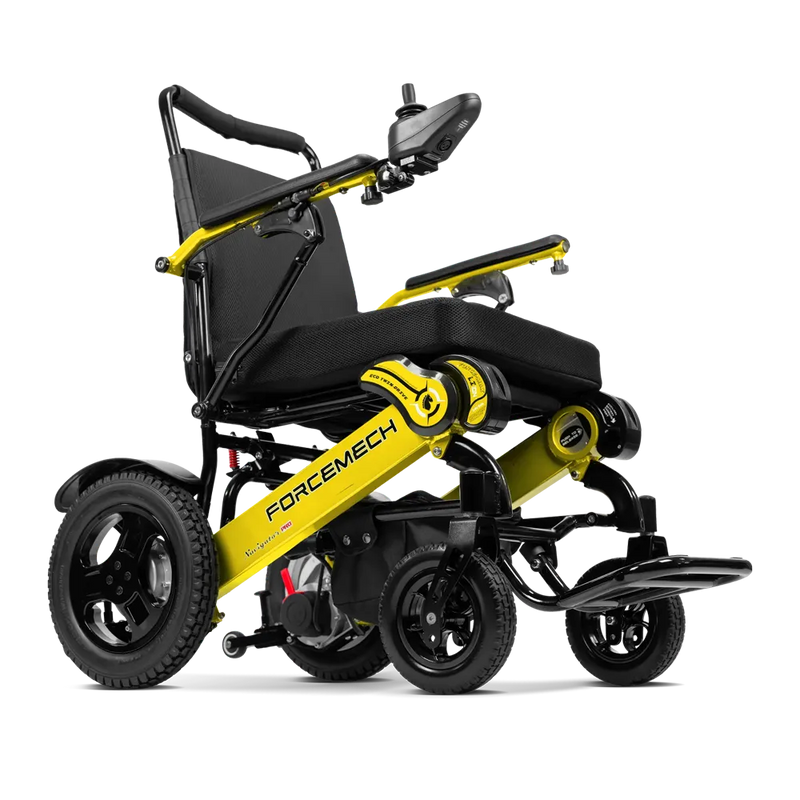

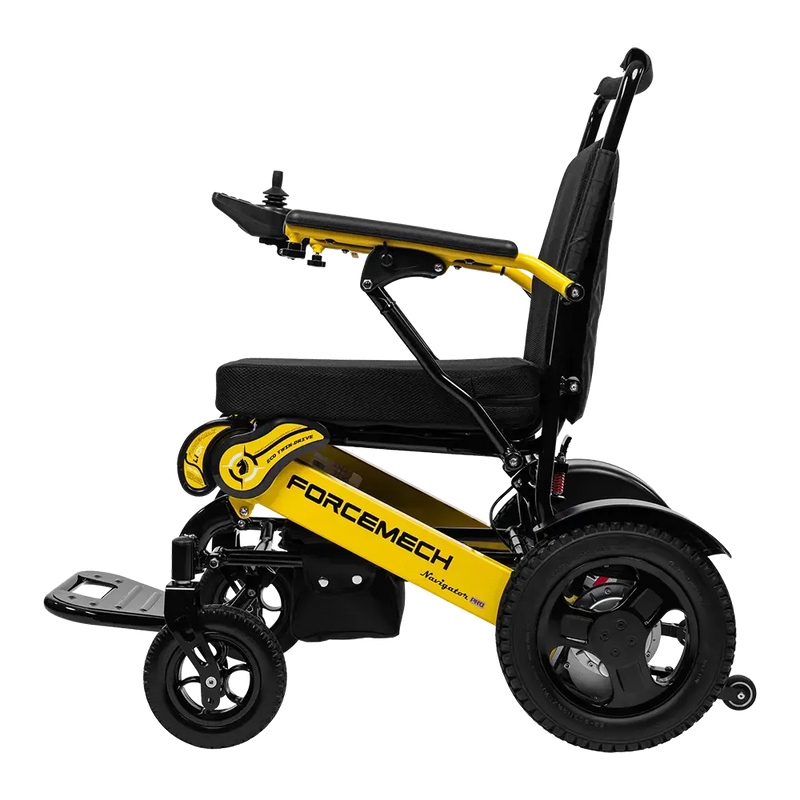

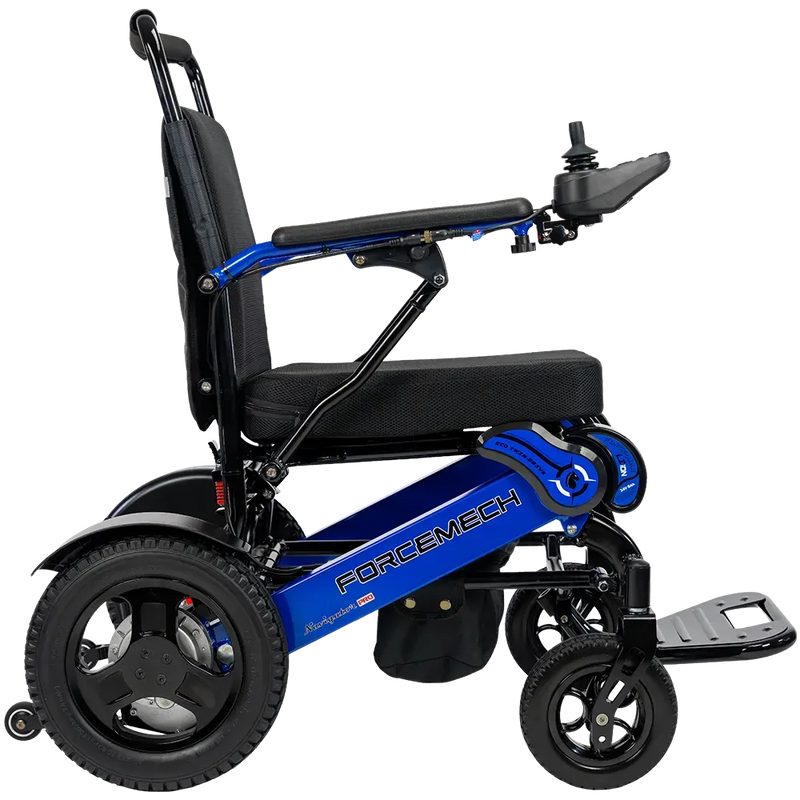

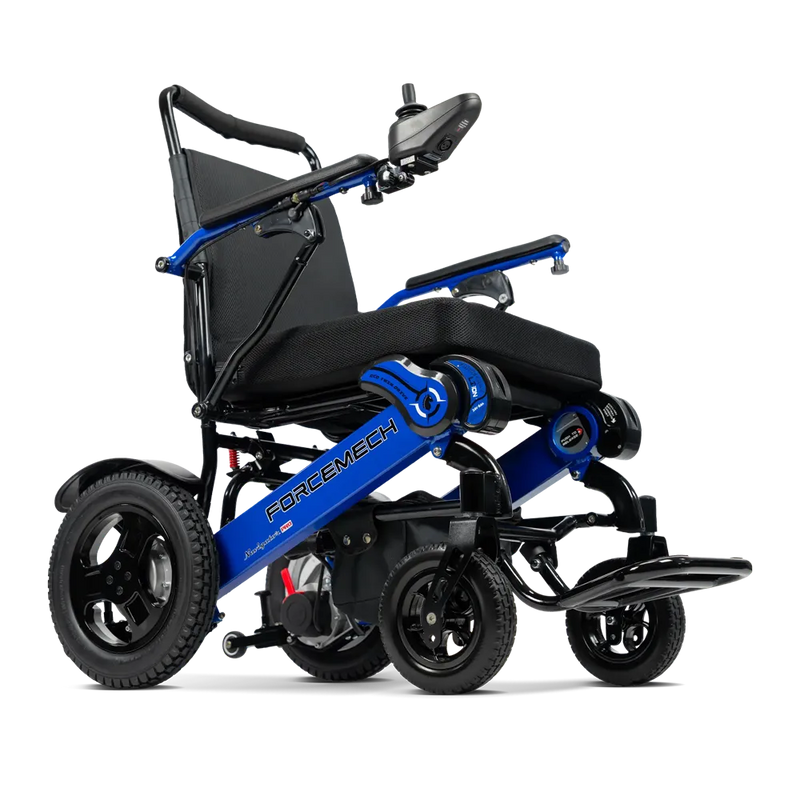

The Forcemech Navigator Pro is a heavy-duty foldable power wheelchair built to support up to 400 lbs without the bulk that capacity usually demands. Dual 250W brushless Eco-Drive motors deliver a 4.5 mph top speed and up to 18 miles of range per charge, powered by dual ForceMax™ Lithium NCM 622 batteries built to travel-friendly capacity.
Despite its heavy-duty rating, the Navigator Pro weighs just 52 lbs without batteries (60–62 lbs with them) and collapses down in a single motion for fast, simple folding — no multi-step breakdown required. A reinforced aluminum alloy frame, intelligent electromagnetic automatic braking, rear anti-tip wheels, and a 4-point suspension frame combine for a stable, controlled ride, riding on flat-free polyurethane wheels (7" front, 12.5" rear) that never need air.
Key Features
- 400 lb Weight Capacity: Heavy-duty support in a genuinely foldable frame.
- Dual 250W Brushless Eco-Drive Motors: 4.5 mph top speed with reliable, efficient power.
- 18-Mile Range: Long travel distance per charge.
- Folds in One Motion: Fast, simple folding without a multi-step breakdown.
- Travel-Friendly Batteries: Lithium battery capacity built for portability.
- 4-Point Suspension & Anti-Tip Wheels: Added stability for a smoother, more secure ride.
- Flat-Free Polyurethane Wheels: 7" front, 12.5" rear — never need air, never go flat.
- Intelligent Electromagnetic Braking: Automatic, confident stopping.
Equipment Specialist Insight: The Navigator Pro's real achievement is packing a 400 lb capacity into a chair that still folds in one motion and comes in under 65 lbs with batteries installed — heavy-duty power chairs are usually heavier and more cumbersome to break down than this. The 4-point suspension and anti-tip wheels matter more as capacity rises, since a heavier-duty chair needs more stability engineering to stay controlled at speed and on turns. The flat-free polyurethane wheels are worth calling out specifically: no air to check, no punctures to worry about. Note that the manufacturer's own capacity figures vary slightly across sources (397 lbs vs. 400 lbs) — treat 400 lbs as the marketed ceiling and confirm the precise rated figure with Forcemech if you're purchasing at or near that limit.
Technical Specifications
| Model | Forcemech Navigator Pro |
| Weight Capacity | Up to 400 lbs |
| Top Speed | 4.5 mph |
| Driving Range | Up to 18 miles per charge |
| Climbing Slope | Up to 12° |
| Turning Radius | 33" |
| Ground Clearance | 3.5" |

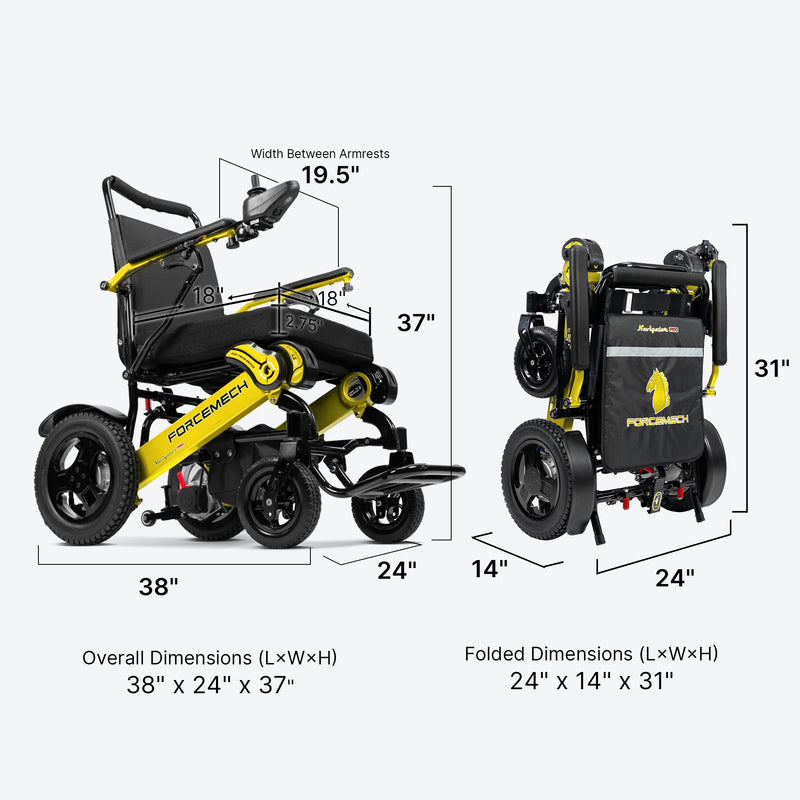

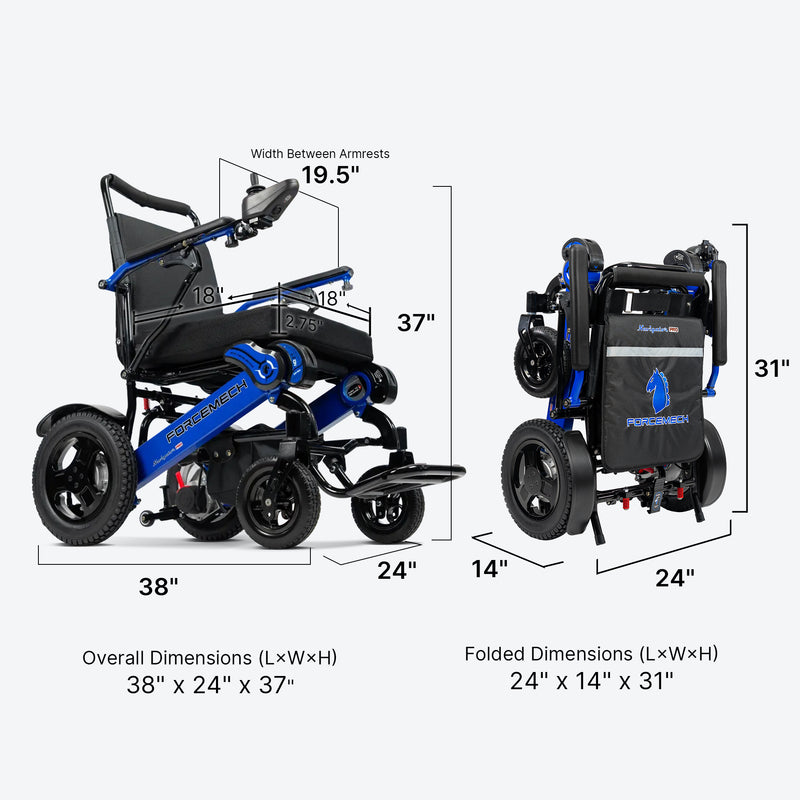

| Unfolded Dimensions | 38" x 24"–25" x 37" |
| Folded Dimensions | 24"–25" x 14" x 31" |
| Chair Weight | 52 lbs (no batteries) / 60–62 lbs (with batteries) |
| Seat Size | 18" x 18" x 2.75" |
| Motors | Dual 250W Brushless Eco-Drive |
| Battery | Dual ForceMax™ Lithium NCM 622, 24V 6.6Ah x2 |
| Frame | Reinforced Aluminum Alloy |
| Brakes | Intelligent Electromagnetic, Automatic |
| Stability | Rear Anti-Tip Wheels, 4-Point Suspension Frame |
| Wheels | Flat-Free Polyurethane, 7" Front / 12.5" Rear |

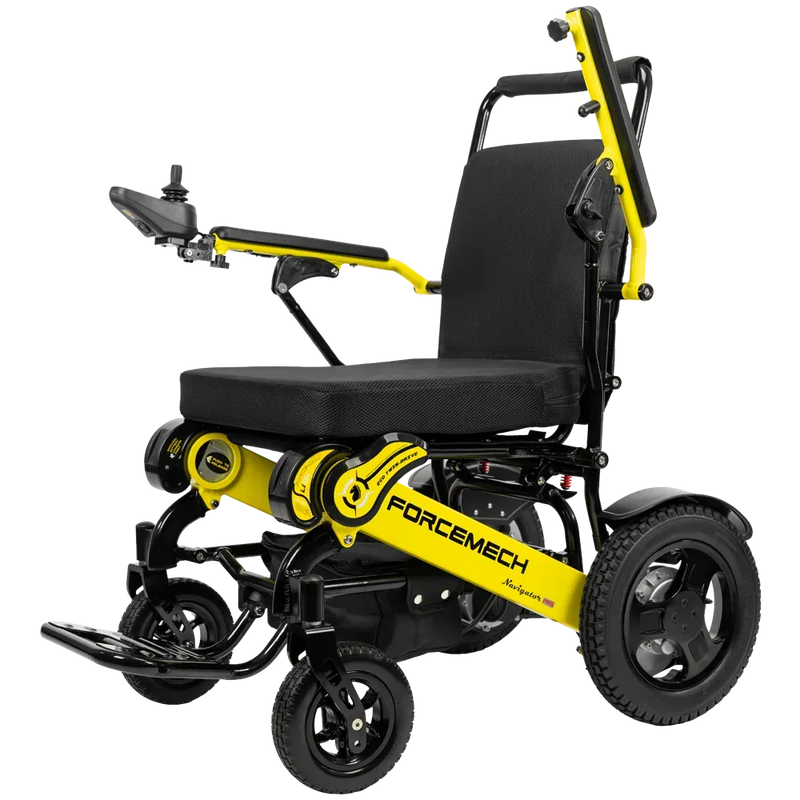

| Color Options | Yellow or Blue |
Frequently Asked Questions
Q: How does the one-motion fold work?

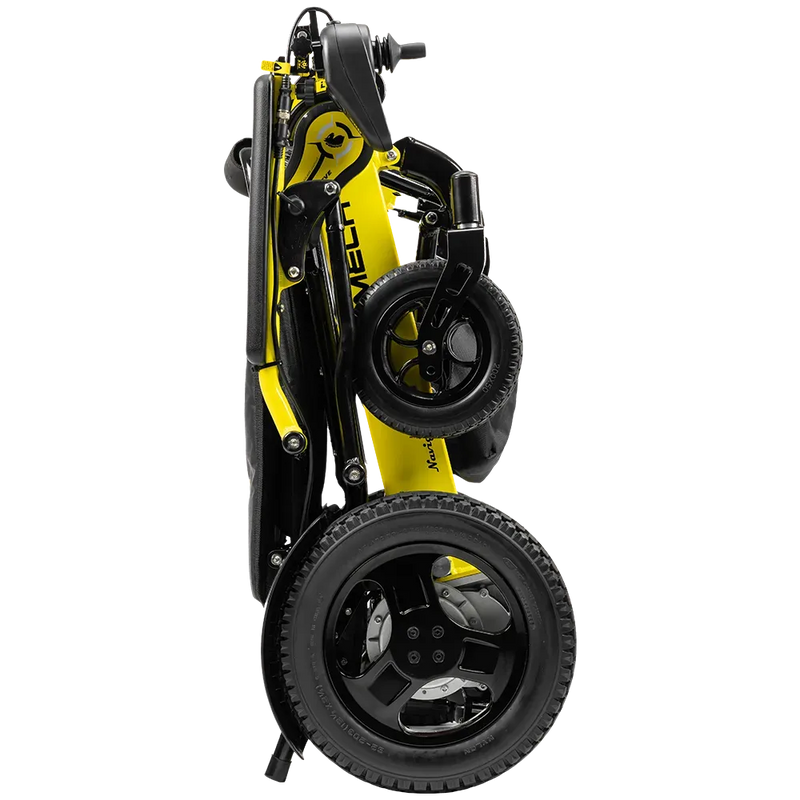

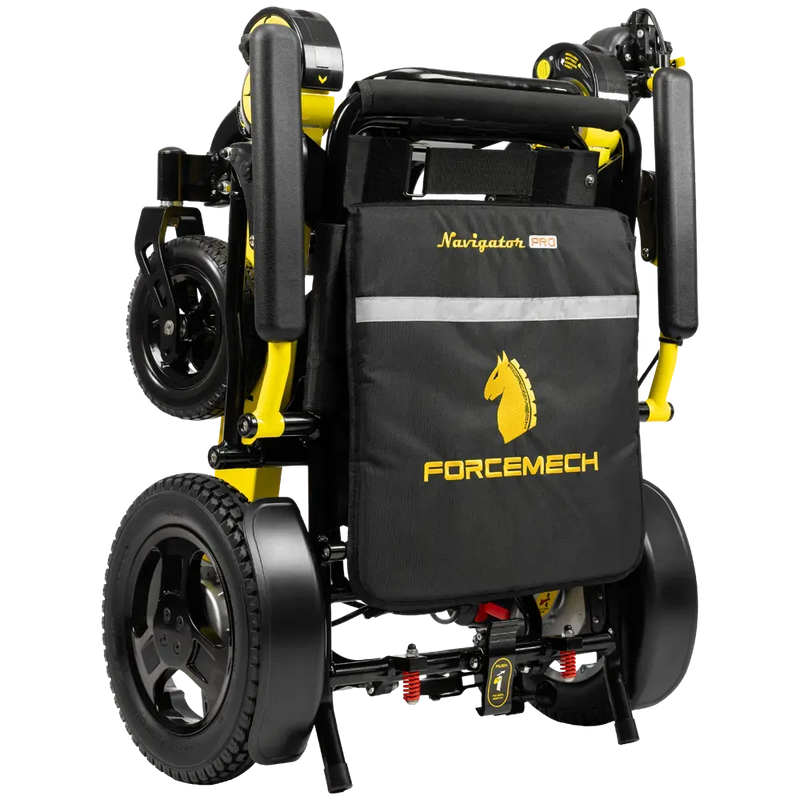

A: The Navigator Pro collapses with a single folding action rather than requiring separate steps to remove and stow components, so breaking it down for a car trunk or storage is fast and straightforward — a meaningful advantage for a chair rated to this weight capacity.
Q: Are the wheels pneumatic or solid?
A: Solid, flat-free polyurethane — 7" in front and 12.5" in the rear. There's no air to check or lose, and no risk of a flat tire.
Q: Can I bring the batteries on a flight?
A: The dual ForceMax™ lithium batteries are built to travel-friendly capacity. As with any lithium-battery mobility device, confirm your specific airline's current battery documentation requirements before travel, since carrier policies can vary.
Specifications are provided by the manufacturer and are subject to change; verify current specifications, exact weight capacity, and included accessories with Forcemech before purchase. Do not exceed the rated weight capacity. This listing is provided for general informational purposes and is not a substitute for professional medical advice; consult a physician or physical therapist about the right mobility equipment for your needs.
