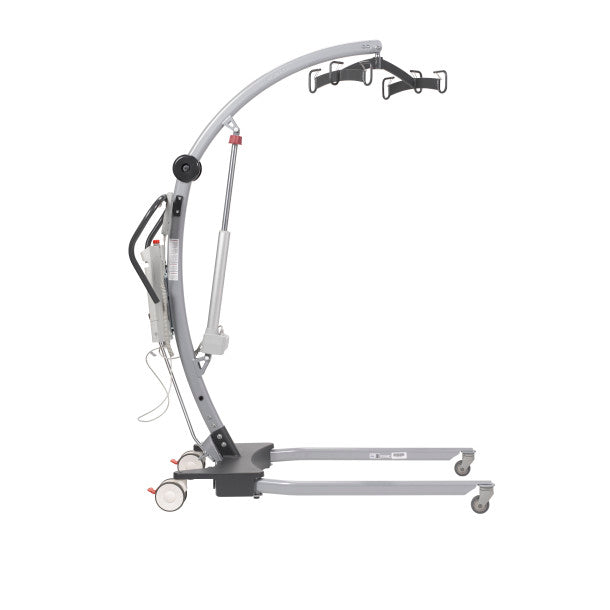

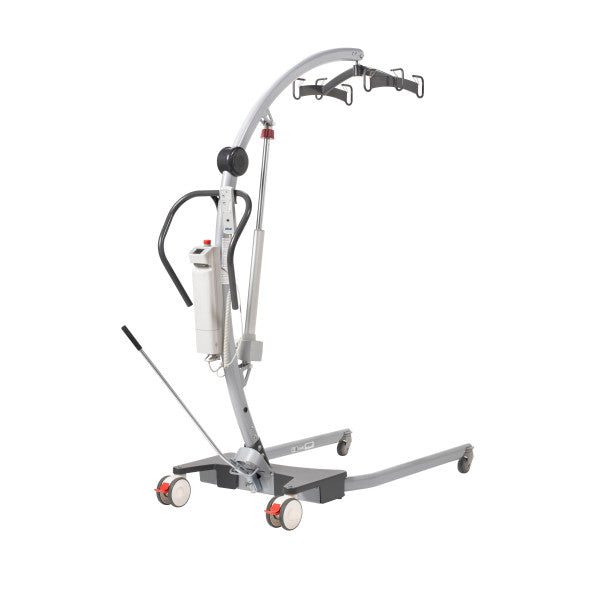

Drive GRAVIS Floor Power Lift – Manual Base, 600 lb Capacity

The Drive GRAVIS Floor Lift (FLNP600) is a high-capacity bariatric floor lift with a 600 lb weight capacity and a lifting range of 33" to 76". The manual adjustable base widens to navigate around furniture and narrows for passage through standard doorways. The arched mast design provides increased swing clearance, keeping legs and knees away from the equipment during use.

The six-point cradle with spring clips provides a wider footprint to minimize sling squeeze. An intelligent LCD module monitors lift cycles and maintenance intervals, with visual and audible alerts for low battery and weight overload. An automatic stop feature halts the boom arm if an obstruction is detected. Includes a 24V rechargeable battery with external charger stand.

Key Features

• 600 lb Weight Capacity: Reinforced steel construction for heavy-duty bariatric transfers.

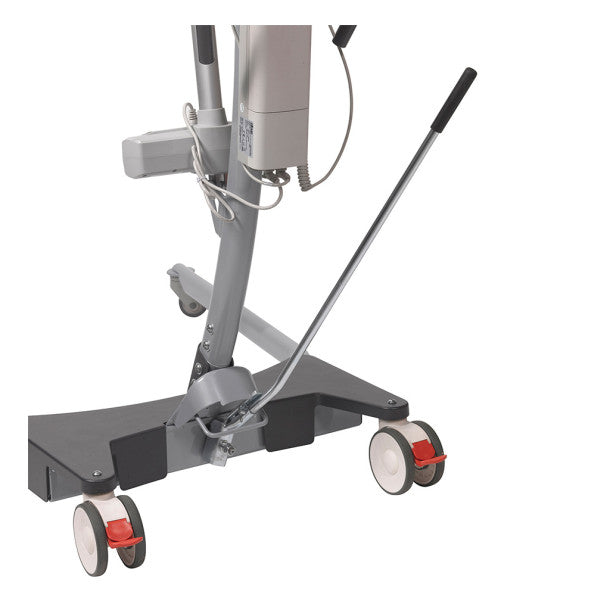

• Manual Adjustable Base: Manually widened via handle to accommodate various transfer environments.
• 33–76" Lifting Range: Floor-to-surface transfers across a wide height range.

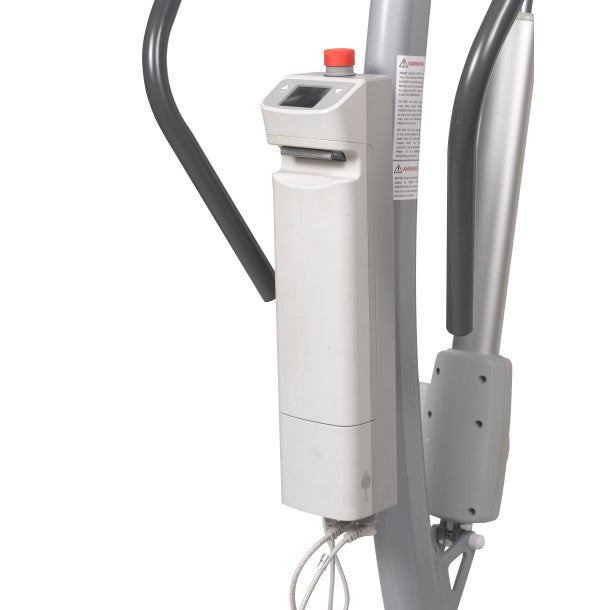

• Intelligent LCD Module: Tracks usage cycles and provides months-since-service alerts.

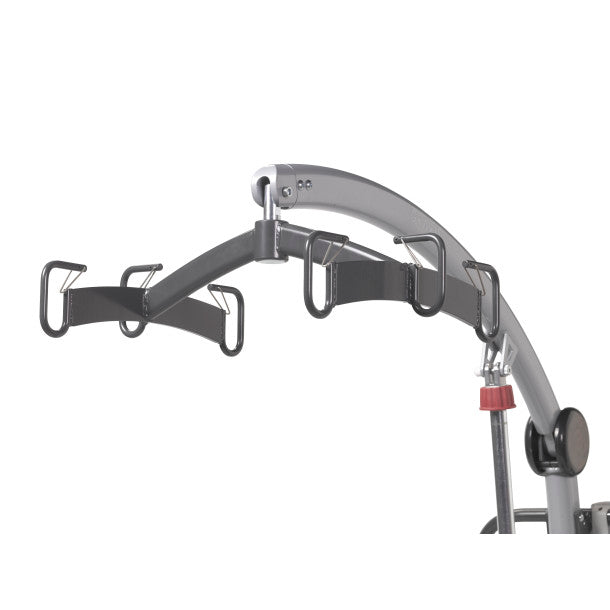

• Six-Point Cradle: Wide footprint for stability; compatible with a variety of slings.
• Redundant Control System: Mast-mounted controls available if hand pendant is unavailable.
• Automatic Stop: Sensors halt boom movement when an obstruction is detected.
• 24V Rechargeable Battery: Includes external charger stand.
