Handicare Carina350 EM/EE Foldable Floor Lift - 350 lb
Model: Carina350 EM / EE Foldable Floor Lift (4 versions)
Availability: In Stock – Ready to Ship
A Compact, Foldable Electric Floor Lift That Sets Up Without Tools
The Handicare Carina350 is a narrow, compact electric floor lift that folds for transport and storage and sets up in a few simple steps, without tools or loose parts. It is rated to 350 lbs (160 kg) and lifts across a wide range, from 22.8 to 66.1 inches, so it handles low and high lifts in both seated and lying positions. An electric actuator raises and lowers the boom from a hand control on a coiled cable, and the lift ships folded. Folded, it stands just 16.8 inches high and 47.9 inches long.

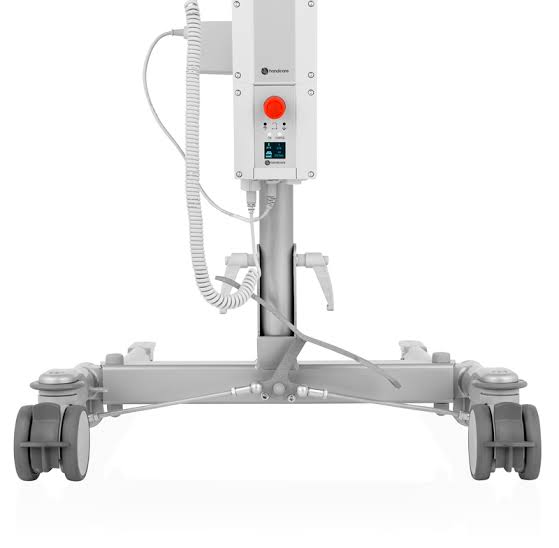

Choose the base that suits the room: the EM widens its base by hand, while the EE widens it electrically from the hand control. Both open from 26.8 to 42.5 inches outside (22 to 37 inches inside the legs), and both come with standard or low legs for beds and furniture with little clearance underneath. The two-point SlingBar M is 17.7 inches wide, with safety latches that keep sling straps from slipping out. The lift has an emergency stop on the control box, manual and electrical emergency lowering, a 2.9 Ah battery with built-in charging, encapsulated maintenance-free twin casters and IPX4 protection. It weighs about 76 lbs (EM) or 78 lbs (EE).
Key Features

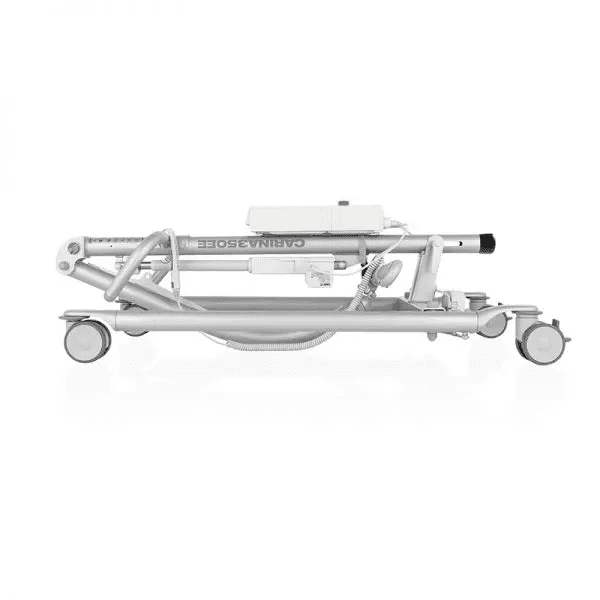

- Folds without tools — 16.8″ high and 47.9″ long when folded
- 350 lb (160 kg) weight capacity
- Wide lift range — 22.8–66.1″, seated or lying lifts
- EM: manual base widening
- EE: electrical base widening — from the hand control
- Standard or low legs

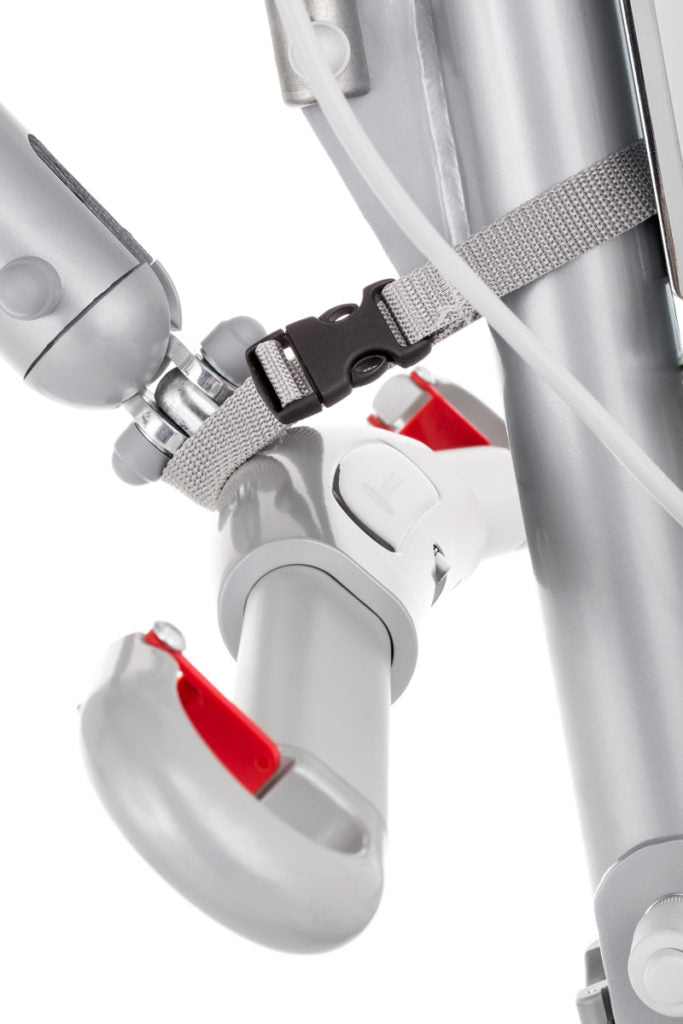

- Two-point SlingBar M — 17.7″ wide, with safety latches
- Emergency stop and manual or electrical emergency lowering
- 2.9 Ah battery with built-in charging
- Encapsulated twin casters — maintenance-free
- IPX4 protection
Delivery and Setup Options
Choose how you would like your Carina350 delivered when you order:
- Dock-to-dock delivery — delivered to your business or facility loading dock. A loading dock is required.
- Curbside delivery to your home or business — arrives on a liftgate truck and is lowered to the curb.
- White glove setup — if you would like help with unpacking and setup, see our White Glove Setup Service.
Equipment Specialist Insight: The EE is worth it when the base is opened and closed often, or when the caregiver should not be bending to the legs; otherwise the EM does the same job for less. Choose low legs if the bed, recliner or furniture sits close to the floor, and measure the clearance before ordering. Because the Carina350 folds without tools, it suits homes with limited storage and families who take a lift when visiting. Choose a two-point sling sized for the user; slings are sold separately, and wider sling bars, a four-point bar, a stretcher bar and a scale are available as accessories.
Technical Specifications
| Brand | Handicare |
| Model | Carina350 EM / EE |
| 60600011 | Carina350EM, standard legs |
| 60600012 | Carina350EM, low legs |
| 60600009 | Carina350EE, standard legs |
| 60600014 | Carina350EE, low legs |
| Safe Working Load | 350 lbs (160 kg) |
| Base Widening | EM manual; EE electrical |
| Base Length | 45.3″ (1150 mm) |
| Base Width, Outer | 26.8–42.5″ (680–1080 mm) |
| Base Width, Inner | 22.0–37.0″ (560–940 mm) |
| Height | 50.8–72.4″ (1290–1840 mm) |
| Lifting Range | 22.8–66.1″ (580–1680 mm) |
| Lifting Speed (no load) | 0.9 in/s (23 mm/s) |
| Folded Size | 16.8″ high; 47.9″ long; 25.3″ wide |
| Sling Bar | SlingBar M, two-point aluminum, 17.7″ (450 mm), with safety latches |
| Weight | About 76 lbs (EM); 78 lbs (EE) |
| Material | Powder-coated steel; aluminum sling bar |
| Battery | 2.9 Ah; built-in charging |
| Safety | Emergency stop on control box; manual and electrical emergency lowering |
| Casters | Encapsulated twin casters, 100 mm rear |
| Protection Class | IPX4 |
| Slings | Sold separately |
Frequently Asked Questions
What is the difference between the EM and the EE?
The EM widens its base by hand. The EE widens it electrically from the hand control. Everything else is the same.
What are low legs for?
Low legs fit under beds, recliners and furniture with little clearance. Measure the clearance before ordering.
Does it need tools to set up or fold?
No. It folds and sets up in a few steps without tools or loose parts, and folds to 16.8″ high for storage or transport.
What slings work with it?
Slings for a two-point sling bar. Slings are sold separately; other sling bars and a scale are available as accessories.
Specifications are compiled from manufacturer and vendor documentation and are subject to change without notice. Verify current details before purchase. Information on this page is for general reference only and is not a substitute for professional medical advice. Patient lifts should be operated by trained caregivers; consult a healthcare provider or therapist for sling selection and transfer technique, and follow the manufacturer’s instructions.
