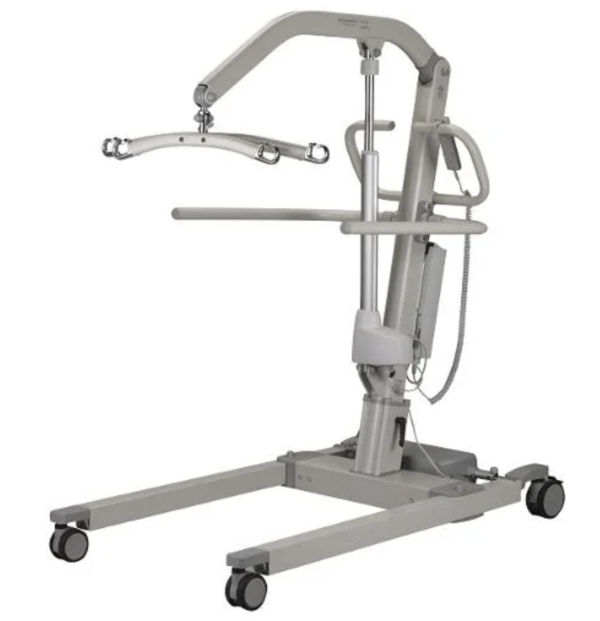

Handicare FGA-700 Bariatric Aluminum Floor Lift - 700 lb
Model: FGA-700 Bariatric Aluminum Floor Lift (4 versions)
Availability: In Stock – Ready to Ship
A 700 lb Aluminum Bariatric Floor Lift With a 360° Carry Bar and Gait Support Bars
The Handicare FGA-700 is an electric bariatric floor lift rated to 700 lbs, built from aluminum. It lifts from the floor and has a wide lifting range of 25.2 to 76.4 inches on the standard base, and the mast has three height settings to suit the room and the transfer. A four-point double carry bar turns 360° so the caregiver can position the person precisely, and support bars for gait and walking practice swing out of the way when they are not needed.
The base widens and narrows to fit around chairs and commodes, from 30.1 to 46.8 inches outside the legs on the standard base. The Low Base version sits lower, with legs just 4.1 inches high at the top, to fit under beds with less clearance. Each base is also available with Handicare QRS, a quick-release sling attachment that uses spring-loaded clips to secure the sling straps. The lift runs on a 24 V sealed lead-acid battery with an integrated charger, rated for about 30 lifts at 700 lbs or 60 lifts at 350 lbs per charge, and its control box records usage data for tracking and reporting. The standard lift weighs 161 lbs and the Low Base 141 lbs.
Key Features
- 700 lb weight capacity
- Aluminum construction — standard 161 lbs; Low Base 141 lbs
- Lifts from the floor — 25.2–76.4″ standard; 23.2–74.5″ Low Base
- Three mast height settings
- Four-point double carry bar — turns 360°
- Optional Handicare QRS — quick-release sling attachment with spring-loaded clips
- Gait support bars — swing away when not in use
- Adjustable-width base — 30.1–46.8″ outside on the standard base
- Low Base option — 4.1″ to the top of the legs
- 24 V battery with integrated charger — about 30 lifts at 700 lbs per charge
- Usage data collection — in the control box
Delivery and Setup Options
Choose how you would like your FGA-700 delivered when you order:
- Dock-to-dock delivery — delivered to your business or facility loading dock. A loading dock is required.
- Curbside delivery to your home or business — arrives on a liftgate truck and is lowered to the curb.
- White glove setup — if you would like help with unpacking and setup, see our White Glove Setup Service.
Equipment Specialist Insight: Choose the base by the bed: the standard base measures 6.1″ to the top of the legs and the Low Base 4.1″, so measure the clearance under the bed frame before ordering. The FGA-700 is 59″ long with a turning radius of about 63″, so check doorways and turning space for a lift this size. Choose QRS if you want quick-release sling attachment; confirm sling compatibility with us before ordering. The battery is rated for a 10% use, 90% rest duty cycle, so plan charging around how often the lift is used. Depending on the user’s assessment, two or more caregivers may be needed.
Technical Specifications
| Brand | Handicare |
| Model | FGA-700 Bariatric Aluminum Floor Lift |
| 280400 | FGA-700, standard base |
| 280401 | FGA-700, standard base, with Handicare QRS |
| 280402 | FGA-700, Low Base |
| 280403 | FGA-700, Low Base, with Handicare QRS |
| Safe Working Load | 700 lbs (318 kg) |
| Lifting Height | 25.2–76.4″ standard; 23.2–74.5″ Low Base; 21.3–72.5″ at lowest mast setting |
| Base Width, Inner | 25.2–41.9″ standard; 25.2–41.2″ Low Base |
| Base Width, Outer | 30.1–46.8″ standard; 30.1–46.1″ Low Base |
| Leg Height (floor to top / bottom of legs) | 6.1″ / 3.3″ standard; 4.1″ / 1.4″ Low Base |
| Overall Length | 59″ (1500 mm) |
| Turning Radius | 62.8″ standard; 63.1″ Low Base |
| Max Reach (carry bar to mast) | 27.2″ |
| Casters | Front 4″ / rear 5″ standard; front 3″ / rear 4″ Low Base |
| Weight | 161 lbs standard; 141 lbs Low Base |
| Carry Bar | Four-point double carry bar, 360° rotation; optional Handicare QRS |
| Battery | 24 VDC (2 × 12 V) sealed lead acid, 2.9 Ah; integrated charger |
| Lifts per Charge | About 30 at 700 lbs; 60 at 350 lbs |
| Duty Cycle | 10% use / 90% rest |
| Material | Aluminum |
| Slings | Sold separately |
Frequently Asked Questions
What is the difference between the standard base and the Low Base?
The Low Base sits lower, 4.1″ to the top of the legs instead of 6.1″, to fit under beds with less clearance. It has smaller casters and weighs 141 lbs instead of 161 lbs.
What is Handicare QRS?
A quick-release sling attachment on the carry bar that uses spring-loaded clips to secure the sling straps.
Can it lift someone from the floor?
Yes. The FGA-700 lifts from the floor.
How many lifts does a charge give?
About 30 lifts at 700 lbs or 60 lifts at 350 lbs, with a 10% use, 90% rest duty cycle.
Specifications are compiled from manufacturer and vendor documentation and are subject to change without notice. Verify current details before purchase. Information on this page is for general reference only and is not a substitute for professional medical advice. Patient lifts should be operated by trained caregivers; consult a healthcare provider or therapist for sling selection and transfer technique, and follow the manufacturer’s instructions.
