InTENSity 10 Digital TENS Unit
The InTENSity™ 10 Digital TENS Unit is one of the most popular, clinically tested portable electrotherapy devices in the premium InTENSity family. Engineered by Compass Health Brands (Richmar), this medical-grade, dual-channel device delivers safe, non-invasive, drug-free pain management by sending gentle electrical impulses through the skin to alter your body's pain perception.
What sets the InTENSity 10 apart is its absolute simplicity. It features 10 pre-programmed, body-part-specific treatment protocols based on researched clinical guidelines. With an intuitive two-button operation, users simply select the corresponding body icon to receive a customized therapeutic waveform optimized for that specific area.
Key Product Features
- 10 Preset Body-Part Protocols: Pre-programmed settings mapped directly to the neck, shoulder, mid back, low back, elbow, wrist, hip, knee, ankle, and foot.
- Effortless Two-Button Operation: Eliminates complicated manual configuration; select your target body part and adjust your preferred intensity.
- Dual-Channel Articulation: Control two isolated channels independently, allowing you to treat two separate body areas simultaneously with up to 4 electrodes.
- Built-In Electrode Safety Detection: Amplitude automatically resets to 0mA if a channel detects an open circuit or poor electrode contact at 12mA or higher.
- Dual-Power Flexibility: Operates anywhere via a standard 9V alkaline battery or the included AC wall power adapter for continuous therapy at home.
Core Technical Specifications
| Parameter | Detailed Configuration Specification |
|---|---|
| Brand / Manufacturer | Compass Health Brands / Richmar |
| Model Number (SKU) | DI1010 |
| UPC Barcode | 813520011933 |
| Channels | Dual, isolated between channels |
| Waveform Profile | Mono-phase square pulse wave |
| Pulse Amplitude | Adjustable 0–105mA peak at 1000 ohms load |
| Pulse Rate (Frequency) | 50 to 150 Hz (varies by preset) |
| Pulse Width | 100 to 260µs microseconds (varies by preset) |
| Treatment Timer Settings | 15, 30, 60 minutes, or Continuous |
| Device Dimensions | 4.5" L x 2.55" W x 0.9" D |
| Device Weight | 0.28 lbs (including battery) |

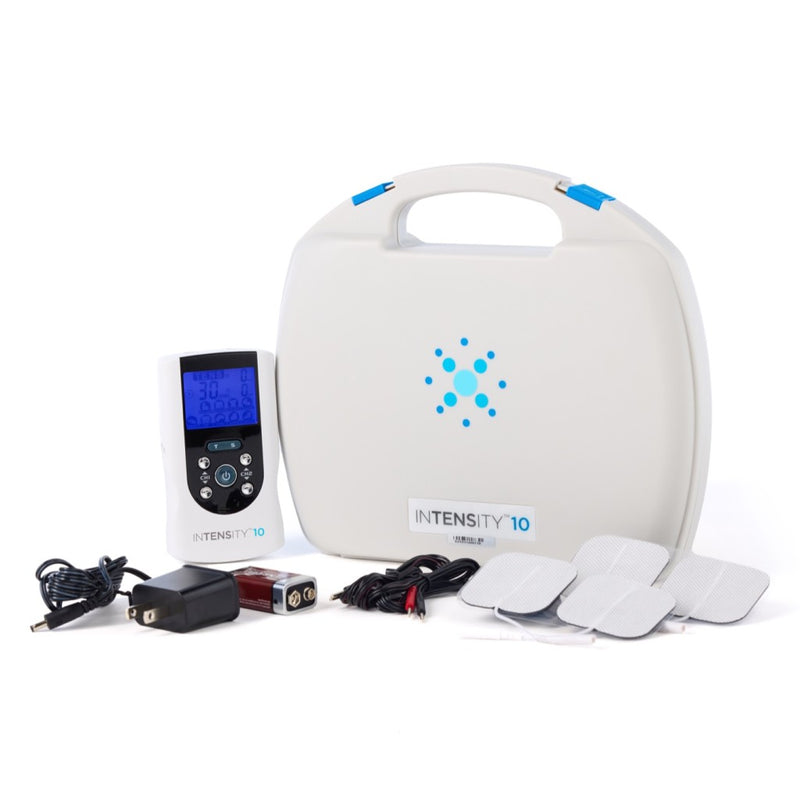

📦 What's Included in the Box?
Every factory-sealed InTENSity 10 retail package ships as a complete, out-of-the-box pain management solution containing:
- 1 x InTENSity 10 Digital TENS Device
- 1 x Durable, Hard-Shell Protective Carrying Case
- 2 x Premium 45" High-Flex Lead Wires
- 1 x Pack of 4 Self-Adhesive, Reusable Electrodes (2" x 2")
- 1 x Long-Lasting 9V Alkaline Battery
- 1 x AC Power Wall Adapter (100–240V)
- 1 x Instruction Manual & Quick-Start Guide
Frequently Asked Questions (FAQ)
What types of pain is the InTENSity 10 typically used for?
A TENS unit like the InTENSity 10 is widely utilized to provide immediate, symptomatic relief for chronic discomfort, acute post-traumatic joint or muscle soreness, stiffness, and structural tension. It acts by blocking the nerve pathways from sending distress signals to the brain while simultaneously encouraging the release of your body's natural endorphins.
Do I have to configure the frequencies and pulse widths myself?
No, that is the core benefit of the DI1010 model. The therapeutic frequencies, pulse rates, and modulations are already hardcoded into the system based on physical therapy research. You simply pick your target zone (like "Low Back" or "Shoulder"), and the machine sets up the correct waveform automatically. The only thing you adjust is the intensity level to match your comfort.
How far apart should the electrode pads be placed on the skin?
For optimal stimulation and effective coverage of the pain site, pads should ideally be placed roughly 2 to 3 inches apart from one another. Make sure they are applied to clean, dry, unbroken skin, and never place them directly on the front of your chest, over your eyes, or near major throat arteries.
