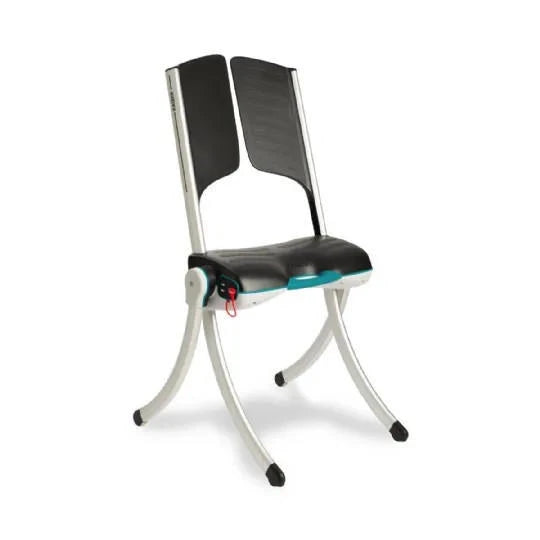

Liftup Raizer II Lifting Chair with Headrest
Model: Raizer II with Headrest (107761)
Availability: In Stock – Ready to Ship
A Battery-Powered Lifting Chair That One Caregiver Assembles Around a Person on the Floor

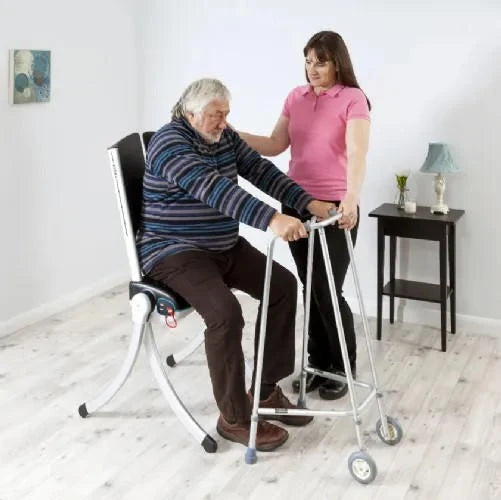

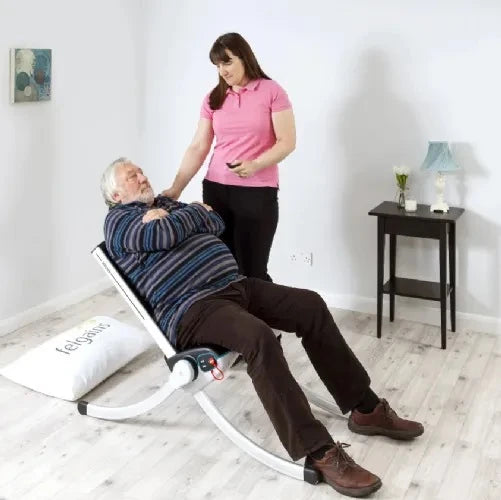

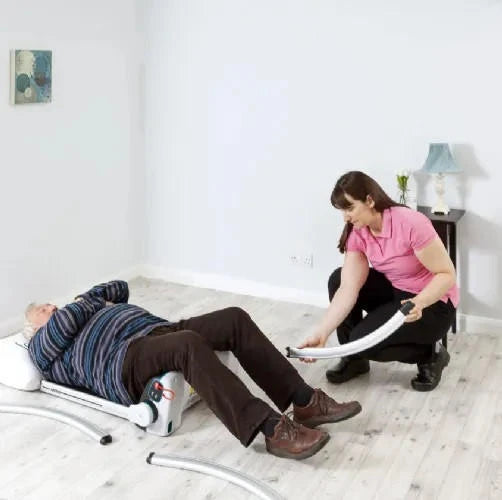

The Liftup Raizer II is a mobile lifting chair for raising a person who is on the floor and cannot get up on their own. Instead of lifting the person by hand, a single caregiver slides the low seat under them, attaches two backrests and four legs, fastens the lap belt and presses the button. In 20 to 30 seconds of motor time, the chair raises the person to a seated or nearly standing position. This kit includes the headrest, which supports the person’s head during the lift so the caregiver has both hands free.

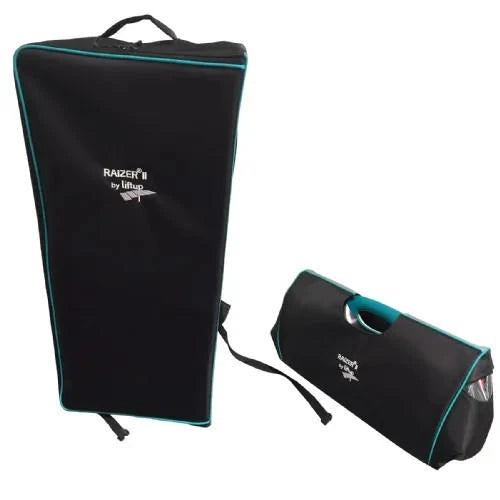

The chair supports up to 330 lbs (150 kg), including anything the person is wearing, and weighs 31.1 lbs in total, split into a 20.3 lb seat and motor unit and 10.8 lbs of legs and backrests. It packs into two carry bags for transport to where it’s needed. A 12V LiFePO4 battery provides about 40 lifts per charge at maximum load, or about 80 at an average load. Hold-to-run controls, an overload cutout and a red stop button are built in, and the IP52-rated polycarbonate, ABS and aluminum construction wipes down for disinfection. The Raizer II is made by Liftup and distributed in the U.S. by Span America.
Key Features
- One-caregiver operation — assembled around the person on the floor
- Headrest included — supports the head during the lift
- 330 lb (150 kg) safe working load
- 20–30 second lift — hold-to-run controls
- 31.1 lb total weight — carried in two bags
- LiFePO4 battery — about 40 lifts at max load, 80 at average load

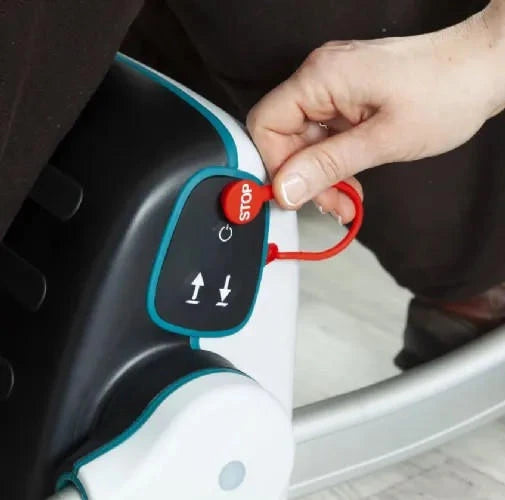

- Safety features — overload cutout, red stop button, lap belt
- Remote control — with an alert if it isn’t returned to its place
- Disinfectable, IP52-rated surfaces
- Service inspection alert on the control panel
Equipment Specialist Insight: Before using the Raizer II, check the person for injury, and call for medical help instead of lifting if there is any sign they may be hurt. The chair is for raising a person from the floor, not for moving them: never push it or roll it while someone is seated on it. Practice assembling it around a willing helper before you need it in a real situation, so the steps are familiar. Keep the battery charged (charge for at least 6 hours before first use and at least every 6 months in storage), and keep up with the annual inspection the control panel reminds you of.
Technical Specifications
| Brand | Liftup |
| Model | Raizer II with Headrest |
| U.S. Distributor | Span America |
| Item Number | 107761 |
| Safe Working Load | 330 lbs (150 kg) |
| Total Weight | 31.1 lbs (14.1 kg) |
| Seat / Motor Unit Weight | 20.3 lbs (9.2 kg) |
| Backrests & Legs Weight | 10.8 lbs (4.9 kg) |
| Lifting Time | 20–30 seconds |
| Dimensions, Raised (L × W × H) | 25.8″ × 27.1″ × 48.2″ (655 × 688 × 1225 mm) |
| Dimensions, Lowered (L × W × H) | 52″ × 27.1″ × 10.9″ (1321 × 688 × 277 mm) |
| Battery | LiFePO4, 12V 5Ah |
| Lifts per Charge | About 40 at max load; about 80 at average load |

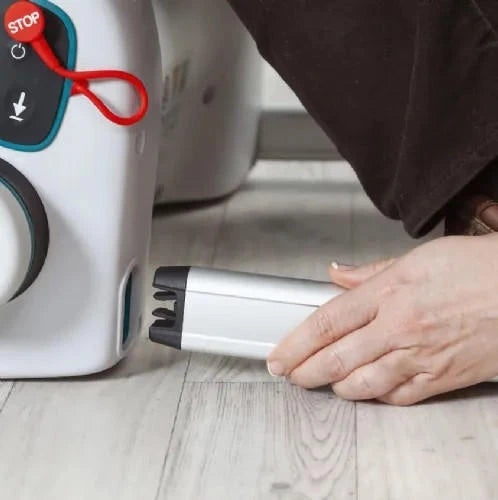

| Charging Time | Up to 6 hours (15W charger); about 20 hours (USB) |
| Materials | Polycarbonate and ABS seat and backrests; aluminum legs |
| Ingress Protection | IP52 (chair) |
| Noise Level | Under 70 dB(A) |
| Duty Cycle | 1 min on / 5 min off |
| Operating Temperature | 41°F – 104°F (+5°C to +40°C) |
| Expected Service Life | More than 5 years with annual inspection |

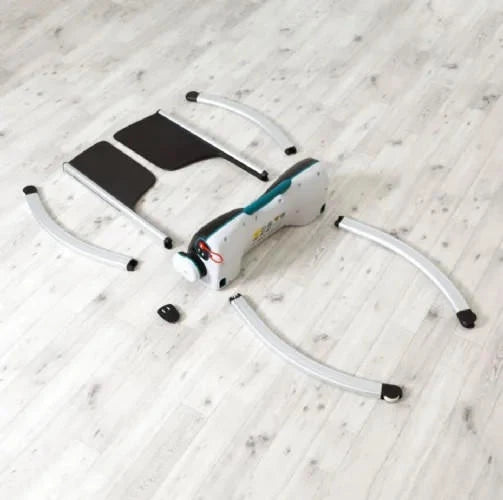

| Included | Seat and motor unit, 4 legs, 2 backrests, headrest, lap belt, remote control, 2 carry bags, 15W charger, USB charger cable |
Frequently Asked Questions
How many people does it take to use?
One caregiver. The chair is assembled around the person on the floor and raised with the push of a button; the headrest supports the person’s head so the caregiver can keep both hands free.
Can it be used to move the person to another room?
No. The Raizer II is designed only to raise a person from the floor. It must not be pushed or moved while someone is seated in it.
How many lifts does a charge give?
About 40 lifts at maximum load, or about 80 at an average load. A full charge takes up to 6 hours with the included 15W charger.
How is it cleaned?
Wipe the surfaces with a well-wrung cloth and disinfectant. Do not immerse the chair or rinse it with running water.
Specifications are compiled from manufacturer and vendor documentation and are subject to change without notice. Verify current details before purchase. Information on this page is for general reference only and is not a substitute for professional medical advice. Lifting chairs should be used by trained caregivers according to the manufacturer’s instructions; if a person may be injured, call for medical help before moving them.
