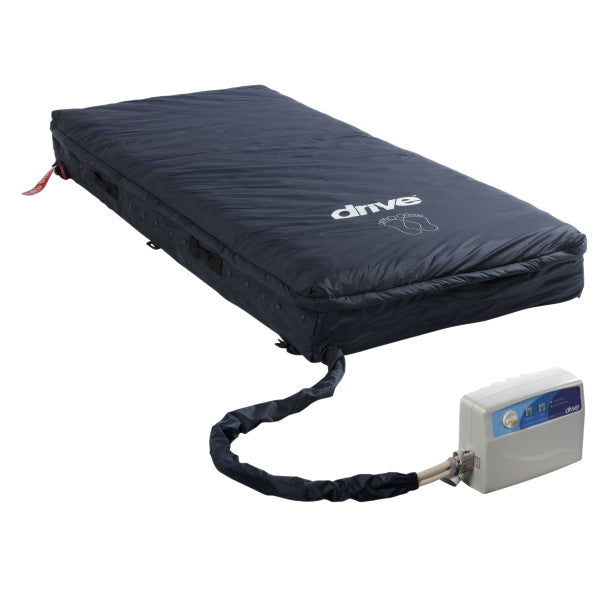

Drive Medical Med-Aire Assure 5" Air + 3" Foam Base Mattress System 350 lb
Drive Med-Aire Essential Alternating Pressure Mattress System
Active Air Circulation & Reliable Dual-Layer Infrastructure
When balancing an extended home care routine, choosing a dynamic mattress system that safeguards surface comfort while supporting your daily rhythm is critical. The Drive Medical Med-Aire Essential (14530) provides a high-utility mattress replacement layout engineered with active air technology. By pairing a 10-minute alternating air circulation sequence with integrated low air loss technology, this system continuously shifts body weight, reduces friction, and optimizes cooling airflow to keep users resting comfortably through long hours in bed.
This personal system features an advanced 8-inch total depth configuration composed of 17 individual 5-inch deep air cells resting directly over an integrated 3-inch foam foundation block. This thoughtful structure delivers robust protection against bottoming out during unexpected property power outages. Outfitted with customized adjustments on a quiet compressor control unit, the layout easily conforms to active individuals seeking targeted posture relaxation and everyday comfort on a standard bed frame.
Key Performance Features
- Active Air Technology System: Combines automated alternating air circulation with low air loss performance to maintain premium microclimate management.
- Dual-Mode Controller Operation: Features a fixed 10-minute pneumatic cycle time in alternating mode and includes a stable static mode option for simplified transfers.
- Adjustable Weight Settings: Customizable analog dials allow caregivers to calibrate internal pressure levels for personalized surface conformance.
- Audio and Visual Alert System: Built-in indicators notify users immediately if internal air pressure or circulation drops below baseline levels.
- 17 Modular Air Cells: 5-inch deep separate air chambers are individually removable, allowing for swift independent maintenance sequences.
- Integrated Foam Foundation Base: A supportive 3-inch safety foam base layer provides uninterrupted infrastructure cushioning during utility interruptions.
- Built-In Pillow Feature: Programmatically keeps the air cells under the head section stable and stationary to improve head comfort.
- Removable Quilted Cover: Fluid-resistant, low-friction, and vapor-permeable nylon cover shields the mattress from surface wear and moisture.
- Quick-Release Engineering: Equipped with a rapid deflation CPR valve at the head portion and an EZ Lock/Quick Release connection interface.
Equipment Specialist Insight: The Med-Aire Essential 14530 is a smart choice for users transitioning to a full mattress replacement system on a budget. Its dual-layer design is highly practical, as the integrated 3-inch foam base layer guarantees absolute support during power fluctuations without requiring a separate safety underlay. To maximize textile preservation, wipe down the quilted cover with standard soapy water instead of strong chemical solvents.
Technical Specifications
- Brand Manufacturer Drive DeVilbiss / Drive Medical
- System SKU / Item Number 14530
- Total System Weight Capacity 350 lbs
- Air Cell Depth Profile 17 Separate 5" Deep Air Cells
- Foundation Base Depth 3" Integrated Safety Foam Base
- Control Unit Pump Mechanism Powered Compressor Unit (8 LPM Airflow Output)
- Pneumatic Cycle Duration 10 Minutes (Alternating Mode)
- Tubing Quick-Connect Interface EZ Lock / Quick Release Design
Q: How does the integrated 3-inch foam base function during a home power interruption?
A: If your property experiences a power outage and the compressor pump stops running, the upper 5-inch air cells will gradually lose pressure. However, the built-in 3-inch dense foam base remains solid, working as a stationary mattress pad that completely prevents the user from bottoming out or resting against the metal frame.
Q: Can the individual 5-inch deep air cells be replaced separately?
A: Yes. The Med-Aire Essential is engineered with a modular layout. Each of the 17 air cells can be unclipped and swapped out independently if maintenance is needed, saving you from having to purchase an entirely new mattress core if an individual bladder gets compromised.
Q: What are the assembly and connection steps required when setting up the system?
A: Place the full mattress flat across your existing bed frame. Hang the compressor control pump onto your footboard using its integrated hooks, attach the air hoses via the EZ Lock quick-release interface, and plug the line into a standard outlet. Adjust the control setting to maximum firmness for the initial inflation sequence.
Manufacturing & Packaging Inventory
- Full Mattress System Configuration: SKU 14530 (Includes Mattress, Pump, and Cover)
- Universal Product Code (UPC): 822383536323
- Factory Warranty Protection: 1-Year Limited Manufacturer Warranty
Retail Disclaimer: Specifications, dimensions, and compatibility details are provided for reference and may be updated by the manufacturer without notice. EnhDme recommends independently verifying exact model fit, replacement-part compatibility, and current measurements against the manufacturer's specification sheet before purchase.
