Span America PressureGuard APM2 Deluxe In-Home Mattress
Model: PressureGuard Easy Air Complete System (8 sizes)
Availability: In Stock – Ready to Ship
A Powered Low-Air-Loss and Alternating Pressure Mattress With a Foam Safety Shell
The Span America PressureGuard Easy Air is a complete powered mattress system: a 7-inch mattress, a compact control unit and a washable coverlet. Air moves through the mattress to provide low-air-loss microclimate management, and an alternating pressure mode shifts the load across the surface on a 15-minute cycle. A Float mode offers powered flotation, and a Max Immersion setting gives an ultra-soft surface for users under 120 lbs. The system supports users up to 500 lbs across all sizes.

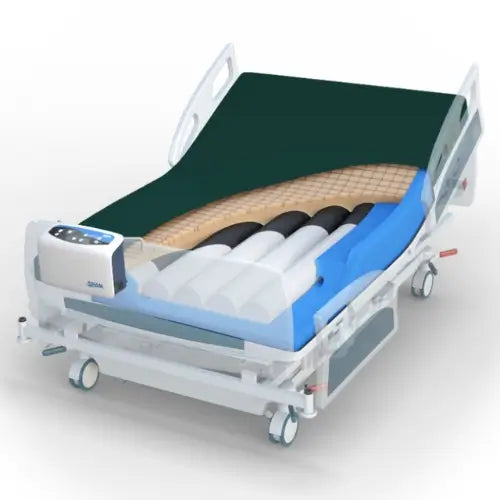

The air system sits inside an engineered foam shell, and a Safety Edge bolster along the sides is designed to resist collapsing when someone sits on the edge or transfers in and out of bed. A timed 30-minute Auto Firm mode firms the surface for transfers, repositioning and daily care. The mattress holds its inflation during a power interruption or while the bed is moved. The control unit draws less than 15 watts, includes a lockout to prevent accidental changes, and shows a normal/low pressure indicator. The zippered outer coverlet is vapor-permeable, machine-launderable and wipes clean with hospital-grade cleaners.
Key Features
- Complete system — mattress, control unit and coverlet
- Low-air-loss microclimate management
- Alternating pressure — 15-minute cycle
- Float mode and Max Immersion setting (for users under 120 lbs)
- 30-minute Auto Firm — for transfers and daily care
- Safety Edge bolster — designed to resist collapse at the sides
- Holds inflation during power interruption and transport
- Low power draw — under 15 watts
- Lockout and pressure indicator on the control unit
- 500 lb weight capacity — 8 sizes, 32″ to 42″ wide
Need help with setup? White glove setup is available if needed. See our White Glove Setup Service.
Equipment Specialist Insight: Choose the size that matches the bed deck, not the old mattress: measure the deck’s length and width, and pick the closest Easy Air size so there are no gaps at the sides or ends. The 39″ and 42″ widths are for wider beds. Because the mattress is 7″ tall, check the height of the bed rails above the mattress surface after installation. Use the Auto Firm mode before transfers or repositioning, and keep the control unit’s cord routed where it won’t be pinched by the bed frame. A clinician should decide which therapy settings suit the user.
Technical Specifications
| Brand | Span America |
| Product Line | PressureGuard Easy Air |
| L7535-29 | 75″ L × 35″ W × 7″ H |
| L7835-29 | 78″ L × 35″ W × 7″ H |
| L8035-29 | 80″ L × 35″ W × 7″ H |
| L8435-29 | 84″ L × 35″ W × 7″ H |
| L8032-29 | 80″ L × 32″ W × 7″ H |
| L8039-29 | 80″ L × 39″ W × 7″ H |
| 6470029 | 80″ L × 42″ W × 7″ H |
| 81300 | 84″ L × 42″ W × 7″ H |
| Weight Capacity | 500 lbs (all sizes) |
| Modes | Low air loss; alternating pressure (15-min cycle); Float; Max Immersion; 30-min Auto Firm |
| Controls | Separate airflow and alternating on/off; lockout; normal/low pressure indicator |
| Construction | Integrated air system in an engineered foam shell; Safety Edge bolster |
| Covers | Zippered, vapor-permeable outer coverlet (machine launder, air dry); inner air delivery cover with Air Diffusion Matrix liner |
| Power Interruption | Maintains inflation |
| Electrical | 120 VAC, 60 Hz, 1.0 A max; under 15 W; detachable cord |
| Mattress Weight | 22 lbs |
| Control Unit | 6 lbs; 12″ × 9.5″ × 7″ |
| Latex | Latex-free |
| Included | Mattress, control unit, coverlet |
| Warranty | 2 years, non-prorated |
Frequently Asked Questions
What happens if the power goes out?
The mattress maintains its inflation during a power interruption and while the bed is being moved.
Which size do I need?
Measure the bed deck’s length and width and choose the closest match. Sizes run from 75″ to 84″ long and 32″ to 42″ wide, all 7″ tall.
How do I make the mattress firm for a transfer?
Use the Auto Firm mode. It firms the surface for 30 minutes for transfers, repositioning and care.
How is the cover cleaned?
The zippered outer coverlet can be machine laundered and air dried, and it wipes clean with hospital-grade cleaners.
Can I return it if it isn’t right?
No. For hygiene reasons this mattress system is final sale and cannot be returned, exchanged or refunded once it has shipped. Please check the size, weight rating and therapy placement before ordering, and ask us if you are unsure.
Please note: this item is final sale. For hygiene reasons, mattress systems cannot be returned, exchanged or refunded once they have shipped, and this includes mattresses that have been unpacked, set up or tried. Please confirm the bed deck size, weight rating and any therapy placement before ordering.
Specifications are compiled from manufacturer and vendor documentation and are subject to change without notice. Verify current details before purchase. Information on this page is for general reference only and is not a substitute for professional medical advice. Therapy settings and support surface selection should be determined by a qualified healthcare provider; follow the manufacturer’s instructions.
