Span America PressureGuard Custom Care Convertible LAL
Model: PressureGuard Custom Care Convertible LAL (8 sizes)
Availability: In Stock – Ready to Ship
A Non-Powered Air and Foam Mattress That Converts to Powered Low Air Loss

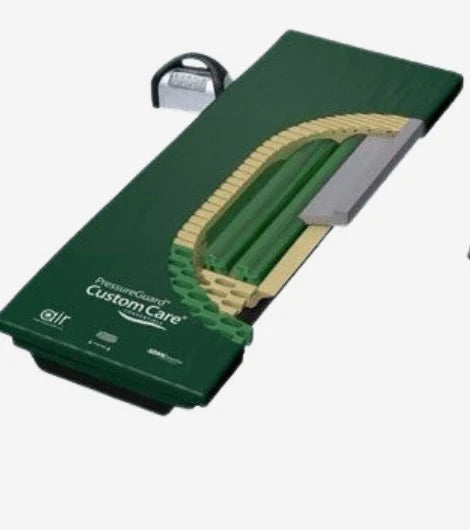

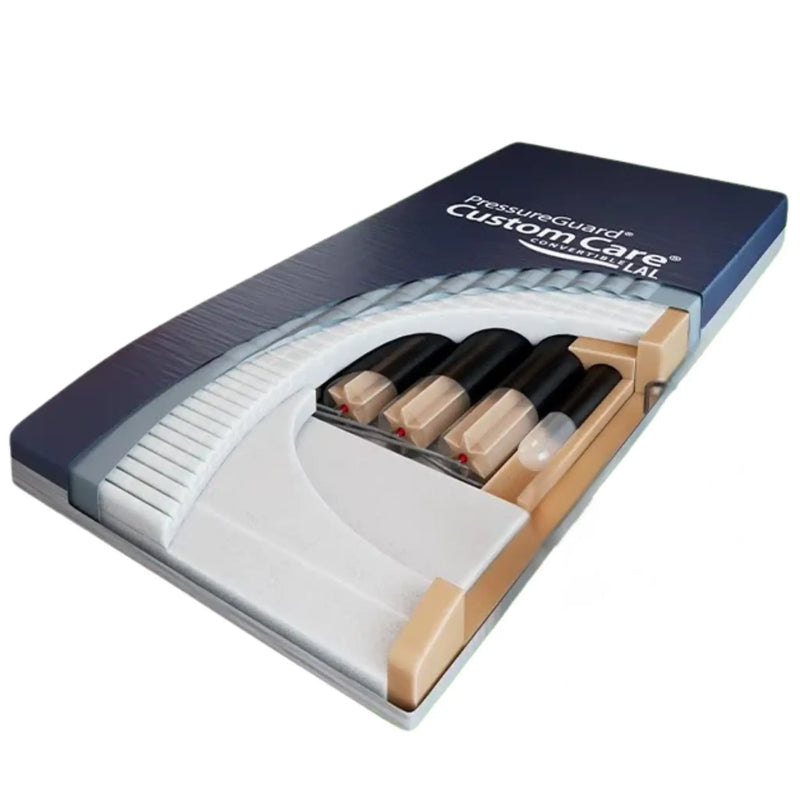

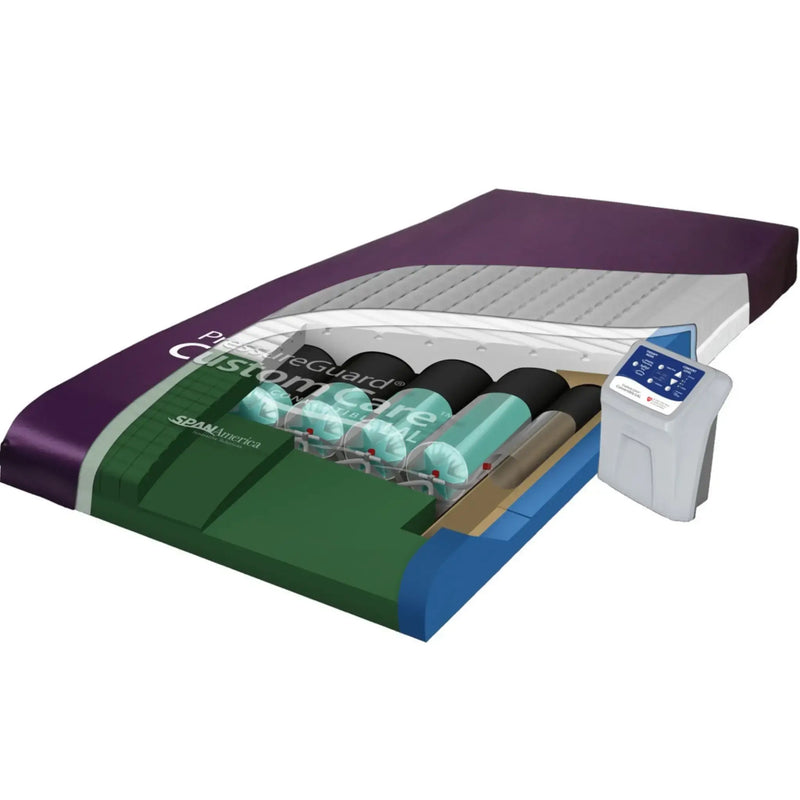

The Span America PressureGuard Custom Care Convertible LAL is a 7-inch air and foam mattress that can be used two ways. On its own, it works as a non-powered reactive surface: head-to-foot air cylinders inside a foam shell sit beneath a Geo-Matt foam top whose individual cells follow the body’s contours. Add the 8410 control unit, now or later, and the same mattress becomes a powered surface with low-air-loss microclimate management, alternating pressure, lateral rotation and a powered float mode, selected with push buttons and connected with quick-connect air lines.
In low-air-loss mode, a non-collapsible Air Diffusion Matrix lets moisture vapor pass through the coverlet, where a continuous current of air carries it away. A tapered heel slope sits at the foot end, and a two-piece Safety Edge bolster runs along the sides. The mattress weighs about 34 lbs and is rated to 500 lbs in non-powered and alternating modes and 350 lbs in lateral rotation. It comes in 36 and 42-inch widths in 75 to 84-inch lengths, plus a recessed-deck version with V-shaped edges and a compressible section for multiple bed lengths, and versions made for Hill-Rom CareAssist beds. The mattress is sold without the control unit, which is available as an add-on.
Key Features
- Use non-powered or powered — convert with the 8410 control unit, now or later
- Powered modes — low air loss, alternating pressure, lateral rotation, float
- Push-button therapy selection — quick-connect air lines
- Air Diffusion Matrix — moves moisture vapor away in low-air-loss mode
- Head-to-foot air cylinders in a foam shell — under a Geo-Matt foam top
- Heel slope and two-piece Safety Edge bolster
- 500 lbs non-powered and alternating; 350 lbs lateral rotation
- Eight sizes — 36″ and 42″ widths, recessed deck and CareAssist versions
- Warranty — mattress 5 years; control unit 2 years; non-prorated
Available Add-Ons

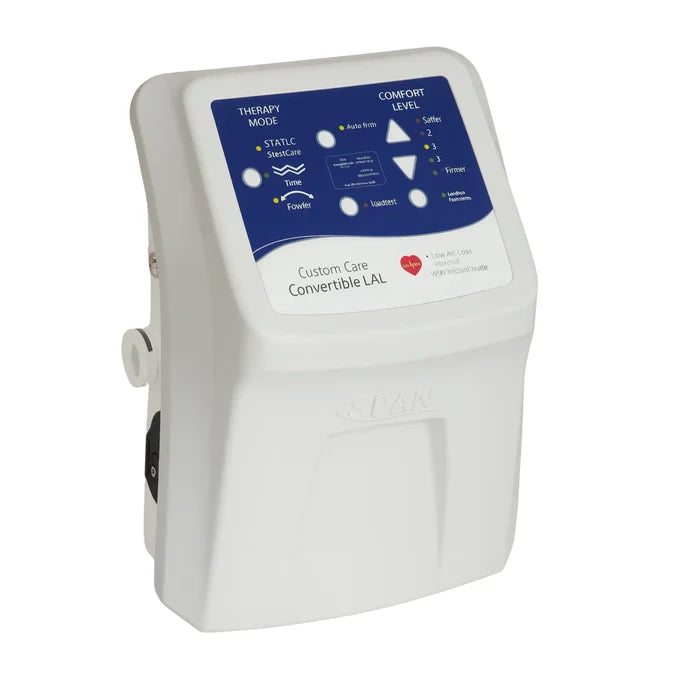

- Add-on control unit (8410) — converts the mattress from a non-powered surface to a powered low-air-loss surface with alternating pressure, lateral rotation and powered float. Add it now, or later when care needs change.
Need help with setup? White glove setup is available if needed. See our White Glove Setup Service.
Equipment Specialist Insight: The Convertible lets a facility or family buy the mattress first and add powered therapy only when it is needed: start non-powered, and add the 8410 control unit if the care plan changes. Check the weight limit for the mode the user will need: 500 lbs non-powered or in alternating pressure, 350 lbs in lateral rotation. Choose the size by the bed deck; the recessed-deck version fits frames where the mattress sits down inside the deck, and the CareAssist versions are made for Hill-Rom CareAssist beds. With the control unit, plug it directly into a wall outlet. A clinician should decide which mode suits the user.
Technical Specifications
| Brand | Span America |
| Model | PressureGuard Custom Care Convertible LAL |
| CL753629 | 75″ L × 36″ W × 7″ H |
| CL803629 | 80″ L × 36″ W × 7″ H |
| CL843629 | 84″ L × 36″ W × 7″ H |
| 74750 | 80″ L × 42″ W × 7″ H |
| 49907 | 84″ L × 42″ W × 7″ H |
| CL85V29 | 84″ L, for recessed deck bed frames |
| CL80CA29 | 80″ L, for Hill-Rom CareAssist beds |
| CL84CA29 | 84″ L, for Hill-Rom CareAssist beds |
| Weight Capacity | 500 lbs (non-powered and alternating pressure); 350 lbs (lateral rotation) |
| Height | 7″ |
| Mattress Weight | About 34 lbs |
| Non-Powered Use | Reactive air and foam surface |
| Powered Modes (with 8410) | Low air loss; alternating pressure; lateral rotation; powered float |
| Construction | Head-to-foot air cylinders in a foam shell; Geo-Matt foam top; heel slope; two-piece Safety Edge bolster; Air Diffusion Matrix |
| Recessed Deck Version | V-shaped edges; compressible section for multiple lengths |
| Included | Mattress; 8410 control unit sold separately as an add-on |
| Flammability | NFPA 101; ASTM E1590; Cal TB 117; 16 CFR 1632 and 1633; UL listed |
| HCPCS | E0373 without control unit; E0277 with control unit |
| Warranty | Mattress 5 years; control unit 2 years; non-prorated |
Frequently Asked Questions
Does it come with a control unit?
No. The mattress works on its own as a non-powered surface. The 8410 control unit is an add-on that converts it to powered low air loss, alternating pressure, lateral rotation and float.
Can I add the control unit later?
Yes. That is the idea behind the Convertible: start non-powered, and add the 8410 if care needs change.
What weight capacity does it have?
500 lbs non-powered and in alternating pressure, and 350 lbs in lateral rotation.
Which version fits my bed?
Choose a 36″ or 42″ width to match a standard deck, the recessed-deck version for frames where the mattress sits inside the deck, or the CareAssist version for Hill-Rom CareAssist beds.
Can I return it if it isn’t right?
No. For hygiene reasons this mattress system is final sale and cannot be returned, exchanged or refunded once it has shipped. Please check the size, weight rating and therapy placement before ordering, and ask us if you are unsure.
Please note: this item is final sale. For hygiene reasons, mattress systems cannot be returned, exchanged or refunded once they have shipped, and this includes mattresses that have been unpacked, set up or tried. Please confirm the bed deck size, weight rating and any therapy placement before ordering.
Specifications are compiled from manufacturer and vendor documentation and are subject to change without notice. Verify current details before purchase. Information on this page is for general reference only and is not a substitute for professional medical advice. Support surfaces should be selected with a healthcare provider and set up and operated according to the manufacturer’s instructions, including bed rail guidance.
