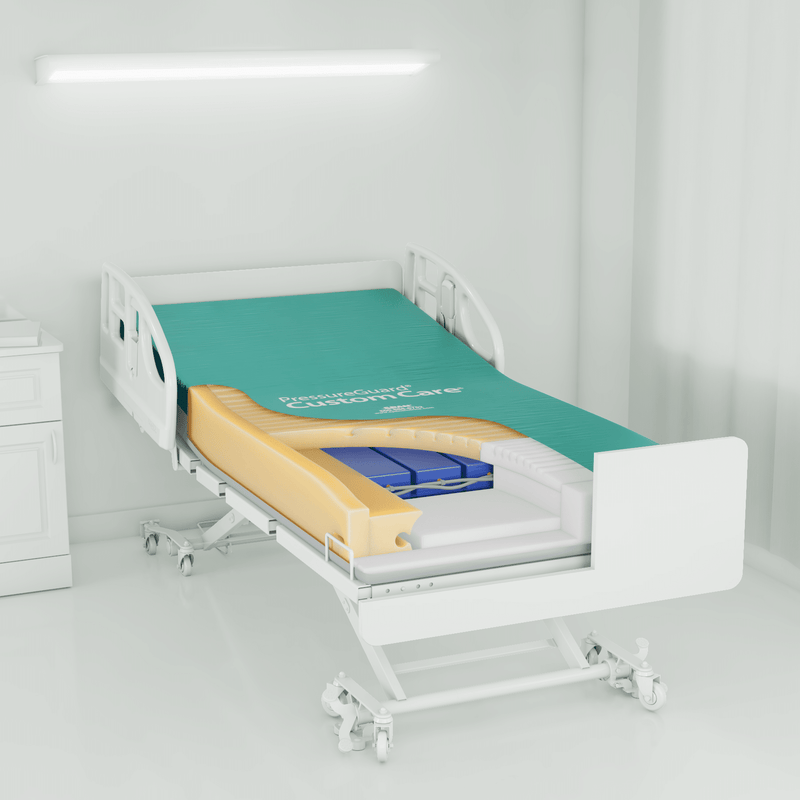

Span America PressureGuard Custom Care Non-Powered Mattress
Model: PressureGuard Custom Care (non-powered, 8 sizes)
Availability: In Stock – Ready to Ship
A Non-Powered Air and Foam Mattress With Metered Immersion and No Setup
The Span America PressureGuard Custom Care is a 7-inch non-powered mattress that combines air and foam. Inside a zoned outer shell, interconnected head-to-foot air chambers make up Span America’s Metered Immersion air system: as the user moves or repositions, the chambers react together, deflecting, transferring air and venting in response to the user’s weight and position. There is no pump, no power cord, no setup and no refilling. On top, a segmented Geo-Matt surface of more than 800 individually articulating cells follows the body’s contours and helps heat and moisture move away from the surface.
The bi-directional stretch cover is made from LifeSpan fabric, which stands up to bleach and other strong disinfectants, and silicone-coated Shear Transfer Zone bands on its underside help the user settle back into position after the head of the bed is raised. Safety Edge bolsters along the sides give a steadier edge for sitting and transfers. The mattress weighs about 23 lbs and is rated to 500 lbs. It comes in 36 and 42-inch widths in 75 to 84-inch lengths, a recessed-deck version with V-shaped edges, a compressible section and two fabric handles, and versions made for Hill-Rom CareAssist beds.
Key Features
- Non-powered — no pump, cord, setup or refilling
- Metered Immersion air system — interconnected head-to-foot chambers react as the user moves
- Geo-Matt segmented top — 800+ articulating cells
- LifeSpan stretch cover — resists bleach and strong disinfectants
- Shear Transfer Zone bands — silicone-coated, on the cover underside
- Safety Edge bolsters — steadier edge for sitting and transfers
- 500 lb weight capacity — about 23 lbs
- Eight sizes — 36″ and 42″ widths, recessed deck and CareAssist versions
- Warranty — mattress core 5 years; cover 2 years
Equipment Specialist Insight: The Custom Care is the simplest way into the PressureGuard line: nothing to plug in or adjust, and it is ready as soon as it is on the bed. If powered therapy might be needed later, look at the Custom Care Convertible LAL instead, which accepts an add-on control unit. Choose the size by the bed deck: 36″ or 42″ for standard decks, the recessed-deck version for frames where the mattress sits inside the deck, and the CareAssist versions for Hill-Rom CareAssist beds. The cover tolerates bleach-based disinfectants, which suits facilities with strict cleaning routines.
Technical Specifications
| Brand | Span America |
| Model | PressureGuard Custom Care (non-powered) |
| NP753629 | 75″ L × 36″ W × 7″ H |
| NP803629 | 80″ L × 36″ W × 7″ H |
| NP843629 | 84″ L × 36″ W × 7″ H |
| 60787 | 80″ L × 42″ W × 7″ H |
| 66914 | 84″ L × 42″ W × 7″ H |
| NP85V29 | For recessed deck bed frames |
| NP80CA29 | 80″ L, for Hill-Rom CareAssist beds |
| NP84CA29 | 84″ L, for Hill-Rom CareAssist beds |
| Weight Capacity | 500 lbs |
| Height | 7″ |
| Mattress Weight | About 23 lbs |
| Air System | Metered Immersion: interconnected head-to-foot air chambers; non-powered |
| Top Surface | Geo-Matt segmented, 800+ cells |
| Cover | LifeSpan bi-directional stretch fabric; resists bleach and harsh disinfectants; Shear Transfer Zone bands |
| Edges | Safety Edge bolsters |
| Recessed Deck Version | V-shaped edges; compressible section; inner bolster cradle; two fabric handles |
| Power | Non-powered |
| Warranty | Mattress core 5 years; cover 2 years |
Frequently Asked Questions
Does it need power or setup?
No. The Metered Immersion air system adjusts on its own as the user moves. There is nothing to plug in, inflate or refill.
How is it different from the Custom Care Convertible LAL?
The Custom Care is non-powered only. The Convertible LAL can be used non-powered or converted to powered low air loss, alternating pressure and lateral rotation with an add-on control unit.
What weight capacity does it have?
500 lbs, including the recessed-deck version.
Can the cover be cleaned with bleach?
Yes. The LifeSpan fabric is made to resist bleach and other harsh disinfectants.
Specifications are compiled from manufacturer and vendor documentation and are subject to change without notice. Verify current details before purchase. Information on this page is for general reference only and is not a substitute for professional medical advice. Consult a healthcare provider about support surface selection, and follow the bed and mattress manufacturers’ instructions, including bed rail guidance.
