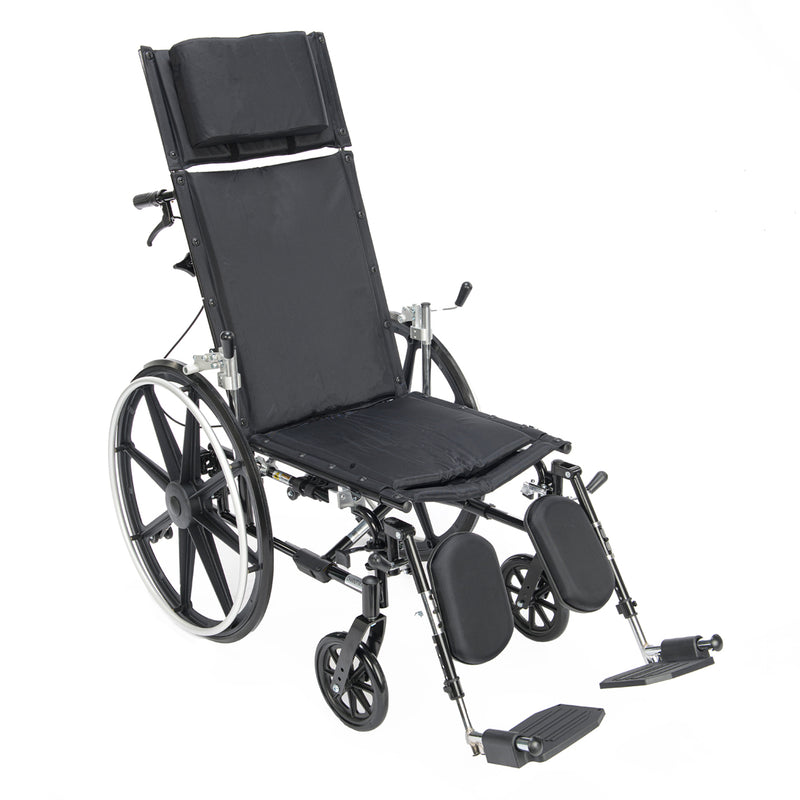

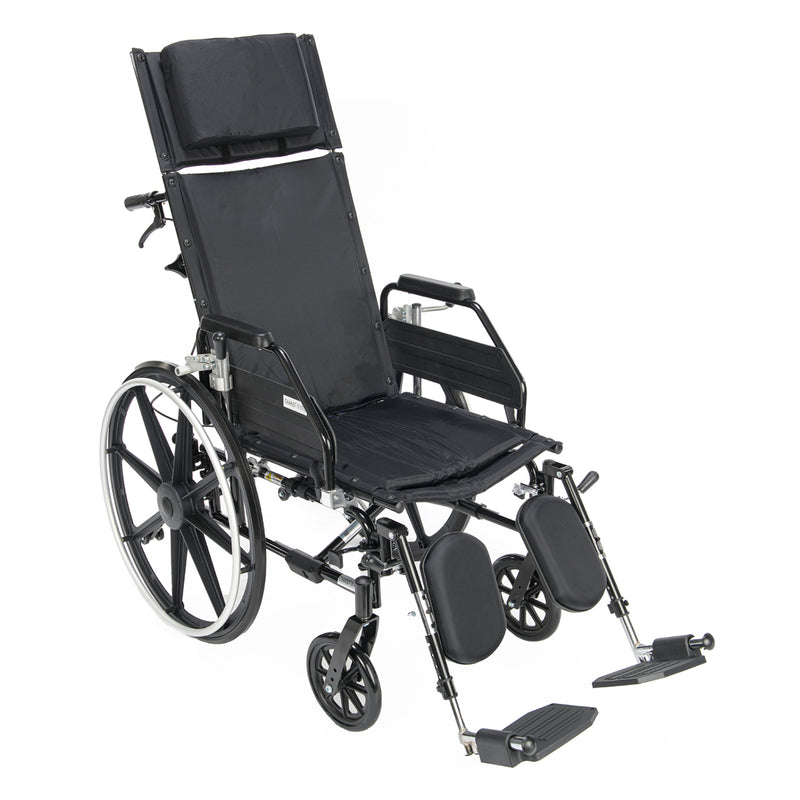

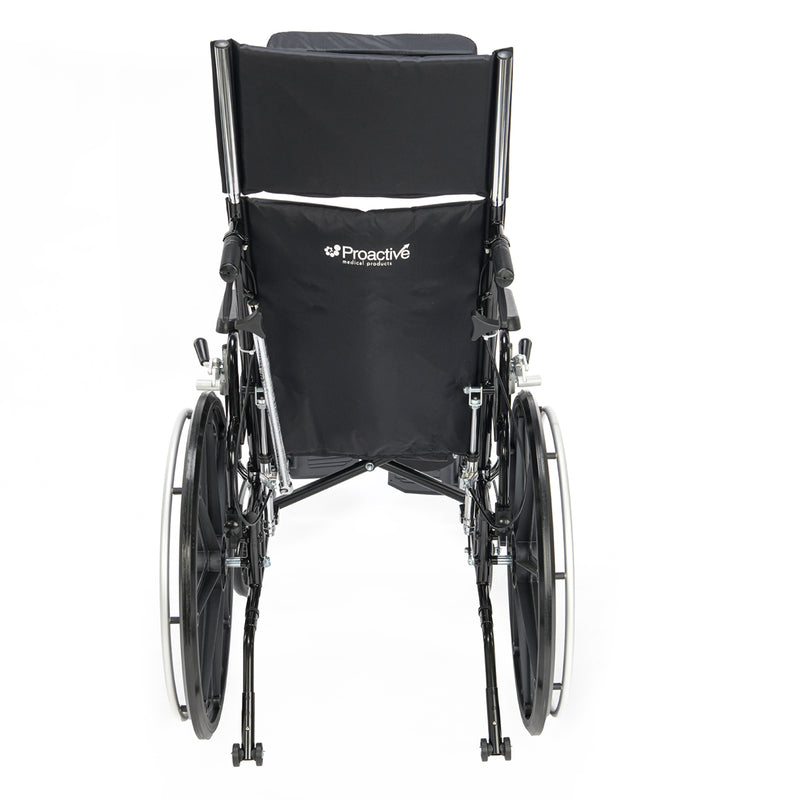

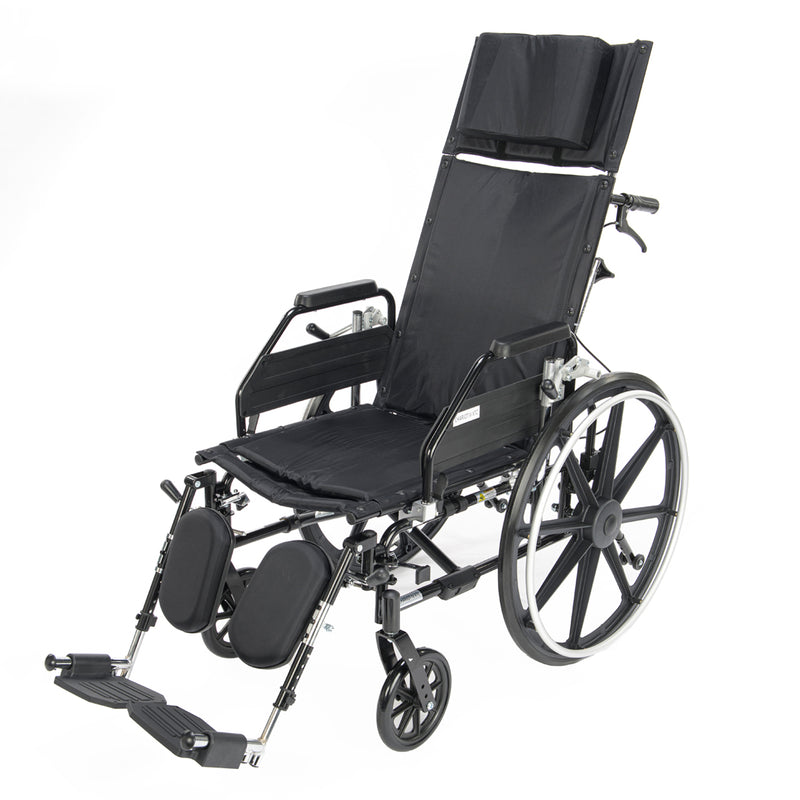

ProActive Medical Chariot IV XTC-RC Premium Lightweight Reclining Wheelchair
The Chariot IV XTC-RC Series represents ProActive Medical's top-of-the-line hybrid platform. This series takes the premium, high-strength ultra-lightweight architecture of the K4 XTC line (designed to compete directly with high-end models like the Drive Viper) and integrates a specialized hydraulic reclining backrest assembly.
The defining clinical advantage of the XTC-RC is its ability to transition from a standard upright configuration down to a deep reclined position, helping users distribute pressure and change body orientation effortlessly. Unlike traditional heavy steel reclining units, the high-strength aluminum/alloy hybrid frame cuts down on physical lifting and propulsion weight. It comes paired with tool-free Elevating Legrests (ELR), dual-purpose Removable Flip-Back Arms (available in Desk or Full Length) for easy lateral transfers, an adjustable seat depth extension (16" to 18"), rear anti-tippers, and flat-free urethane wheels.
Master Variant SKU & GTIN Matrix
| Model / MPN | Seat Width | Armrest Style | Legrest Rigging Style | GTIN / UPC # | Weight Capacity |
|---|---|---|---|---|---|
| WCK4XRC16DAELR | 16 Inches | Removable Flip-Back Desk | Elevating Legrests (ELR) | 5060488574429 | 300 lbs (136 kg) |
| WCK4XRC18DAELR | 18 Inches | Removable Flip-Back Desk | Elevating Legrests (ELR) | 5060488574443 | 300 lbs (136 kg) |
| WCK4XRC20DAELR | 20 Inches | Removable Flip-Back Desk | Elevating Legrests (ELR) | 5060488574467 | 300 lbs (136 kg) |
| WCK4XRC16FAELR | 16 Inches | Removable Flip-Back Full | Elevating Legrests (ELR) | 5060488574436 | 300 lbs (136 kg) |
| WCK4XRC18FAELR | 18 Inches | Removable Flip-Back Full | Elevating Legrests (ELR) | 5060488574450 | 300 lbs (136 kg) |
| WCK4XRC20FAELR | 20 Inches | Removable Flip-Back Full | Elevating Legrests (ELR) | 5060488574474 | 300 lbs (136 kg) |
Core Technical Specifications
| Equipment Parameter | Certified Performance Metric |
|---|---|
| Manufacturer / Brand | ProActive Medical |
| HCPCS Billing Codes | E1226 + E0990 (Manual fully reclining frame + Elevating legrest assembly) |
| Frame Mechanics | High-Strength Ultra-Lightweight frame base with integrated hydraulic recline cylinders |
| Armrest Hardware | Multi-functional: Removable design paired with a dual-stage rearward flip-back pivot |
| Seat Depth Adjustability | Telescoping seat frame rails: Expands depth seamlessly from 16" to 18" |
| Upholstery & Support | Premium double-stitched, flame-retardant breathable black nylon |
| Safety Assets | Rear frame-mounted adjustable anti-tippers and manual push-to-lock wheel brakes |
| Wheels & Casters | 8" solid front casters paired with 24" flat-free composite mag wheels |
