Proactive Medical Protopia Long-Term Care Bed System

The Proactive Medical Protopia Long-Term Care (LTC) Bed series is an elite line of medical-grade, fully adjustable sleep surfaces engineered specifically for institutional long-term care facilities and advanced home care environments. Designed with ultimate flexibility in mind, these beds feature tool-free expandable lengths and frames that lower close to the floor to minimize fall injuries while elevating high enough to provide caregivers with an ergonomic working height.

From the standard high-mobility profile to the fully expandable, heavy-duty bariatric models, the Protopia series utilizes independent linear actuators to control head, foot, and overall deck elevation. Built with a heavy-duty grid deck that optimizes airflow and extends mattress life, these beds provide superior structural integrity, multi-zone position profiling, and responsive stability.

Core Technical Specifications

California Proposition 65 Warning

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Core Technical Specifications

📋 Comprehensive Model Descriptions

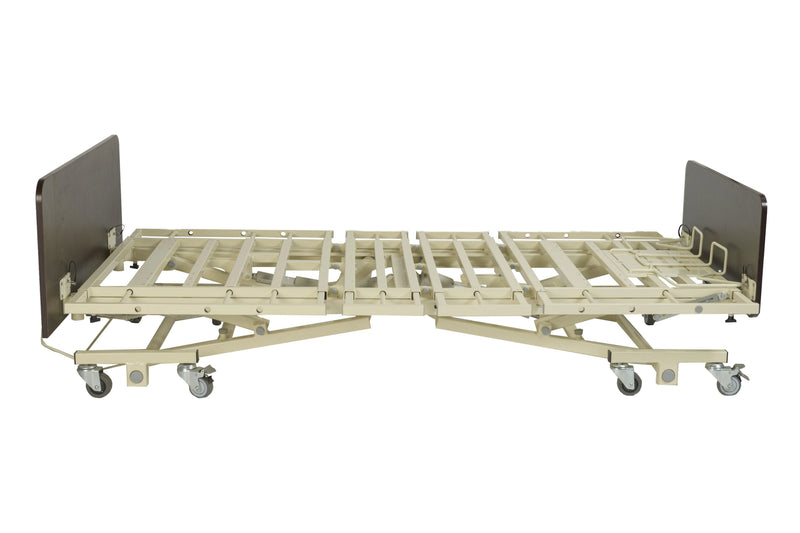

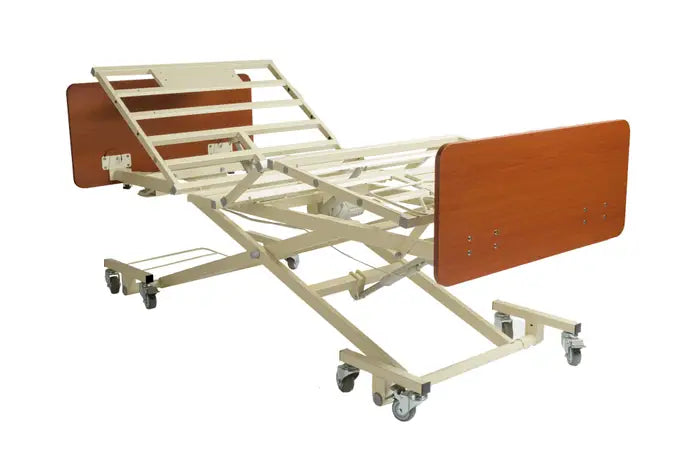

Protopia LTC Bed Package (SKU: PMLTC36-PKG)

The standard-setting foundation of the long-term care line, designed to optimize occupant safety and comfort. This premium system features a standard $36\text{-inch}$ fixed sleep surface width combined with a tool-free adjustable length extension track that scales smoothly to $80\text{ inches}$, $84\text{ inches}$, or $88\text{ inches}$. It features a low floor-clearance height setting of just $7\text{ inches}$ to mitigate roll-out injury risks, yet can elevate up to $30.5\text{ inches}$ to provide an ergonomic working height for caregivers. Built with an robust $500\text{ lbs}$ weight capacity, it delivers full-range articulation with exceptional structural stability.

Protopia EXP Bed Package (SKU: PMLTC36EXP-PKG)

An advanced, multi-width model engineered for ultimate facility versatility. The Protopia EXP features a integrated, tool-free expandable deck frame that easily scales in width from a standard $36\text{-inch}$ profile out to a spacious $42\text{ inches}$or a full $48\text{-inch}$ bariatric width layout. It shares the same customizable lengths ($80\text{"}/84\text{"}/88\text{"}$) and ultra-low safety travel profile down to $7\text{ inches}$ off the ground, but features an upgraded $550\text{ lbs}$ weight capacity and lifts up to $31\text{ inches}$ high, making it a flexible, all-in-one choice for changing care needs.

Protopia Bari EXP Bed Package (SKU: PMLTCBARI-PKG)

The heavy-duty, high-capacity bariatric sleep system designed for maximum structural reinforcement. Boasting an expansive $750\text{ lbs}$ weight capacity, the Bari EXP utilizes an ultra-reinforced steel frame with an integrated expanding width deck ($36\text{"}/42\text{"}/48\text{"}$) and lengthening channels ($80\text{"}/84\text{"}/88\text{"}$). To support higher physical demands safely, its height adjustment travel range is configured from a stable $9\text{ inches}$ at its lowest point up to a robust $28\text{ inches}$maximum elevation height, providing maximum strength without sacrificing smooth electronic control.

❓ Frequently Asked Questions (FAQ)

What does "expandable length and width" actually mean?

• Expandable Length: All three models feature built-in, tool-free extendable frame brackets. You can easily adjust the frame length between $80\text{ inches}$, $84\text{ inches}$, or $88\text{ inches}$ to accommodate taller individuals without buying a brand-new bed frame.

• Expandable Width: The EXP and Bari EXP models feature side expansion slides built into the deck. The bed can remain at a standard $36\text{-inch}$ width for small rooms, or button-released to expand outward to $42\text{ inches}$ or $48\text{ inches}$ for a wider, bariatric-support sleeping surface.

Do these packages include the headboards and footboards?

The packages include the full electronic structural bed frame and motor mechanisms. The matching laminate wood-grain head and foot boards, as well as safety rails or assist bars, are purchased as matching structural accessories to allow you to fully customize the final aesthetic and safety profile of your setup.

🔧 Accessories for this bed system: Shop Protopia Bed Accessories & Replacement Parts →

What are the power requirements and how does it handle power outages?

The Protopia series operates on standard $110\text{V–120V AC}$ wall outlets. The linear actuator control boxes feature an internal emergency backup power system. By installing a standard $9\text{V}$ battery directly into the module housing, the bed can still be lowered flat to safety during a power loss or emergency transition.

How do the casters lock to ensure the bed doesn't slide?

The frame utilizes high-impact, industrial-grade caster wheels that glide smoothly over hard floors or carpeting. For safety, the bed features a centralized rolling lock mechanism. Stepping down on the color-coded tabs securely anchors the wheels, preventing any lateral shifts or pivoting during individual transfers.

White Glove Delivery

White Glove Delivery includes delivery to your room of choice, complete frame assembly, motor and safety rail testing, and debris removal. Service applies to ground-floor setups or buildings with working freight elevators. Severe staircases or highly remote locations may require an additional custom quote post-purchase. Please reach out to our team if you have questions concerning White Glove Delivery.
