Span America PressureGuard APM2 Safety Supreme Mattress
Model: PressureGuard APM2 Safety Supreme (5 sizes)
Availability: In Stock – Ready to Ship
A Raised-Perimeter APM2 Mattress With Alternating Pressure and Lateral Rotation

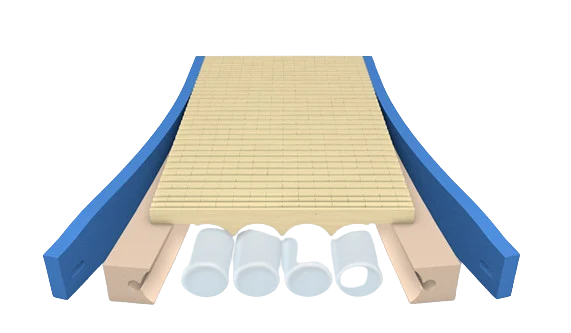

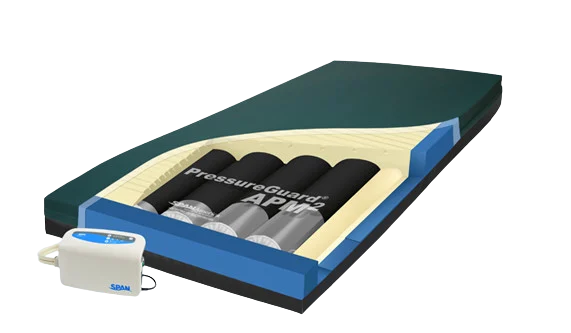

The Span America PressureGuard APM2 Safety Supreme is the raised-perimeter version of the APM2 powered mattress. On the 35-inch sizes it is 7 inches high in the center and rises to 9 inches along the sides, where raised foam wings define the edge of the sleep surface, with a lowered, padded opening for getting in and out of bed. Four head-to-foot air cylinders run beneath a Geo-Matt foam top of more than 800 articulating cells, and the Deluxe digital control unit runs them in one of two therapies, chosen with a recessed toggle switch: alternating pressure, in which cylinders 1 and 3 inflate while 2 and 4 deflate and then reverse on a 10-minute cycle, or lateral rotation, which turns the surface about 20° to each side. A Float mode gives continuous low-pressure support, and a 20-minute Auto Firm setting firms the surface for transfers and care before returning to the selected therapy.
The raised sides are built from Safety Edge bolsters, Shear Transfer Zone bands are built into the surface, and a tapered heel slope sits at the foot end. The stretch cover is fluid-resistant and wipes clean. The control unit has low-pressure and power-failure indicator lights with an audible alarm. The mattress weighs about 20 lbs, is rated to 350 lbs, and comes in 35-inch widths with 9-inch raised sides in 75, 80 and 84-inch lengths, plus 42-inch widths in 80 and 84-inch lengths. Each system ships with the mattress and the Deluxe digital control unit.
Key Features
- Raised 9″ perimeter — 35″ sizes; lowered, padded entry opening
- Alternating pressure or lateral rotation — selected with a recessed toggle
- 10-minute alternating cycle — cylinders 1 and 3, then 2 and 4
- Lateral rotation — about 20° to each side
- Float mode and 20-minute Auto Firm
- Four head-to-foot air cylinders — under a Geo-Matt foam top
- Safety Edge bolsters and heel slope
- Fluid-resistant, wipe-clean stretch cover
- Low-pressure and power-failure alarms — lights plus audible alarm
- 350 lb weight capacity — five sizes, 35 or 42″ wide
- Complete system — mattress and Deluxe digital control unit
- 18-month warranty — all components
Available Add-Ons
- Spare Deluxe digital control unit (5900) — a replacement or backup unit for an existing PressureGuard APM2 mattress.
Need help with setup? White glove setup is available if needed. See our White Glove Setup Service.
Equipment Specialist Insight: The raised sides are part of the foam mattress, not bed rails: they define the edge of the sleep surface but are not a substitute for rails or supervision where those are needed, and on the 35″ sizes they add 2″ of height at the edges, so check how any bed rails sit against them. Position the mattress so the entry opening is on the side the user gets in and out from. All sizes are rated to 350 lbs. Hang the control unit at the foot of the bed and plug it directly into a wall outlet. Use Auto Firm before transfers and repositioning. A clinician should decide whether alternating pressure or lateral rotation suits the user.
Technical Specifications
| Brand | Span America |
| Model | PressureGuard APM2 Safety Supreme |
| SAF5875-29 | 75″ L × 35″ W; 7″ center, 9″ sides |
| SAF5880-29 | 80″ L × 35″ W; 7″ center, 9″ sides |
| SAF5884-29 | 84″ L × 35″ W; 7″ center, 9″ sides |
| 37890 | 80″ L × 42″ W; 7″ center and sides |
| 33530 | 84″ L × 42″ W; 7″ center and sides |
| Weight Capacity | 350 lbs |
| Mattress Weight | About 20 lbs |
| Therapy | Alternating pressure (10-minute cycle); lateral rotation (about 20°); Float; 20-minute Auto Firm |
| Air System | Four head-to-foot air cylinders |
| Top Surface | Geo-Matt foam, 800+ articulating cells; Shear Transfer Zone bands; heel slope |
| Perimeter | Raised Safety Edge wings (9″ on 35″ sizes); lowered, padded entry opening |
| Cover | Stretch fabric with Shear Transfer Zone bands; fluid-resistant; wipe-clean |
| Alarms | Low-pressure and power-failure lights; audible alarm |

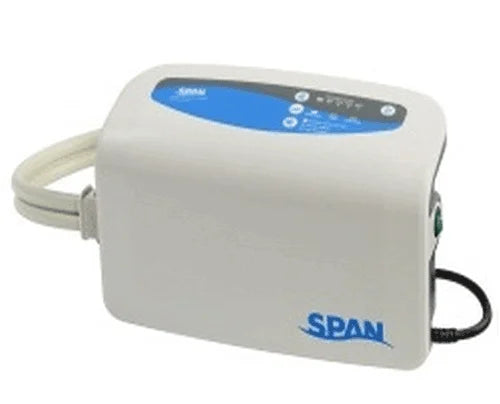

| Control Unit (5900) | Deluxe digital; 12 × 7 × 5 in; 6.3 lbs; 120 V, 60 Hz, 1 A; UL listed |
| Included | Mattress and Deluxe digital control unit |
| Warranty | 18 months, all components |
Frequently Asked Questions
What is included?
Each system includes the mattress in your chosen size and the Deluxe digital control unit. A spare control unit is available as an add-on on this page.
Can I switch between alternating pressure and lateral rotation?
Yes. A recessed toggle switches between the two therapies. Float and Auto Firm are set on the digital control unit.
What does the raised perimeter do?
On the 35″ sizes, the foam sides rise to 9″ while the center stays at 7″, defining the edge of the sleep surface, with a lowered, padded opening for getting in and out of bed. The raised sides are not bed rails.
How is it different from the APM2 Deluxe?
It is the same APM2 air system and Deluxe digital control unit, with a raised perimeter and entry opening added on the 35″ sizes.
Can I return it if it isn’t right?
No. For hygiene reasons this mattress system is final sale and cannot be returned, exchanged or refunded once it has shipped. Please check the size, weight rating and therapy placement before ordering, and ask us if you are unsure.
Please note: this item is final sale. For hygiene reasons, mattress systems cannot be returned, exchanged or refunded once they have shipped, and this includes mattresses that have been unpacked, set up or tried. Please confirm the bed deck size, weight rating and any therapy placement before ordering.
Specifications are compiled from manufacturer and vendor documentation and are subject to change without notice. Verify current details before purchase. Information on this page is for general reference only and is not a substitute for professional medical advice. Powered support surfaces should be selected with a healthcare provider and set up and operated according to the manufacturer’s instructions, including bed rail guidance.
