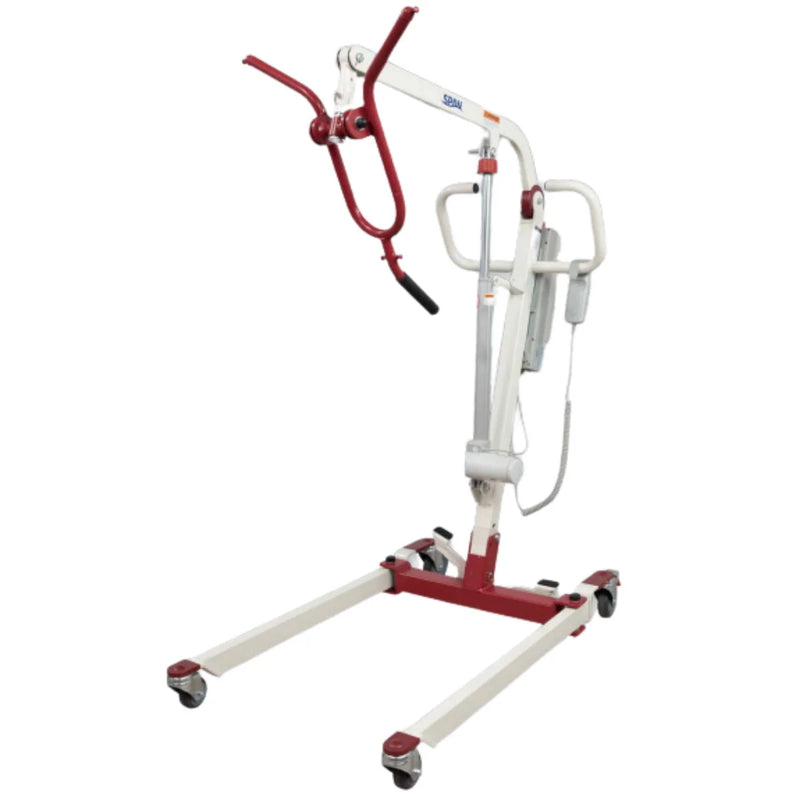

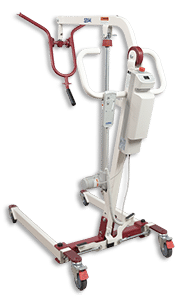

Span America F350CT Car Transfer Patient Lift - 350 lb
Model: F350CT Car Transfer Patient Lift
Availability: In Stock – Ready to Ship
A Powered Patient Lift Made for Car Transfers, Plus Chair, Bed and Floor Lifts
The Span America F350CT is a powered full-body patient lift designed mainly for moving a person into and out of a car, and it also handles transfers between a chair and bed and lifts from the floor. Its patented spreader bar design lets the caregiver position the person precisely with minimal swinging, which matters when guiding someone into a vehicle seat. The lift is rated to 350 lbs, with a lift range of 22.2 to 64.7 inches at the spreader bar, and it folds for storage and transport.
The base opens from 27.6 inches closed to 32 inches between the legs, and foot-operated locking rear casters hold it in place during the transfer. A quick-release battery charges in place with the included plug-in charger or on an optional charging cradle, and a backlit LCD shows battery level with an audible low-battery alert. Overload protection gives visual and audible alerts and stops lifting above capacity, and a manual emergency lowering function lowers the person if power is lost. The lift weighs 95 lbs and assembles with the tools provided. Slings are sold separately.
Key Features

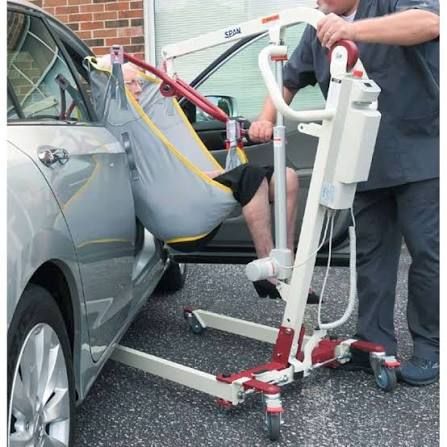

- Designed for car transfers — also chair-to-bed and floor-to-chair
- Patented spreader bar — precise positioning with minimal motion
- 350 lb weight capacity
- Lift range 22.2–64.7″ — includes lifting from the floor

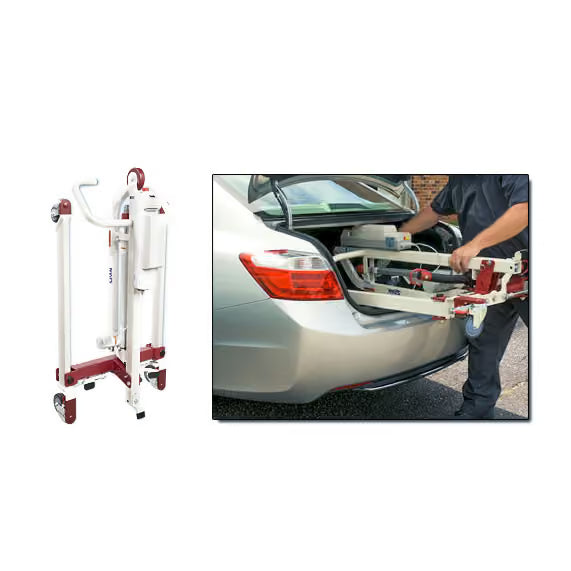

- Folds for storage and transport
- Adjustable base — 27.6″ closed to 32″ open inside the legs

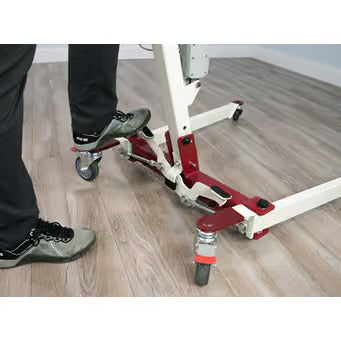

- Foot-operated locking rear casters
- Quick-release battery — charge in place or on an optional cradle; LCD battery display
- Overload protection and manual emergency lowering
- Warranty — frame and spreader bar 3 years; electronics 2 years; battery 1 year
Need help with assembly? White glove setup is available if needed. See our White Glove Setup Service.
Equipment Specialist Insight: Before relying on the F350CT for car transfers, try it with the actual vehicle: check that the base can roll close enough to the open door on the driveway or garage floor, and that the boom reaches the seat with the door fully open. Measure the vehicle seat height and confirm it falls within the 22.2–64.7″ lift range. Lock the rear casters before lifting, and lower the person slowly onto the seat. Choose a sling sized for the user; slings are sold separately. Depending on the user’s assessment, two caregivers may be needed.
Technical Specifications
| Brand | Span America |
| Model | F350CT Car Transfer Patient Lift |
| Weight Capacity | 350 lbs (160 kg) |
| Lift Range | 22.2″ minimum; 64.7″ maximum (with spreader bar) |
| Base Length | 41″ |
| Base Width | 27.6″ closed (external); 32″ open (inside legs) |
| Mast Height | 47.3″ |
| Lift Weight | 95 lbs (43 kg) |
| Spreader Bar | Patented design for precise positioning |
| Casters | Foot-operated locking rear casters |
| Battery | Quick-release; plug-in charger included; optional charging cradle; backlit LCD; low-battery alert |
| Safety | Overload protection with alerts; manual emergency lowering |
| Portability | Folds for storage and transport |
| Certifications | ISO 10535; IEC/EN/ANSI/AAMI/CAN/CSA-C22.2 60601-1, 60601-1-2, 60601-1-11; SGS Mark |
| Slings | Sold separately |
| Warranty | Frame and spreader bar 3 years; electronics 2 years; battery 1 year |
Frequently Asked Questions
What makes it a car transfer lift?
Its patented spreader bar lets the caregiver position the person precisely with minimal motion, which helps when guiding someone into or out of a vehicle seat. It also works for chair, bed and floor transfers.
Can it lift someone from the floor?
Yes. The lift range starts at 22.2″ at the spreader bar.
Can it be transported?
It folds for storage and transport. It weighs 95 lbs.
Is a sling included?
No. Slings are sold separately; choose one sized for the user.
Specifications are compiled from manufacturer and vendor documentation and are subject to change without notice. Verify current details before purchase. Information on this page is for general reference only and is not a substitute for professional medical advice. Patient lifts should be operated by trained caregivers; consult a healthcare provider or therapist for sling selection and transfer technique, and follow the manufacturer’s instructions.
