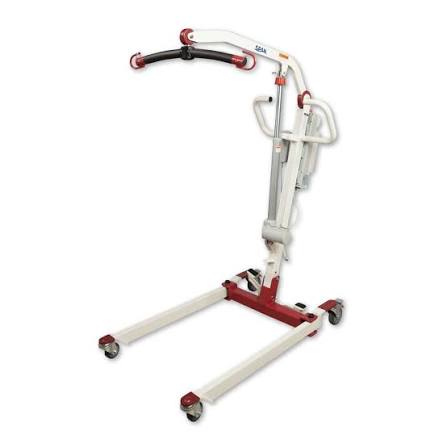

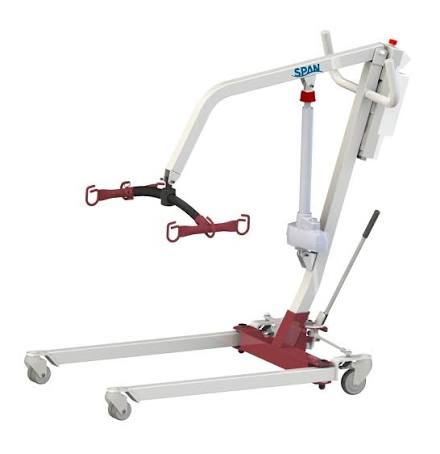

Span America F400 Foldable Power Patient Lift - 400 lb
Model: F400 Foldable Patient Lift
Availability: In Stock – Ready to Ship
A 400 lb Powered Full-Body Lift That Folds for Storage and Travel

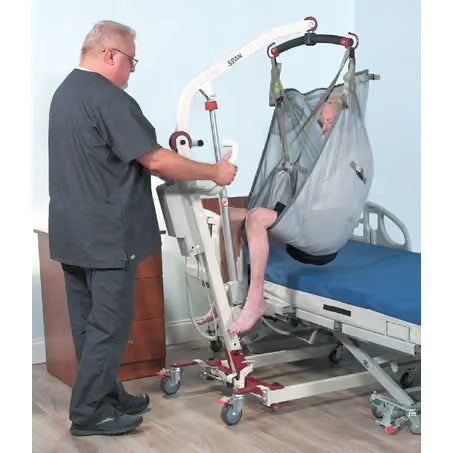

The Span America F400 is a powered full-body patient lift that folds down for storage in a closet or for travel, so it can go where the user goes. It is rated to 400 lbs, including the sling, and its lift range runs from 18.5 to 67.2 inches at the spreader bar, low enough to lift a person from the floor. An electric actuator raises and lowers the boom from a hand control, and a 6-point spreader bar works with a wide range of sling styles, attaching by clips or loops.
The base opens from 27.6 inches closed to 32 inches between the legs, and the legs can be spread to get around obstacles such as chair bases. The base stands 4.7 inches high, and foot-operated locking rear casters hold the lift in place during transfers. A quick-release battery charges on the lift with the included plug-in charger or on an optional charging cradle, and a backlit LCD shows battery level with an audible low-battery alert. Overload protection gives visual and audible alerts and stops lifting above capacity, and a manual emergency lowering function lowers the person if power is lost. The lift weighs 90 lbs and assembles with the tools provided. Slings are sold separately.
Key Features
- Folds for storage and travel
- 400 lb weight capacity — including the sling

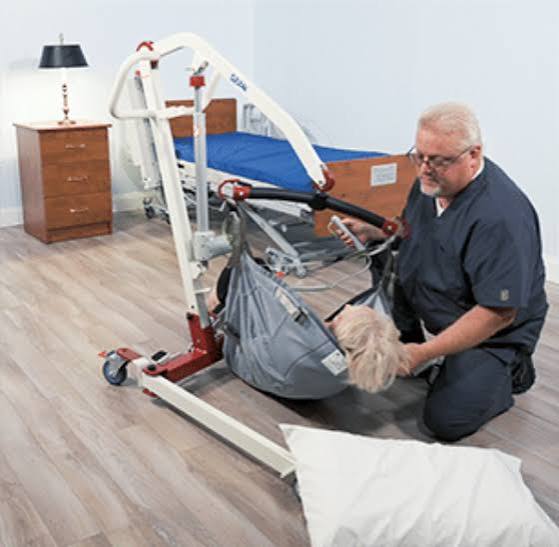

- Lift range 18.5–67.2″ — includes lifting from the floor
- 6-point spreader bar — clip or loop slings
- Adjustable base — 27.6″ closed to 32″ open inside the legs
- 4.7″ base height
- Foot-operated locking rear casters
- Quick-release battery — charge on the lift or on an optional cradle; LCD display
- Overload protection and manual emergency lowering
- Warranty — frame and spreader bar 3 years; electronics 2 years; battery 1 year
Need help with assembly? White glove setup is available if needed. See our White Glove Setup Service.
Equipment Specialist Insight: The F400 suits households and caregivers who need a full-body lift that can be put away or taken along. If it will travel by car, fold it and check that it fits the trunk or cargo area before relying on it, and remember it weighs 90 lbs. Confirm that the 4.7″ base slides under the bed frame and that the base, open to 32″, fits around the chair or commode. Use it on a flat, dry floor, and avoid storing it long-term in humid rooms such as bathrooms. Choose a sling sized for the user and compatible with a 6-point bar; slings are sold separately. Depending on the user’s assessment, two caregivers may be needed.
Technical Specifications
| Brand | Span America |
| Model | F400 Foldable Patient Lift |
| Weight Capacity | 400 lbs (182 kg), including sling |
| Lift Range | 18.5″ minimum; 67.2″ maximum (with spreader bar) |
| Base Length | 41″ |
| Base Width | 27.6″ closed (external); 32″ open (inside legs) |
| Base Height | 4.7″ |
| Mast Height | 48.3″ |
| Lift Weight | 90 lbs (41 kg) |
| Spreader Bar | 6-point; clip or loop slings |
| Casters | Foot-operated locking rear casters |
| Battery | Quick-release; plug-in charger included; optional charging cradle; backlit LCD; low-battery alert |
| Safety | Overload protection with alerts; manual emergency lowering |
| Portability | Folds for storage and transport |
| Certifications | ISO 10535; IEC/EN/ANSI/AAMI/CAN/CSA-C22.2 60601-1, 60601-1-2, 60601-1-11; SGS Mark |
| Slings | Sold separately |
| Warranty | Frame and spreader bar 3 years; electronics 2 years; battery 1 year |
Frequently Asked Questions
Will it fit in my car?
It folds for transport, but folded dimensions are not published. Fold it and test it in your trunk or cargo area, or ask us to confirm the folded size before ordering.
Can it lift someone from the floor?
Yes. The lift range starts at 18.5″ at the spreader bar.
What slings work with it?
Slings that fit a 6-point spreader bar, with clip or loop attachments. Slings are sold separately; choose one sized for the user.
How is it different from the F500P?
The F400 folds for storage and travel and is rated to 400 lbs. The F500P is a non-folding lift rated to 500 lbs.
Specifications are compiled from manufacturer and vendor documentation and are subject to change without notice. Verify current details before purchase. Information on this page is for general reference only and is not a substitute for professional medical advice. Patient lifts should be operated by trained caregivers; consult a healthcare provider or therapist for sling selection and transfer technique, and follow the manufacturer’s instructions.
