Span America F500P Full Body Power Patient Lift - 500 lb
Model: F500P Full Body Power Patient Lift
Availability: In Stock – Ready to Ship
A 500 lb Powered Full-Body Floor Lift With a 6-Point Spreader Bar and Swap-Out Battery

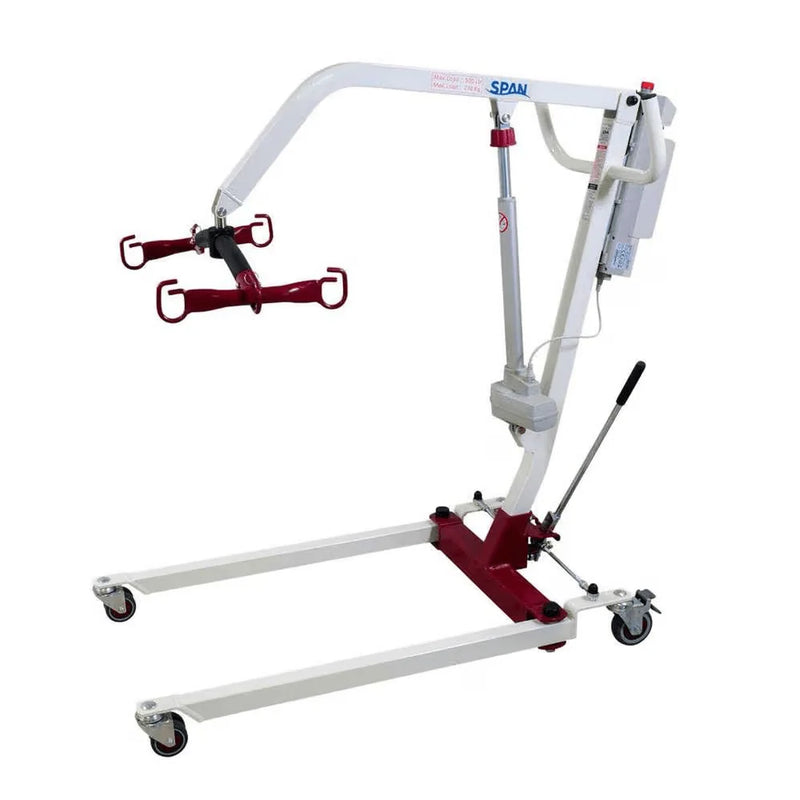

The Span America F500P is a powered mobile floor lift for full-body transfers, rated to 500 lbs. An electric actuator raises and lowers the boom from a two-button hand pendant with an LED indicator, and a second set of controls on the lift itself lets caregivers keep working if the pendant is lost or damaged. A backlit LCD display shows status and battery level during use, and an audible alert warns when the battery is running low. The lift range runs from 25.8 to 69.1 inches, and the lift can raise a person from the floor.
The 6-point spreader bar works with a wider range of sling styles than a standard 2- or 4-point bar. The base legs widen with a leg-opening handle from 24.9 to 42.9 inches and lock in place, and the base stands 4.5 inches high. The quick-release battery can be swapped out, charged in place with the included plug-in charger, or charged on an optional charging cradle. Overload protection alerts the caregiver and stops lifting above the rated capacity, and a manual emergency lowering function lowers the person if power is lost. The lift weighs 99 lbs and assembles with the tools provided. Slings are sold separately.
Key Features
- 500 lb weight capacity
- Powered lift — two-button pendant plus backup controls on the lift
- Backlit LCD display — with battery level and low-battery alert
- Lift range 25.8–69.1″ — includes lifting from the floor
- 6-point spreader bar — compatible with more sling styles
- Adjustable base — 24.9″ closed to 42.9″ open, locks in place
- 4.5″ base height
- Quick-release battery — charge in place or on an optional cradle
- Overload protection and manual emergency lowering
- Warranty — frame 3 years; electronics 2 years; battery 1 year
Need help with assembly? White glove setup is available if needed. See our White Glove Setup Service.
Equipment Specialist Insight: A full-body lift suits users who cannot bear weight or help with the transfer. Before ordering, check that the 4.5″ base clears the bed frame or chair base and that the base, open to 42.9″, fits around the chair or commode it will be used with. Choose a sling sized for the user and compatible with a 6-point spreader bar; slings are sold separately. Keep a charged spare battery or the charging cradle handy if the lift is used often. Depending on the user’s assessment, two caregivers may be needed for transfers, and caregivers should be trained on the lift and sling before first use.
Technical Specifications
| Brand | Span America |
| Model | F500P Full Body Power Patient Lift |
| Weight Capacity | 500 lbs |
| Lift Range | 25.8″ minimum; 69.1″ maximum |
| Base Leg Length | 44.9″ |
| Base Width | 24.9″ closed; 42.9″ open |
| Base Height | 4.5″ |
| Mast Height | 48.3″ |
| Lift Weight | 99 lbs |
| Spreader Bar | 6-point |
| Controls | Two-button hand pendant with LED; backup controls on the lift; backlit LCD display |
| Battery | Quick-release; plug-in charger included; optional charging cradle; low-battery alert |
| Safety | Overload protection; manual emergency lowering |
| Certifications | ISO 10535; IEC/EN/ANSI/AAMI/CAN/CSA-C22.2 60601-1, 60601-1-2, 60601-1-11 |
| Slings | Sold separately |
| Warranty | Frame 3 years; electronics 2 years; battery 1 year |
Frequently Asked Questions
Can it lift someone from the floor?

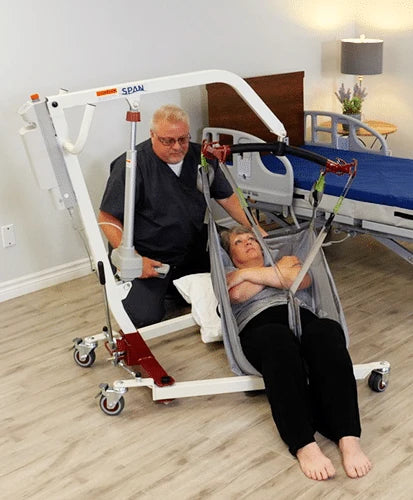

Yes. The lift range starts at 25.8″, low enough for floor lifts, and goes up to 69.1″.
What slings does it use?
It has a 6-point spreader bar, which works with a wider range of sling styles. Slings are sold separately; choose one sized for the user.
What happens if the battery runs out mid-lift?
An audible alert warns when the battery is low, and a manual emergency lowering function lowers the person if power is lost.
Does it come assembled?
It assembles with the tools provided. White glove setup is available if you would like help.
Specifications are compiled from manufacturer and vendor documentation and are subject to change without notice. Verify current details before purchase. Information on this page is for general reference only and is not a substitute for professional medical advice. Patient lifts should be operated by trained caregivers; consult a healthcare provider or therapist for sling selection and transfer technique, and follow the manufacturer’s instructions.
