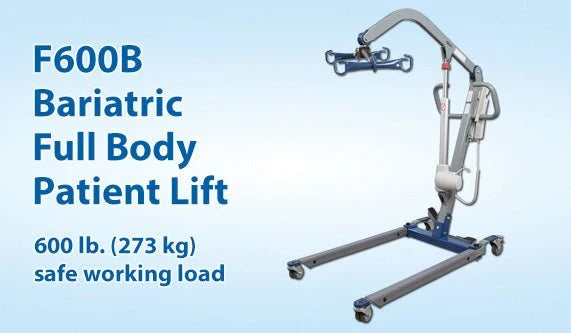

Span America F600B Bariatric Full Body Lift - 600 lb
Model: F600B Bariatric Full Body Patient Lift
Availability: In Stock – Ready to Ship
A 600 lb Powered Bariatric Floor Lift With a 6-Point Spreader Bar and Foot-Pedal Base

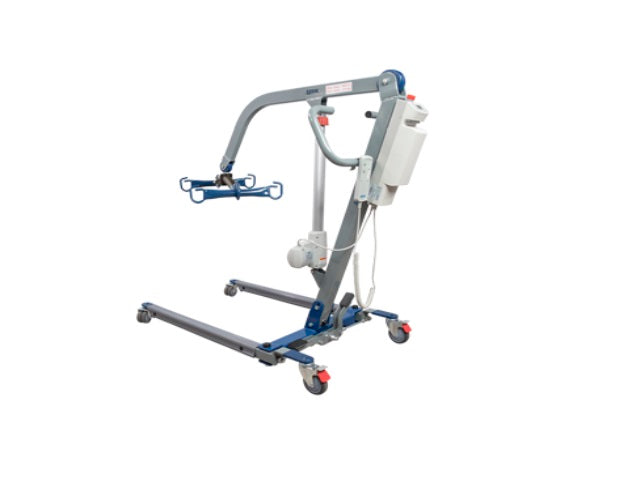

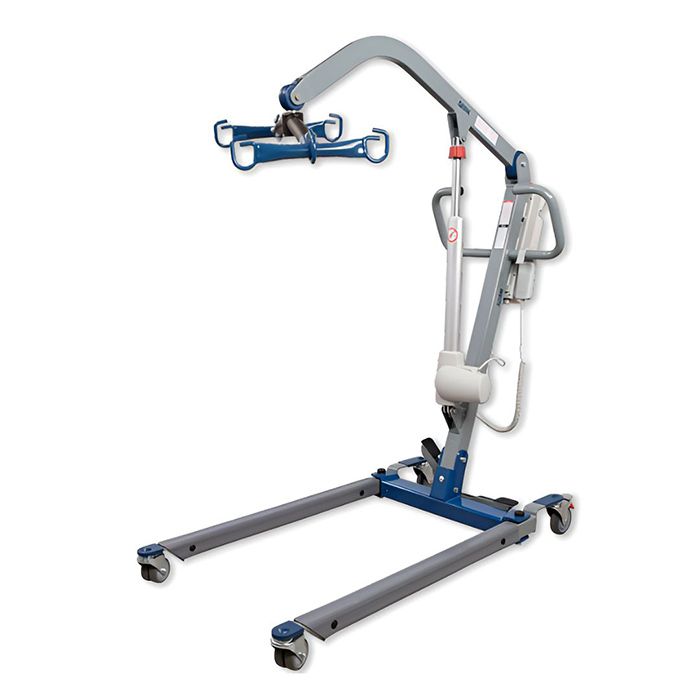

The Span America F600B is a powered full-body floor lift rated to 600 lbs, sized for bariatric users but also usable for lighter users. An electric actuator raises and lowers the boom from a two-button hand pendant with an LED indicator, and a second set of up and down buttons on the control unit lets caregivers keep working if the pendant is lost or damaged. A backlit LCD shows battery level, and an audible alert warns when the battery is low. The lift range runs from 21.5 to 68.6 inches at the spreader bar, and the lift can raise a person from the floor.
The 6-point spreader bar accepts loop slings in 4, 6 or 8-strap patterns. A foot pedal opens the base from 26.4 inches closed to 39.3 inches between the legs, the base stands 4.7 inches high, and dual front casters and foot-locking rear casters help with steering and holding position. The 24 V, 5 Ah quick-release battery charges in place with the included plug-in charger or on an optional charging cradle. A red emergency-stop button, manual emergency lowering and overload protection, which alerts the caregiver and stops lifting above capacity, round out the safety features. The lift weighs 123 lbs and assembles with the tools provided. Slings are sold separately, and a digital scale is available as an option.
Key Features
- 600 lb weight capacity — for bariatric and non-bariatric users
- Powered lift — two-button pendant plus backup controls
- Backlit LCD — battery level and low-battery alert
- Lift range 21.5–68.6″ — includes lifting from the floor
- 6-point spreader bar — loop slings in 4, 6 or 8-strap patterns
- Foot-pedal base — 26.4″ closed to 39.3″ open inside the legs
- Dual front casters and foot-locking rear casters
- 24 V, 5 Ah quick-release battery — charge in place or on an optional cradle
- Emergency stop, manual emergency lowering and overload protection
- Warranty — frame 3 years; electronics 2 years; battery 1 year
Need help with assembly? White glove setup is available if needed. See our White Glove Setup Service.

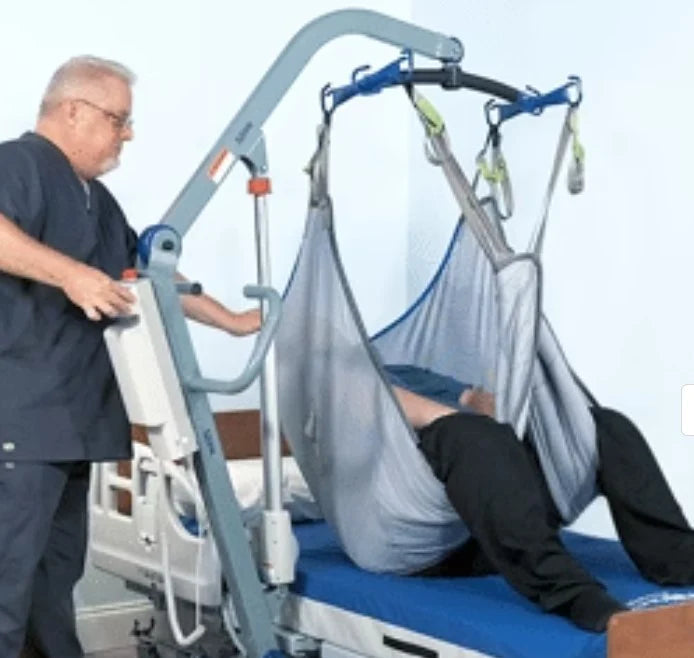

Equipment Specialist Insight: Check the room before ordering: the F600B has a 46.9″ base and opens to 39.3″ inside the legs, so measure doorways, turning space and the chair or commode it will be used with, and confirm the 4.7″ base slides under the bed frame. Choose a loop sling sized for the user and rated for their weight; slings are sold separately. Keep a spare battery or the charging cradle on hand if the lift is used throughout the day. Depending on the user’s assessment, two or more caregivers may be needed, and everyone using the lift should be trained on it before the first transfer.
Technical Specifications
| Brand | Span America |
| Model | F600B Bariatric Full Body Patient Lift |
| Weight Capacity | 600 lbs (273 kg) |
| Lift Range | 21.5″ minimum; 68.6″ maximum (with spreader bar) |
| Base Length | 46.9″ |
| Base Width | 26.4″ closed (external); 39.3″ open (inside legs) |
| Base Height | 4.7″ |
| Mast Height | 51.3″ |
| Lift Weight | 123 lbs (56 kg) |
| Spreader Bar | 6-point; loop slings in 4, 6 or 8-strap patterns |
| Controls | Two-button pendant with LED; backup controls on the control unit; backlit LCD |
| Base Adjustment | Foot pedal |
| Casters | Dual front casters; foot-locking rear casters |
| Battery | 24 VDC, 5 Ah quick-release; plug-in charger included; optional charging cradle |
| Safety | Emergency stop; manual emergency lowering; overload protection with alerts |
| Options | Digital scale; spare battery; charging cradle |
| Certifications | ISO 10535; IEC/EN/ANSI/AAMI/CAN/CSA-C22.2 60601-1, 60601-1-2, 60601-1-11; SGS Mark |
| Slings | Sold separately |
| Warranty | Frame and spreader bar 3 years; electronics 2 years; battery 1 year |
Frequently Asked Questions
Can it be used for users who are not bariatric?
Yes. It is rated to 600 lbs but works for lighter users too. Choose a sling sized for the person.
Can it lift someone from the floor?
Yes. The lift range starts at 21.5″ at the spreader bar, low enough for floor lifts.
What slings does it use?
Loop slings, attached to the 6-point spreader bar in 4, 6 or 8-strap patterns. Slings are sold separately.
What happens if the power fails during a lift?
The lift has a manual emergency lowering function to lower the person safely, plus an emergency-stop button and an audible low-battery alert.
