Span America Geo-Mattress HC Home Care Foam Mattress
Model: Geo-Mattress HC (SP812-29 / SP810-29 / SP811-29)
Availability: In Stock – Ready to Ship
A 5-Inch Three-Zone Foam Mattress Made for Home Care Beds
The Span America Geo-Mattress HC is a non-powered foam mattress for home care beds. It is cut from a single 5-inch layer of combustion-modified foam, with a cross-cut top surface divided into three distinct zones. The cut cells flex individually to conform to the body, which helps redistribute pressure across the surface. It supports users up to 250 lbs, and it can be rotated head to foot for even wear.

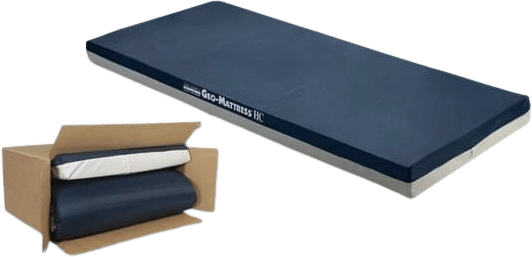

The cover is fluid-proof nylon and vinyl that is fire resistant, tear resistant, cleanable and replaceable, with a pleated design that integrates with the mattress to minimize hammocking. At about 17 lbs, the mattress ships folded and boxed, which makes it easier to bring into a home. It comes in three lengths — 75, 80 and 84 inches — all 35 inches wide and 5 inches high.
Key Features
- Single 5″ layer of combustion-modified foam
- Three-zone cross-cut top — cells conform to the body to help redistribute pressure
- 250 lb weight capacity
- Fluid-proof nylon and vinyl cover — fire- and tear-resistant, cleanable, replaceable
- Pleated, integrated cover design — minimizes hammocking
- Rotates head to foot — for even wear
- Lightweight — about 17 lbs; ships folded and boxed
- Three lengths — 75″, 80″ or 84″; all 35″ wide
- Non-powered — no pump or electrical connection
- 2-year non-prorated warranty
Equipment Specialist Insight: Measure the bed deck and choose the length that fills it, so there are no large gaps at the head, foot or sides. The Geo-Mattress HC is rated to 250 lbs and does not have a heel slope; for heavier users, or if a heel slope is wanted, the Geo-Mattress 350 offers a 350 lb capacity with a 6″ segmented top and heel slope. Rotate the mattress head to foot periodically for even wear. Clean the cover with mild soap and lukewarm water, wipe with a damp cloth and let it air dry; do not immerse the mattress or launder the cover.
Technical Specifications
| Brand | Span America |
| Model | Geo-Mattress HC |
| SP812-29 | 75″ L × 35″ W × 5″ H |
| SP810-29 | 80″ L × 35″ W × 5″ H |
| SP811-29 | 84″ L × 35″ W × 5″ H |
| Weight Capacity | 250 lbs |
| Mattress Weight | About 17 lbs |
| Construction | Single layer of combustion-modified foam; three-zone cross-cut top |
| Heel Slope | Not included |
| Cover | Fluid-proof nylon and vinyl; fire resistant, tear resistant, cleanable, replaceable; pleated |
| Power | Non-powered |
| Flammability | NFPA 101 (ASTM E1590); Cal TB 117; 16 CFR 1632 and 1633 |
| HCPCS | E0184 |
| Care | Mild soap and lukewarm water; wipe with damp cloth; air dry. Do not immerse or launder the cover. |
| Warranty | 2 years, non-prorated |
| Shipping Format | Folded and boxed |
Frequently Asked Questions
Which length do I need?
Measure the bed deck. The mattress comes in 75″, 80″ and 84″ lengths, all 35″ wide and 5″ high. Choose the one that fills the deck with the smallest gaps.

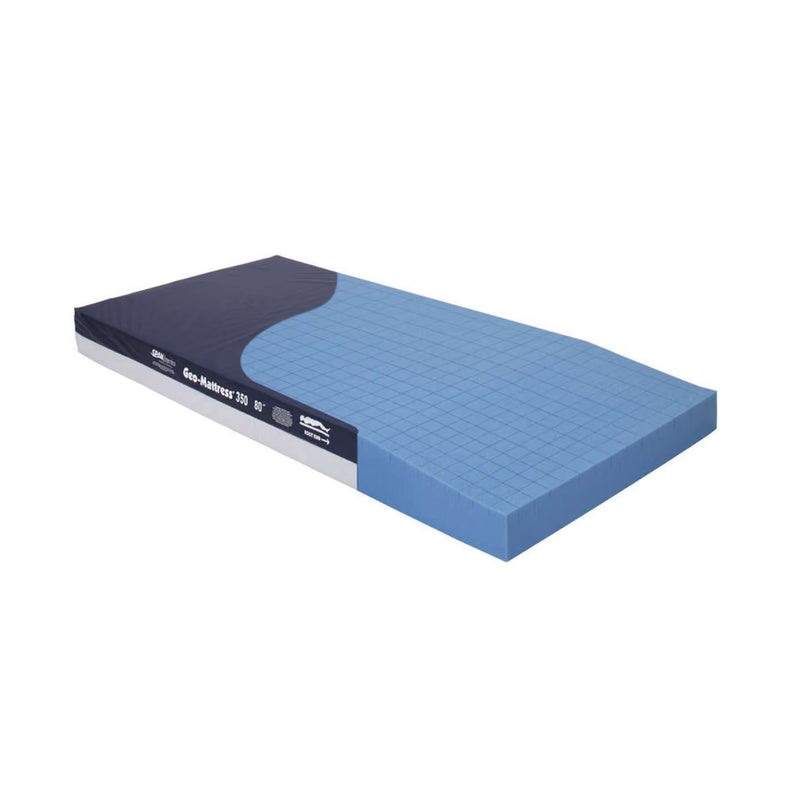

How is it different from the Geo-Mattress 350?
The HC is 5″ high with a three-zone top and a 250 lb capacity. The Geo-Mattress 350 is 6″ high with a segmented top, a heel slope and a 350 lb capacity.
Does it need power?
No. It is a non-powered foam mattress, with no pump or electrical connection.
How do I clean it?
Wipe the cover with mild soap and lukewarm water, rinse with a damp cloth and air dry. Do not immerse the mattress or launder the cover. The cover is replaceable if damaged.
Specifications are compiled from manufacturer and vendor documentation and are subject to change without notice. Verify current details before purchase. Information on this page is for general reference only and is not a substitute for professional medical advice. Consult a healthcare provider about support surface selection, and follow the bed and mattress manufacturers’ instructions, including bed rail guidance.
⚠️ WARNING (California Proposition 65): This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
