Span America Geo-Mattress Plus FP Firm Perimeter Mattress
Model: Geo-Mattress Plus FP (6 sizes, 35″ and 42″ wide)
Availability: In Stock – Ready to Ship
A Dual-Layer Foam Mattress With a Geo-Matt Top and a Firm Edge for Sitting and Transfers

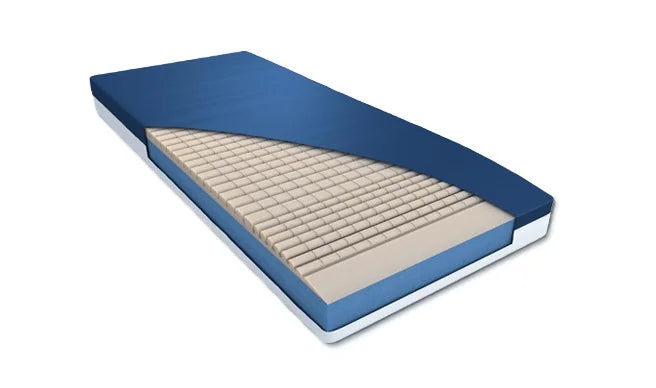

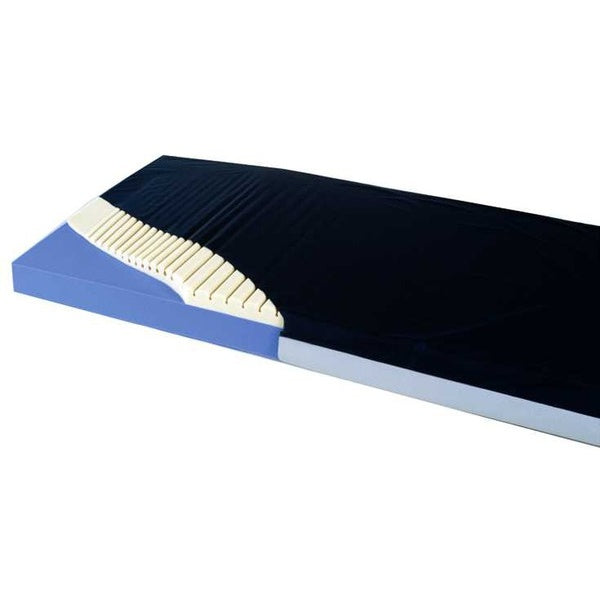

The Span America Geo-Mattress Plus FP is the firm-perimeter version of the Geo-Mattress Plus, a 6-inch non-powered foam mattress. It is built from two layers of progressive-resistance foam: a soft, high-performance top layer that lets the body settle in, over a firmer bottom layer for stability. On top is a 2-inch Geo-Matt segmented layer of more than 800 individually articulating cells, in head, torso and foot zones, which conform to the body to help redistribute pressure, with Ring-of-Air channels that help carry heat and moisture away. A firmer edge along the sides gives a steadier surface for sitting on the side of the bed and for transfers.
A tapered heel slope at the foot end is designed to shift load from the heels onto the lower legs. The cover has a fluid-proof, wipe-clean, bacteriostatic top, a tri-laminate bottom and a hidden zipper. The Plus FP weighs about 22 lbs and comes in six sizes: four 35-inch-wide lengths rated to 400 lbs, and two 42-inch-wide lengths rated to 500 lbs for expanded bed decks.
Key Features
- Firm perimeter — firmer edge for sitting and transfers
- Dual-layer progressive-resistance foam — soft top layer over a firmer base
- Geo-Matt segmented top — 2″ layer, 800+ cells in head, torso and foot zones
- Ring-of-Air channels — help carry heat and moisture away
- Heel slope — tapered foot end shifts load from the heels to the lower legs
- Up to 500 lb weight capacity — 400 lbs for 35″ widths; 500 lbs for 42″
- Six sizes — 35″ or 42″ wide; 75–84″ long
- Fluid-proof, bacteriostatic cover — tri-laminate bottom, hidden zipper
- Non-powered — no pump or air hose
- 6-year non-prorated core warranty — 2 years on the cover
Equipment Specialist Insight: Choose the width to match both the bed deck and the user: 35″ sizes are rated to 400 lbs, and the 42″ sizes, rated to 500 lbs, fit expanded 42″ decks such as the Span America Encore. Then pick the length that fills the deck. The firm edge suits users who sit on the side of the bed or transfer in and out regularly. Compared with the single-layer Geo-Mattress Pro FP (300 lbs), the Plus adds a second foam layer and a higher weight rating. Wipe the cover clean with a facility-approved disinfectant.
Technical Specifications
| Brand | Span America |
| Model | Geo-Mattress Plus FP (Firm Perimeter) |
| PL7535FP-29 | 75″ L × 35″ W × 6″ H; 400 lbs |
| PL7835FP-29 | 78″ L × 35″ W × 6″ H; 400 lbs |
| PL8035FP-29 | 80″ L × 35″ W × 6″ H; 400 lbs |
| PL8435FP-29 | 84″ L × 35″ W × 6″ H; 400 lbs |
| PL8042FP-29 | 80″ L × 42″ W × 6″ H; 500 lbs |
| PL8442FP-29 | 84″ L × 42″ W × 6″ H; 500 lbs |
| Mattress Weight | About 22 lbs |
| Construction | Dual-layer progressive-resistance foam; 2″ Geo-Matt segmented top (800+ cells; head, torso and foot zones); Ring-of-Air; heel slope; firm perimeter |
| Cover | Fluid-proof, wipe-clean, bacteriostatic top; tri-laminate bottom; hidden zipper; vapor barrier |
| Power | Non-powered |
| Flammability | NFPA 101 (ASTM E1590); Cal TB 117; 16 CFR 1632 and 1633 |
| Warranty | Core: 6 years, non-prorated. Cover: 2 years. |
Frequently Asked Questions
What does FP mean?
Firm Perimeter. The Plus FP has a firmer edge along the sides, for sitting on the side of the bed and for transfers.
What weight capacity does each size have?
35″-wide sizes are rated to 400 lbs, and 42″-wide sizes to 500 lbs.
How is it different from the Geo-Mattress Pro FP?
The Plus uses two layers of foam, a soft top over a firmer base, and is rated to 400–500 lbs with a 6-year core warranty. The Pro FP is a single layer of zoned foam rated to 300 lbs with a 5-year core warranty.
Does it need power?
No. It is a non-powered foam mattress, with no pump or air hose.
Specifications are compiled from manufacturer and vendor documentation and are subject to change without notice. Verify current details before purchase. Information on this page is for general reference only and is not a substitute for professional medical advice. Consult a healthcare provider about support surface selection, and follow the bed and mattress manufacturers’ instructions, including bed rail guidance.
