Span America Geo-Mattress Plus Dual-Layer Foam Mattress
Model: Geo-Mattress Plus (11 sizes, 32–76″ wide)
Availability: In Stock – Ready to Ship
A Dual-Layer Foam Mattress With a Geo-Matt Top, From Hospital Bed to King Size

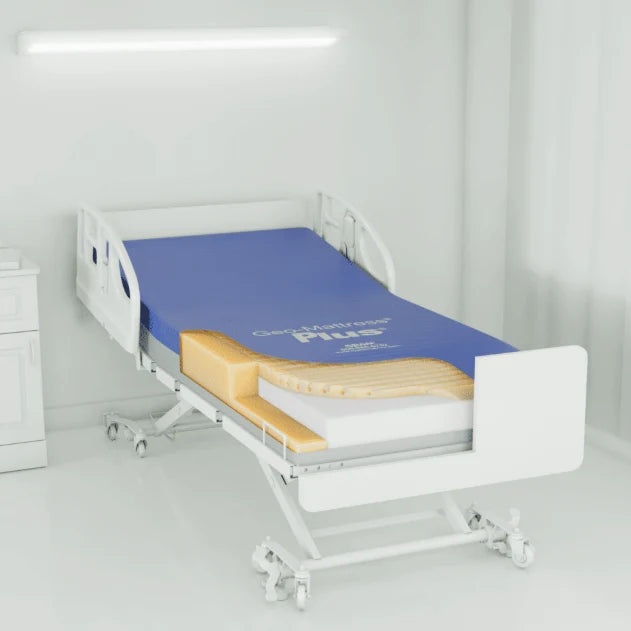

The Span America Geo-Mattress Plus is a 6-inch non-powered foam mattress. It is built from two layers of progressive-resistance foam: a soft, high-performance top layer that lets the body settle in, over a firmer bottom layer for stability. On top is a 2-inch Geo-Matt segmented layer of more than 800 individually articulating cells, in head, torso and foot zones, which conform to the body to help redistribute pressure, with Ring-of-Air channels that help carry heat and moisture away.
A tapered heel slope at the foot end is designed to shift load from the heels onto the lower legs. The cover has a fluid-proof, wipe-clean, bacteriostatic top, a tri-laminate bottom and a hidden zipper. It comes in eleven sizes: hospital and home care bed sizes from 32 to 42 inches wide, plus Twin, Full, Queen and King. The 35-inch sizes are rated to 400 lbs and the 39 and 42-inch sizes to 500 lbs; a 35-inch mattress weighs about 22 lbs.
Key Features
- Dual-layer progressive-resistance foam — soft top layer over a firmer base
- Geo-Matt segmented top — 2″ layer, 800+ cells in head, torso and foot zones
- Ring-of-Air channels — help carry heat and moisture away
- Heel slope — tapered foot end shifts load from the heels to the lower legs
- Up to 500 lb weight capacity — 400 lbs for 35″ widths; 500 lbs for 39″ and 42″
- Eleven sizes — 32–42″ bed sizes plus Twin, Full, Queen and King
- Fluid-proof, bacteriostatic cover — tri-laminate bottom, hidden zipper
- Non-powered — no pump or air hose
- 6-year non-prorated core warranty — 2 years on the cover
Equipment Specialist Insight: Match the size to the bed deck so the mattress fills it with no large gaps: 32–42″ widths suit hospital and home care beds, while Twin through King fit standard household bed frames. Width also sets the weight rating: 35″ sizes are rated to 400 lbs and 39″ and 42″ sizes to 500 lbs; confirm the rating for other sizes before ordering for a heavier user. If the user sits on the side of the bed or transfers often, the Geo-Mattress Plus FP adds a firmer edge. Wipe the cover clean with a facility-approved disinfectant.
Technical Specifications
| Brand | Span America |
| Model | Geo-Mattress Plus |
| PL7535-29 | 75″ L × 35″ W × 6″ H; 400 lbs |
| PL7835-29 | 78″ L × 35″ W × 6″ H; 400 lbs |
| PL8032-29 | 80″ L × 32″ W × 6″ H |
| PL8035-29 | 80″ L × 35″ W × 6″ H; 400 lbs |
| PL8435-29 | 84″ L × 35″ W × 6″ H; 400 lbs |
| PL8042-29 | 80″ L × 42″ W × 6″ H; 500 lbs |
| PL8442-29 | 84″ L × 42″ W × 6″ H; 500 lbs |
| PL7539-29 | 75″ L × 39″ W × 6″ H (Twin); 500 lbs |
| PL7554-29 | 75″ L × 54″ W × 6″ H (Full) |
| PL8060-29 | 80″ L × 60″ W × 6″ H (Queen) |
| PL8076-29 | 80″ L × 76″ W × 6″ H (King) |
| Mattress Weight | About 22 lbs (35″ sizes) |
| Construction | Dual-layer progressive-resistance foam; 2″ Geo-Matt segmented top (800+ cells; head, torso and foot zones); Ring-of-Air; heel slope |
| Cover | Fluid-proof, wipe-clean, bacteriostatic top; tri-laminate bottom; hidden zipper; vapor barrier |
| Power | Non-powered |
| Flammability | NFPA 101 (ASTM E1590); Cal TB 117; 16 CFR 1632 and 1633 |
| Warranty | Core: 6 years, non-prorated. Cover: 2 years. |
Frequently Asked Questions
Which size do I need?
Measure the bed deck. For hospital and home care beds, choose from the 32–42″ widths in 75–84″ lengths; for household bed frames, choose Twin, Full, Queen or King.
What weight capacity does each size have?
35″-wide sizes are rated to 400 lbs, and 39″ and 42″-wide sizes to 500 lbs. Ask us to confirm the rating for the 32″, Full, Queen and King sizes.
How is it different from the Geo-Mattress Plus FP?
The Plus FP adds a firmer edge along the sides for sitting and transfers. The foam, top surface, cover and warranty are the same.
Does it need power?
No. It is a non-powered foam mattress, with no pump or air hose.
Specifications are compiled from manufacturer and vendor documentation and are subject to change without notice. Verify current details before purchase. Information on this page is for general reference only and is not a substitute for professional medical advice. Consult a healthcare provider about support surface selection, and follow the bed and mattress manufacturers’ instructions, including bed rail guidance.
