Span America Geo-Mattress Pro FP Firm Perimeter Mattress
Model: Geo-Mattress Pro FP (PR7535FP-29 / PR7835FP-29 / PR8035FP-29 / PR8435FP-29)
Availability: In Stock – Ready to Ship
A Zoned Foam Mattress With a Geo-Matt Top and a Firm Edge for Sitting and Transfers

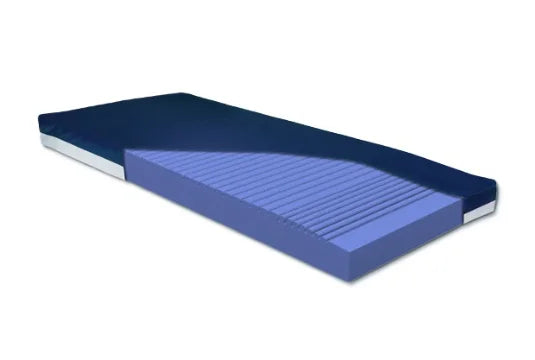

The Span America Geo-Mattress Pro FP is the firm-perimeter version of the Geo-Mattress Pro, a 6-inch non-powered foam mattress. A firmer edge along the sides gives a steadier surface to sit on at the side of the bed and to move from during transfers. The mattress is a single layer of zoned foam with a Geo-Matt segmented top of more than 800 individually articulating cells, arranged in head, torso and foot zones, which conform to the body to help redistribute pressure. Ring-of-Air channels around the cells help carry heat and moisture away.
A tapered heel slope at the foot end is designed to shift load from the heels onto the lower legs. The cover is fluid-proof, wipe-clean and bacteriostatically treated, with an ultra-low moisture vapor transmission rate (MVTR) and a hidden zipper. The Pro FP supports users up to 300 lbs, weighs about 21 lbs, and comes in four 35-inch-wide lengths: 75, 78, 80 and 84 inches.
Key Features

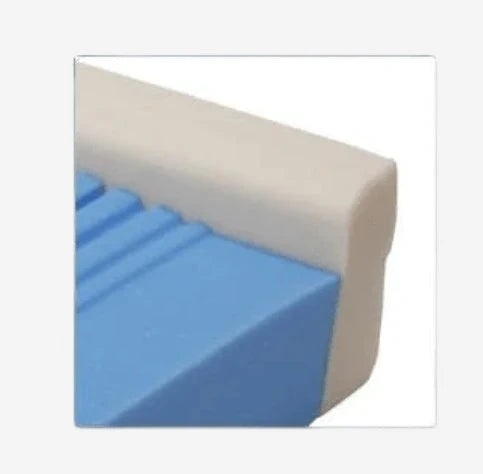

- Firm perimeter — firmer edge for sitting and transfers
- Geo-Matt segmented top — 800+ articulating cells in head, torso and foot zones
- Single layer of zoned foam — 6″ high
- Ring-of-Air channels — help carry heat and moisture away
- Heel slope — tapered foot end shifts load from the heels to the lower legs
- Fluid-proof, bacteriostatic cover — ultra-low MVTR, hidden zipper, wipe-clean
- 300 lb weight capacity
- Four lengths — 75″, 78″, 80″ or 84″; all 35″ wide
- Non-powered — no pump or motor
- 5-year non-prorated core warranty — 2 years on the cover
Equipment Specialist Insight: Choose the FP when the user sits on the side of the bed to dress or eat, or transfers in and out of bed regularly; the firmer edge gives a steadier base than a soft foam edge. If raised sides that define the edge of the sleep surface are wanted instead, see the Geo-Mattress Pro RP. Measure the bed deck and choose the length that fills it. Clean the cover with a damp cloth and a facility-approved disinfectant, air dry for 20–30 minutes, and never immerse the mattress or launder the cover.
Technical Specifications
| Brand | Span America |
| Model | Geo-Mattress Pro FP (Firm Perimeter) |
| PR7535FP-29 | 75″ L × 35″ W × 6″ H |
| PR7835FP-29 | 78″ L × 35″ W × 6″ H |
| PR8035FP-29 | 80″ L × 35″ W × 6″ H |
| PR8435FP-29 | 84″ L × 35″ W × 6″ H |
| Weight Capacity | 300 lbs |
| Mattress Weight | About 21 lbs |
| Construction | Single layer of zoned foam; Geo-Matt segmented top (800+ cells; head, torso and foot zones); Ring-of-Air; heel slope; firm perimeter |
| Cover | Fluid-proof, wipe-clean, bacteriostatically treated; ultra-low MVTR; hidden zipper |
| Power | Non-powered |
| Flammability | NFPA 101 (ASTM E1590); Cal TB 117; 16 CFR 1632 and 1633 |
| Care | Damp cloth and facility-approved disinfectant; air dry 20–30 minutes. Do not immerse or launder the cover. |
| Warranty | Core: 5 years, non-prorated. Cover: 2 years. |
Frequently Asked Questions
What does FP mean?
Firm Perimeter. The Pro FP is the Geo-Mattress Pro with a firmer edge along the sides, for sitting on the side of the bed and for transfers.
How is it different from the Pro RP?
The FP is a flat 6″ mattress with a firmer edge. The RP has foam sides raised to 8″ that define the edge of the sleep surface. Both share the same Geo-Matt top, heel slope, cover and 300 lb capacity.
Which length do I need?
Measure the bed deck. The FP comes in 75″, 78″, 80″ and 84″ lengths, all 35″ wide.
Does it need power?
No. It is a non-powered foam mattress, with no pump or motor.
Specifications are compiled from manufacturer and vendor documentation and are subject to change without notice. Verify current details before purchase. Information on this page is for general reference only and is not a substitute for professional medical advice. Consult a healthcare provider about support surface selection, and follow the bed and mattress manufacturers’ instructions, including bed rail guidance.
