Span America Geo-Mattress with Wings Raised-Edge Mattress
Model: Geo-Mattress with Wings (8 sizes, 35–42″ wide)
Availability: In Stock – Ready to Ship

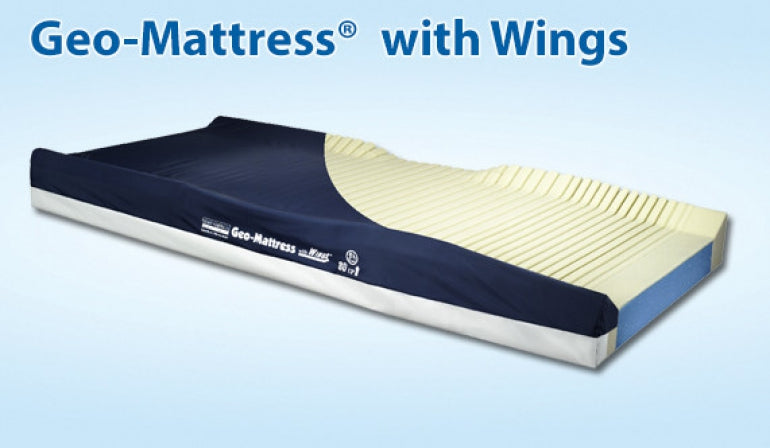

A Raised-Perimeter Foam Mattress With 8-Inch Sides and Padded Transfer Openings

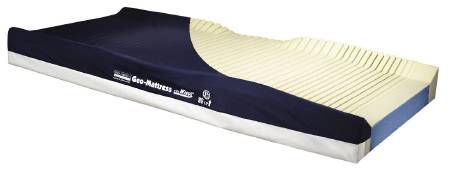

The Span America Geo-Mattress with Wings is a non-powered foam mattress with a raised perimeter. It is 6 inches high in the centre and rises to 8 inches along the sides, where extra-firm, high-density angled bolsters form the “wings” that define the edge of the sleep surface. Lowered, padded openings along the long edges keep getting in and out of bed straightforward. The whole surface, wings included, is topped with a 2-inch Geo-Matt layer of more than 800 individually articulating cells, so the sides are not exposed hard foam.
Under the Geo-Matt top is a dual-layer foam core, and the Ring-of-Air space around the cells lets the foam follow the body and help redistribute pressure. A tapered heel slope at the foot end is designed to shift load from the heels onto the lower legs. The cover has a fluid-resistant, wipe-clean, bacteriostatic top, a tri-laminate bottom and a hidden zipper. The mattress weighs about 24 lbs and comes in eight sizes: 35-inch widths are rated to 400 lbs, and 39 and 42-inch widths to 500 lbs.
Key Features

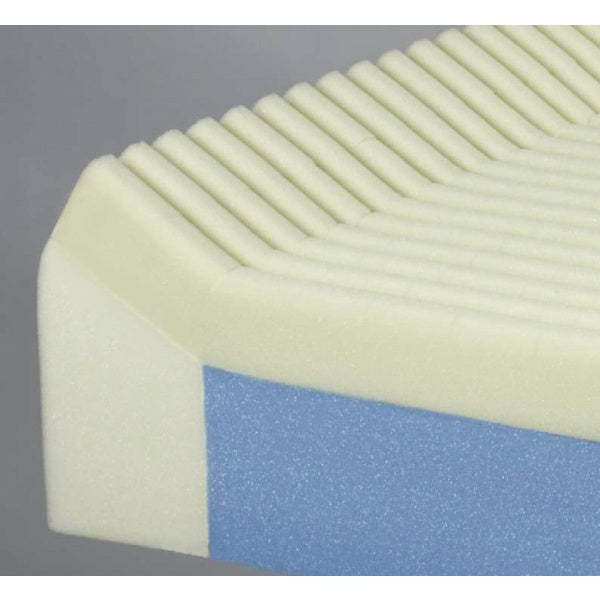

- Raised 8″ perimeter — extra-firm angled side bolsters; 6″ at centre
- Lowered, padded transfer openings — along the long edges

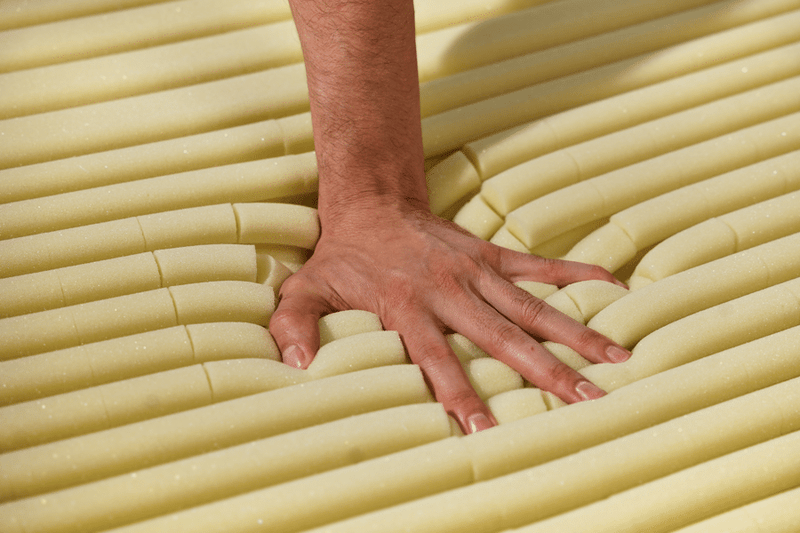

- Geo-Matt top edge to edge — 2″ layer, 800+ articulating cells
- Dual-layer foam core
- Heel slope — tapered foot end shifts load from the heels to the lower legs
- Up to 500 lb weight capacity — 400 lbs for 35″ widths; 500 lbs for 39″ and 42″
- Eight sizes — 35–42″ wide; 75–84″ long
- Fluid-resistant, bacteriostatic cover — tri-laminate bottom, hidden zipper
- Non-powered — no pump or air hose
- 5-year non-prorated core warranty — 2 years on the cover
Equipment Specialist Insight: Measure the bed deck and choose the width and length that fill it. Width also sets the weight rating: 35″ sizes are rated to 400 lbs, and 39″ and 42″ sizes to 500 lbs. The raised sides add 2″ of height at the edges, so check how the bed rails sit against the 8″ perimeter, following the bed manufacturer’s guidance. Position the mattress so the transfer openings line up with the side the user gets in and out from, and keep the heel slope at the foot of the bed. Wipe the cover with a facility-approved disinfectant.
Technical Specifications
| Brand | Span America |
| Model | Geo-Mattress with Wings |
| W7535-29 | 75″ L × 35″ W; 400 lbs |
| W7835-29 | 78″ L × 35″ W; 400 lbs |
| W8035-29 | 80″ L × 35″ W; 400 lbs |
| W8435-29 | 84″ L × 35″ W; 400 lbs |
| 87536 | 80″ L × 39″ W; 500 lbs |
| 10312 | 84″ L × 39″ W; 500 lbs |
| 66301 | 80″ L × 42″ W; 500 lbs |
| 79243 | 84″ L × 42″ W; 500 lbs |
| Height | 6″ at centre; 8″ at sides |
| Mattress Weight | About 24 lbs |
| Construction | 2″ Geo-Matt segmented top (800+ cells) over dual-layer foam core; extra-firm angled side bolsters; Ring-of-Air; heel slope |
| Transfer Openings | Lowered, padded openings on the long edges |
| Cover | Fluid-resistant, wipe-clean, bacteriostatic top; tri-laminate bottom; hidden zipper |
| Power | Non-powered |
| Flammability | NFPA 101; Cal TB 117; 16 CFR 1632 and 1633; BFD IX-11 |
| Warranty | Core: 5 years, non-prorated. Cover: 2 years. |
Frequently Asked Questions
What are the “wings”?
They are extra-firm, angled foam bolsters that raise the sides of the mattress to 8″, while the centre stays at 6″. They define the edge of the sleep surface and are topped with the same Geo-Matt cells as the rest of the mattress.
Can the user still get in and out of bed easily?
Yes. Lowered, padded transfer openings along the long edges make getting in and out of bed easier.
What weight capacity does each size have?
35″-wide sizes are rated to 400 lbs. 39″ and 42″-wide sizes are rated to 500 lbs.
Does it need power?
No. It is a non-powered foam mattress, with no pump or air hose.
Specifications are compiled from manufacturer and vendor documentation and are subject to change without notice. Verify current details before purchase. Information on this page is for general reference only and is not a substitute for professional medical advice. Consult a healthcare provider about support surface selection, and follow the bed and mattress manufacturers’ instructions, including bed rail guidance.
