Span America PressureGuard Easy Air LR Mattress System
Model: PressureGuard Easy Air LR Mattress Series (10 sizes, including recessed deck)
Availability: In Stock – Ready to Ship
A Powered Low-Air-Loss Mattress With Alternating Pressure, Float or Lateral Rotation
The Span America PressureGuard Easy Air LR is the lateral-rotation version of the Easy Air: a complete powered system made up of a 7-inch mattress, a control unit and a coverlet. Air flows through the mattress for low-air-loss microclimate management, and caregivers pair it with one of three modes: alternating pressure, in which four head-to-foot air cylinders cycle on a 15-minute pattern; float, for an even powered surface; or lateral rotation, which turns the surface gently from side to side. A comfort dial sets firmness, and an Auto Firm mode firms the surface for care and transfers. The system supports up to 500 lbs in float and alternating modes and up to 350 lbs in rotation mode.
The air system sits beneath a Geo-Matt foam top of more than 800 individually responsive cells, with a tapered heel slope at the foot end, and Safety Edge bolsters are designed to resist collapsing at the sides during transfers. The mattress holds its inflation during a power outage. The coverlet is fluid-proof, vapor-permeable, bacteriostatic and launderable, with an Air Diffusion Matrix to spread airflow. The control unit mounts at the foot of the bed. The mattress weighs about 22 lbs and comes in ten sizes from 35 to 53 inches wide, including a version for recessed-deck bed frames. Each system ships with the mattress, control unit and coverlet.
Key Features
- Complete system — mattress, control unit and coverlet
- Low air loss with alternating pressure, float or lateral rotation
- Alternating pressure — four head-to-foot cylinders, 15-minute cycle
- Comfort dial and Auto Firm mode
- 500 lbs in float and alternating; 350 lbs in rotation
- Geo-Matt foam top — 800+ cells, with heel slope
- Safety Edge bolsters — designed to resist collapse at the sides
- Holds inflation during a power outage
- Ten sizes — 35–53″ wide, plus a recessed-deck version
- 2-year warranty — all components, non-prorated
Available Add-Ons
- Replacement coverlet — fluid-proof, vapor-permeable, bacteriostatic and launderable; a spare keeps the mattress in use while one is washed. Available for the 75×35, 80×35, 84×35, 80×39, 80×53 and 84×53 mattresses.

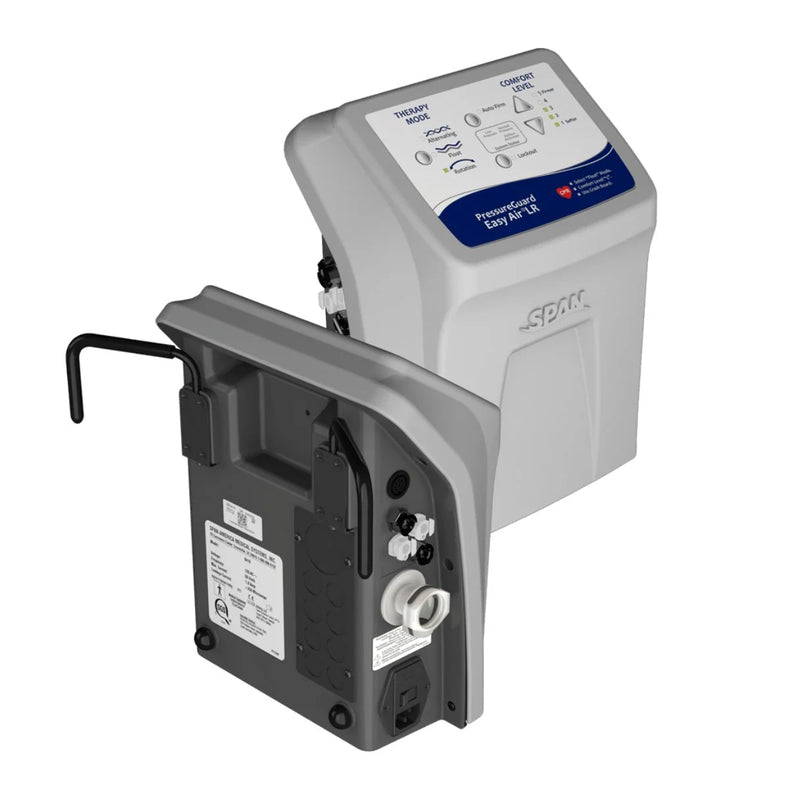

- Spare control unit (8210) — a replacement or backup unit for an existing Easy Air LR mattress.
Need help with setup? White glove setup is available if needed. See our White Glove Setup Service.
Equipment Specialist Insight: Check the weight limit for the mode the user will need: the Easy Air LR is rated to 500 lbs in float and alternating pressure but 350 lbs in lateral rotation. Measure the bed deck and choose the width and length that fill it; if the bed has a recessed deck, where the mattress sits down inside the frame, choose the recessed-deck version. Plug the control unit directly into a wall outlet and keep the air lines clear of the bed’s moving parts. Use Auto Firm for transfers and repositioning. A clinician should decide which mode, and whether lateral rotation, suits the user.
Technical Specifications
| Brand | Span America |
| Model | PressureGuard Easy Air LR |
| L7535LR-29 | 75″ L × 35″ W × 7″ H |
| L8035LR-29 | 80″ L × 35″ W × 7″ H |
| L8435LR-29 | 84″ L × 35″ W × 7″ H |
| L8039LR-29 | 80″ L × 39″ W × 7″ H |
| L8439LR-29 | 84″ L × 39″ W × 7″ H |
| 92726 | 80″ L × 42″ W × 7″ H |
| 42137 | 84″ L × 42″ W × 7″ H |
| L8053LR-29 | 80″ L × 53″ W × 7″ H |
| L8453LR-29 | 84″ L × 53″ W × 7″ H |

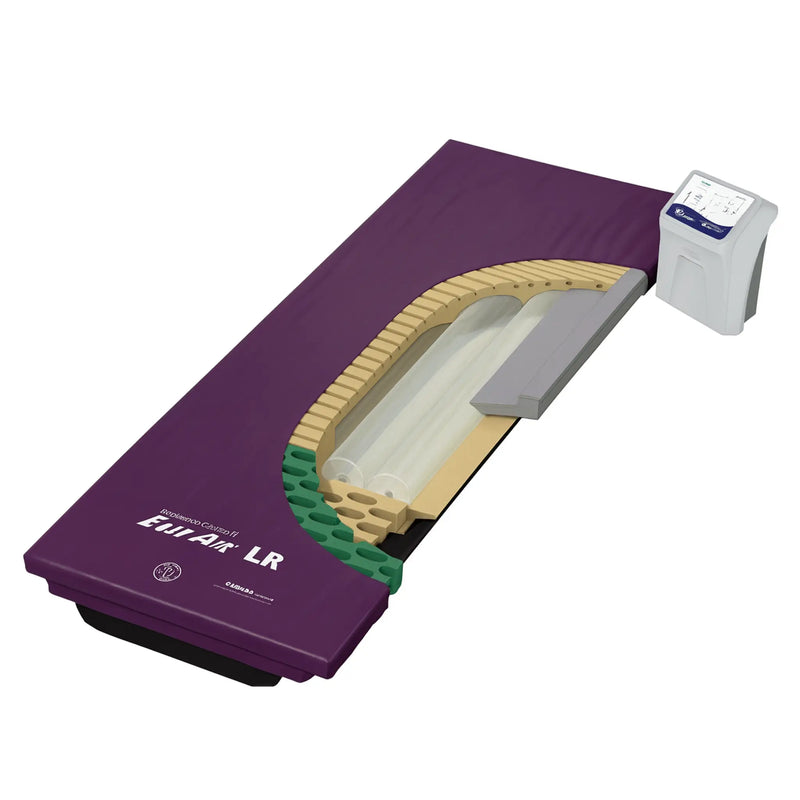

| L85VLR29 | For recessed deck bed frames |
| Weight Capacity | 500 lbs (float and alternating); 350 lbs (lateral rotation) |
| Height | 7″ |
| Mattress Weight | About 22 lbs |
| Therapy | Low air loss with alternating pressure (15-minute cycle), float or lateral rotation; Auto Firm |
| Air System | Four head-to-foot air cylinders; Air Diffusion Matrix |
| Top Surface | Geo-Matt foam, 800+ cells; heel slope |
| Edges | Safety Edge bolsters |
| Coverlet | Fluid-proof, vapor-permeable, bacteriostatic, launderable |
| Control Unit | Mounts at foot of bed; comfort dial; UL listed |
| Included | Mattress, control unit and coverlet |
| Flammability | NFPA 101; ASTM E1590; 16 CFR 1632 and 1633; Cal TB 117 |
| HCPCS | E0277 |
| Warranty | 2 years, all components, non-prorated |
Frequently Asked Questions
What does LR mean?
Lateral Rotation. Along with low air loss, the Easy Air LR can run in alternating pressure, float or lateral rotation, which turns the surface gently from side to side.
Is the weight limit the same in every mode?
No. It is 500 lbs in float and alternating pressure, and 350 lbs in lateral rotation.
What is included?
Each system includes the mattress in your chosen size, the control unit and a matching coverlet. A spare control unit and replacement coverlets are available as add-ons on this page.
What happens if the power goes out?
The mattress holds its inflation during a power outage, so the user stays supported until power returns.
Can I return it if it isn’t right?
No. For hygiene reasons this mattress system is final sale and cannot be returned, exchanged or refunded once it has shipped. Please check the size, weight rating and therapy placement before ordering, and ask us if you are unsure.
Please note: this item is final sale. For hygiene reasons, mattress systems cannot be returned, exchanged or refunded once they have shipped, and this includes mattresses that have been unpacked, set up or tried. Please confirm the bed deck size, weight rating and any therapy placement before ordering.
Specifications are compiled from manufacturer and vendor documentation and are subject to change without notice. Verify current details before purchase. Information on this page is for general reference only and is not a substitute for professional medical advice. Powered support surfaces should be selected with a healthcare provider and set up and operated according to the manufacturer’s instructions, including bed rail guidance.
