Span America PressureGuard Easy Air XL Bariatric System
Model: PressureGuard Easy Air XL Bariatric System (6 sizes)
Availability: In Stock – Ready to Ship
A Powered Bariatric Air Mattress System for Users From 350 to 1,000 lbs

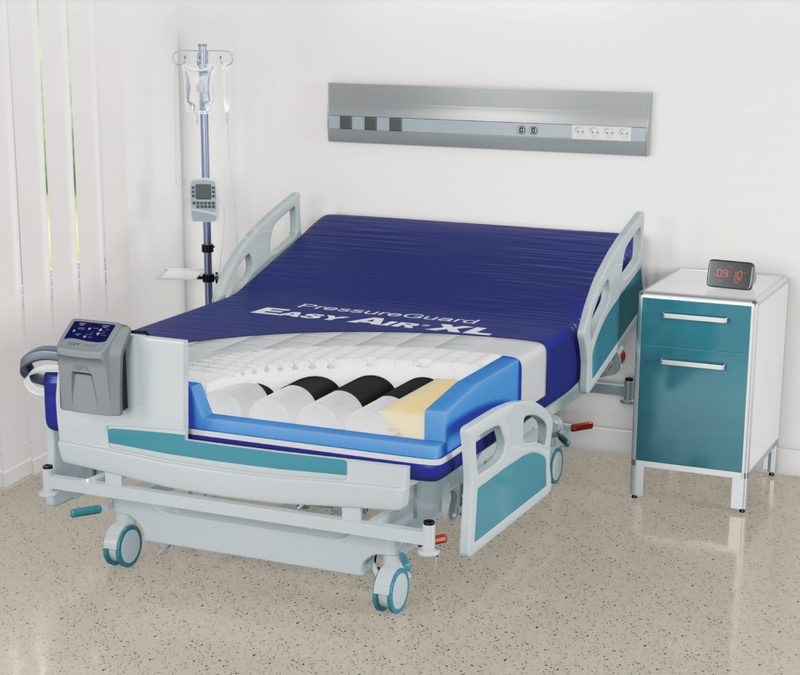

The Span America PressureGuard Easy Air XL is the bariatric version of the Easy Air: a complete powered mattress system made up of a 7-inch mattress, a control unit and a coverlet, for users weighing 350 to 1,000 lbs. Four air cylinders run the length of the mattress under the body, inside a foam shell, and the control unit runs them in either flotation or alternating pressure. Above the air cylinders is a Geo-Matt foam layer of more than 800 individual cells with a tapered heel slope at the foot end, and solid dual-layer foam Safety Edge bolsters run along the sides.

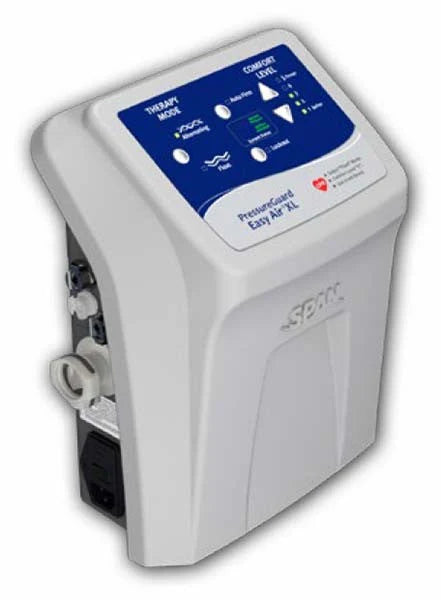

The control unit pairs a high-capacity blower with a low-capacity air pump and runs quietly on standard 120 V power. The mattress is designed to hold its air if the power goes out or the unit stops. The coverlet is waterproof, washable, flame-retardant and vapor-permeable, with an air diffusion matrix to help manage moisture. The mattress weighs about 32 lbs and comes in 42, 48 and 53-inch widths in 80 and 84-inch lengths. Every component is covered by a 2-year warranty. The 8310 control unit is also available on its own, as a spare or replacement for an existing Easy Air XL mattress.
Key Features
- Complete system — mattress, control unit and coverlet
- 350–1,000 lb weight range — not for users under 350 lbs
- Flotation or alternating pressure
- Four longitudinal air cylinders — inside a foam shell
- Geo-Matt foam top — 800+ cells, with heel slope
- Solid dual-layer foam Safety Edge bolsters
- Holds air during a power outage
- Vapor-permeable coverlet — waterproof, washable, flame-retardant, air diffusion matrix
- Six bariatric sizes — 42, 48 or 53″ wide; 80 or 84″ long
- Control unit only — 8310, available as a spare or replacement
- 2-year warranty — all components
Need help with setup? White glove setup is available if needed. See our White Glove Setup Service.
Equipment Specialist Insight: The Easy Air XL is built for heavier users: it is rated for 350 to 1,000 lbs and is not recommended below 350 lbs, where the standard PressureGuard Easy Air is the better fit. Match the width to a bariatric bed of the same deck size, and confirm the bed’s safe working load covers the user plus the mattress, since the lower rating applies. The 53″ sizes are made for full-long and 53″ bariatric decks and may need extra lead time. Plug the control unit directly into a wall outlet, and keep the cord clear of the bed frame’s moving parts. A clinician should decide which therapy setting suits the user.
Technical Specifications
| Brand | Span America |
| Model | PressureGuard Easy Air XL |
| L8042XL-29 | 80″ L × 42″ W × 7″ H |
| L8442XL-29 | 84″ L × 42″ W × 7″ H |
| L8048XL-29 | 80″ L × 48″ W × 7″ H |
| L8448XL-29 | 84″ L × 48″ W × 7″ H |
| L8053XL-29 | 80″ L × 53″ W × 7″ H |
| L8453XL-29 | 84″ L × 53″ W × 7″ H |
| Weight Range | 350–1,000 lbs |
| Height | 7″ |
| Mattress Weight | About 32 lbs |
| Therapy Modes | Flotation; alternating pressure |
| Air System | Four longitudinal air cylinders in a foam shell |
| Top Surface | Geo-Matt foam, 800+ cells; heel slope |
| Edges | Solid dual-layer foam Safety Edge bolsters |
| Coverlet | Waterproof, washable, flame-retardant, vapor-permeable; air diffusion matrix |
| Control Unit (8310) | 12 × 9.5 × 7 in; about 6 lbs; 120 V AC, 60 Hz, 1.0 A max; leakage current under 250 µA |
| Electrical Standards | ANSI/AAMI ES60601-1; CAN/CSA-C22.2 No. 60601-1; IEC 60601-2-21 |
| Included | Complete system: mattress, control unit, coverlet. Control Unit Only option: 8310 control unit only |
| Flammability | NFPA 101; Cal TB 117; ASTM E1590; 16 CFR 1632 and 1633 |
| Warranty | 2 years, all components |
Frequently Asked Questions
What is included?
Each system option includes the mattress in your chosen size, the control unit and a matching coverlet. The Control Unit Only option is the 8310 unit by itself, for use with an existing Easy Air XL mattress. The bed frame is sold separately.
What weight range is it for?
350 to 1,000 lbs. It is not recommended for users under 350 lbs; the standard PressureGuard Easy Air suits lighter users.
What happens if the power goes out?
The mattress is designed to hold its air during a power outage or if the control unit stops, so the user stays supported until power is restored.
Which width should I choose?
Match the mattress to the bed deck: 42″ and 48″ widths fit bariatric beds of those sizes, and 53″ fits full-long and 53″ bariatric decks. Choose 80″ or 84″ to match the deck length.
Specifications are compiled from manufacturer and vendor documentation and are subject to change without notice. Verify current details before purchase. Information on this page is for general reference only and is not a substitute for professional medical advice. Powered support surfaces should be selected with a healthcare provider and set up and operated according to the manufacturer’s instructions, including bed rail guidance.
