Span America Geo-Mattress UltraMax Stretcher Pad
Model: Geo-Mattress UltraMax for Stretchers (9 configurations)
Availability: In Stock – Ready to Ship

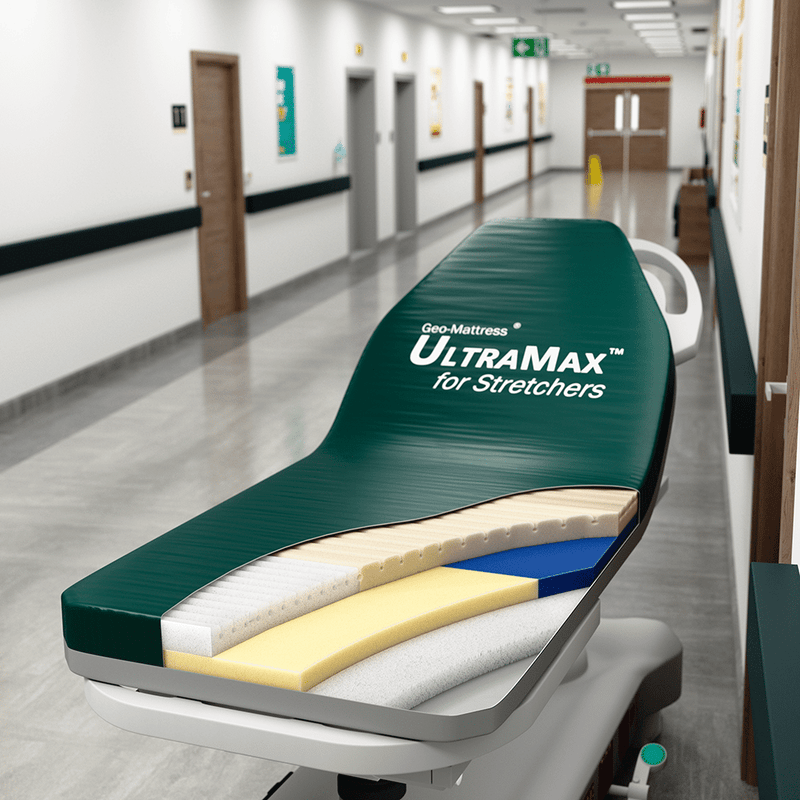

A High-Performance Foam Stretcher Pad With Tapered Ends to Fit Common Stretcher Models
The Span America Geo-Mattress UltraMax for Stretchers brings the UltraMax foam design to transport and procedure stretchers. The seat section, where a stretcher pad takes the most wear, uses UHP 500 Ultra High Performance foam, which Span America rates at a 55% higher support factor for resilience and recovery. Three-dimensional zoning varies support along the pad, an extra-soft heel section sits at the foot, and a Geo-Matt surface of individually articulating cells with Ring-of-Air channels helps heat and moisture move away from the surface.
Each pad is cut to a specific stretcher shape: eight one-piece sizes from 75 to 78 inches long and 26 to 30 inches wide, each with its own head-end and foot-end taper, plus a two-piece “Gynie” version for OB/GYN stretchers with adjustable foot sections. The underside is non-slip, with wide strips of hook fabric to secure the pad to the stretcher. The cover is bi-directional LifeSpan stretch fabric that resists bleach and harsh disinfectants, with a flapped zipper and silicone-coated Shear Transfer Zone bands on the underside. Pads weigh about 20 lbs, are rated to 700 lbs, and are latex-free and PBDE-free.
Key Features
- UHP 500 foam in the seat section — 55% higher support factor
- 3-Dimensional Zoning
- Extra-soft heel section
- Geo-Matt surface with Ring-of-Air channels
- Cut to fit — head and foot tapers matched to stretcher shapes
- Non-slip bottom with hook fabric strips — secures to the stretcher
- LifeSpan stretch cover — resists bleach; flapped zipper; Shear Transfer Zone bands
- 700 lb weight capacity — about 20 lbs
- 2-piece Gynie version — for OB/GYN stretchers
- Latex-free and PBDE-free
- Warranty — core 3 years; cover 2 years
Equipment Specialist Insight: Stretcher pads are not one-size-fits-all: the head and foot tapers need to match the stretcher’s frame. Measure the stretcher deck’s overall length and width, then measure how far the deck narrows at the head end and at the foot end, and choose the configuration that matches all four numbers. If you know the stretcher’s make and model, send it to us and we can help confirm the right pad before you order. Choose the 2-piece Gynie for OB/GYN stretchers with an adjustable foot section.
Technical Specifications
| Brand | Span America |
| Model | Geo-Mattress UltraMax for Stretchers |
| 47318 | 75″ L × 26″ W; head taper 7″, foot taper 0″ |
| 49297 | 75″ L × 26″ W; head taper 13″, foot taper 4″ |
| 97107 | 76″ L × 26″ W; head taper 10″, foot taper 4″ |
| 10635 | 76″ L × 26″ W; head taper 12″, foot taper 5″ |
| 2879529 | 76″ L × 27″ W; head taper 11″, foot taper 5″ |
| 46234 | 76″ L × 29″ W; head taper 10″, foot taper 8″ |
| 79012 | 76″ L × 30″ W; head taper 13″, foot taper 4″ |
| 98969 | 78″ L × 27″ W; head taper 12″, foot taper 12″ |
| 81921 | 2-piece “Gynie” for OB/GYN stretchers with adjustable foot sections |
| Weight Capacity | 700 lbs |
| Pad Weight | About 20 lbs |
| Construction | UHP 500 foam in seat section; 3-Dimensional Zoning; extra-soft heel section; Geo-Matt surface with Ring-of-Air channels |
| Cover | LifeSpan bi-directional stretch fabric; fluid-resistant, tear-resistant; flapped zipper; Shear Transfer Zone bands |
| Attachment | Non-slip bottom with hook fabric strips |
| Materials | Latex-free; PBDE-free |
| Flammability | NFPA 101 (ASTM E1590); Cal TB 117; 16 CFR 1632 and 1633 |
| Warranty | Core 3 years; cover 2 years |
Frequently Asked Questions
How do I choose the right pad?
Measure the stretcher deck’s length and width, plus how far it tapers at the head and at the foot, and match all four to a configuration. Send us the stretcher’s make and model if you’d like help confirming the fit.
What do the head and foot taper numbers mean?
They are the lengths over which the pad narrows at each end, cut to follow the shape of the stretcher deck.
What is the Gynie?
A two-piece pad for OB/GYN stretchers with an adjustable foot section.
How does it stay on the stretcher?
The non-slip bottom has wide strips of hook fabric that secure it to common stretcher models.
