VOCIC AX36 Combo-perior Lift & Transfer Chair - 353 lb
Model: AX36-A-BK-X (Black) | AX36-A-BE-X (Gray)
Availability: In Stock – Ready to Ship
A Powered Floor Lift That Also Drives the User to the Next Room

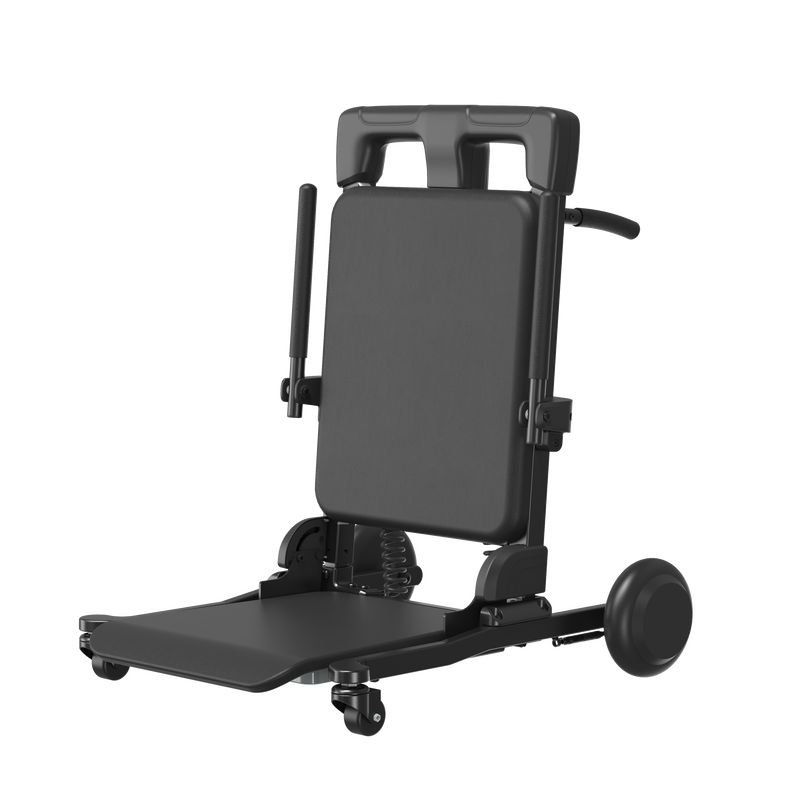

The VOCIC AX36 Combo-perior Lift & Transfer combines two jobs in one chair. Its seat lowers to just 3.5 inches off the floor so a person seated on the ground can be helped onto it, then rises to 19.7 inches on dual lead-screw motors designed for a steady lift with less shaking. Once raised, powered rear hub motors move the chair forward or backward at the push of a button, so the user can be transported to a bed, sofa or another room without a caregiver pushing.
The chair supports up to 353 lbs on a carbon steel and aluminum alloy frame. Releasing the drive button stops movement immediately, the front casters have brakes, and a safety belt and flip-up armrests make transfers on and off the seat easier. A 24V rechargeable battery powers both the lift and drive. Choose Black or Gray.
Key Features
- Floor-level lift — seat travels from 3.5" to 19.7"
- Dual lead-screw lift motors — designed for a steady rise
- Powered forward and reverse — rear hub motors, up to 1.1 mph
- Release-to-stop controls — movement stops as soon as the button is released
- 353 lb weight capacity
- Flip-up armrests and safety belt — easier, more secure transfers
- Front casters with brakes — 2" front, 6.5" rear drive wheels
- 24V rechargeable battery — powers lift and drive
- Two colors — Black or Gray
Product Specialist Insight: The AX36 is built for homes where getting someone up off the floor is only half the problem; the other half is getting them somewhere safe to sit or lie down. The low 3.5" seat height lets a person shuffle onto it from the floor, and the powered drive means a caregiver can guide rather than push. The lift is deliberately slow and steady, so a full rise takes about a minute and a half. Fasten the safety belt before lifting or driving, set the caster brakes when the chair is stationary, and check that doorways are at least 24" wide. If someone has fallen and may be injured, check for injury or call for medical help before moving them.
Technical Specifications
| Brand | VOCIC |
| Model | AX36 Combo-perior Lift & Transfer |
| Item Number (Black) | AX36-A-BK-X |
| Item Number (Gray) | AX36-A-BE-X |
| Weight Capacity | 353 lbs (160 kg) |
| Lift Range | 3.5" – 19.7" (90–500 mm) |
| Lift Speed | 5 mm/s |
| Drive Speed | Up to 1.1 mph, forward and reverse |
| Seat Size | 15.0" W x 16.9" D |
| Width Between Armrests | 17.3" |
| Overall Dimensions | 28.1" L x 23.9" W x 30.9"–48.2" H |
| Product Weight | 50.3 lbs |
| Battery | 24V / 2600mAh, rechargeable |
| Drive Motor | Rear hub motors, 150W rated |
| Wheels | 2" front casters with brakes, 6.5" rear drive wheels |
| Frame | Carbon steel and aluminum alloy |
| Backrest | Padded, wood board with leather |
| Safety | Safety belt, flip-up armrests, release-to-stop controls |
Frequently Asked Questions
How low does the seat go?
The seat lowers to 3.5" and rises to 19.7", so a person seated on the floor can be helped onto it and raised to a normal sitting height.
Does it move on its own?
Yes. Powered rear hub motors drive it forward or backward at up to 1.1 mph with a push of a button, and it stops as soon as the button is released.
Will it fit through my doors?
The chair is 23.9" wide overall. Measure your narrowest doorways before ordering.
What colors are available?
Black (AX36-A-BK-X) or Gray (AX36-A-BE-X).
