VOCIC AY05 Electric Patient Hoyer Lift, 330 lb - White
Model: AY05-A-WT-X (White)
Availability: In Stock – Ready to Ship

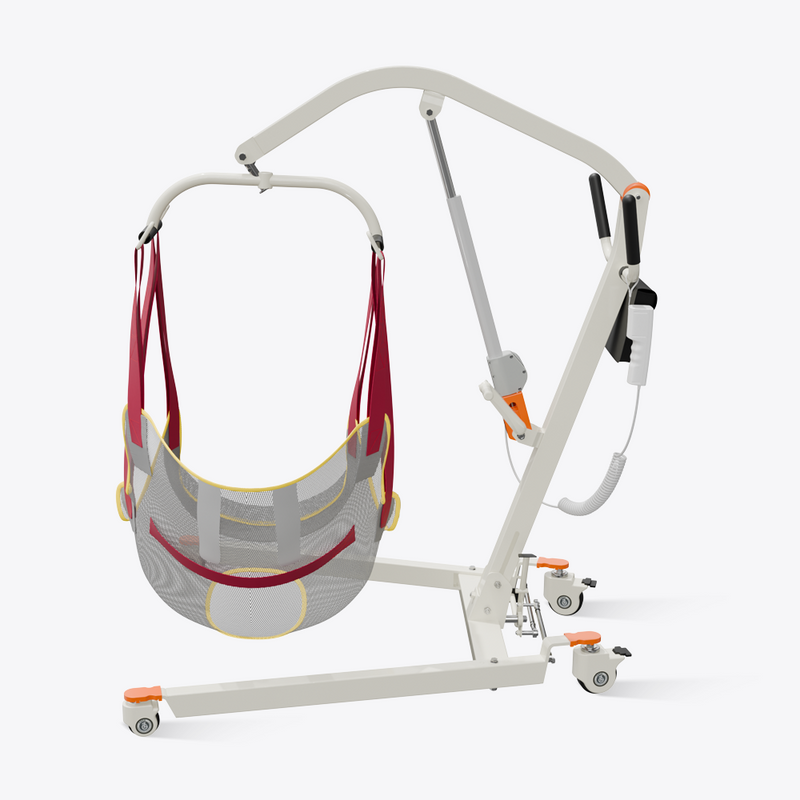

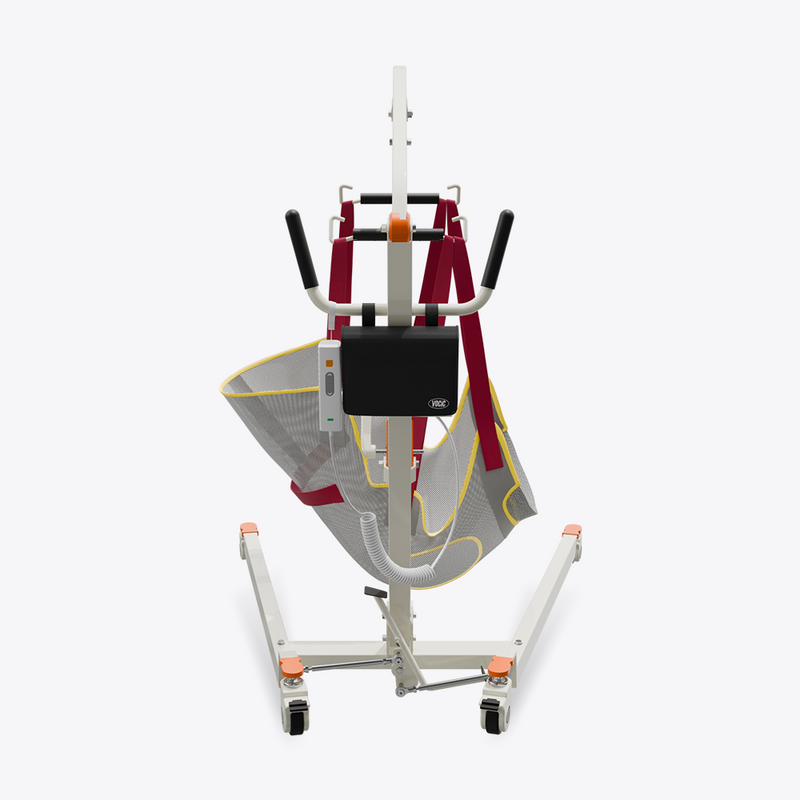

A Battery-Powered Patient Lift With an Adjustable-Width Base
The VOCIC AY05 Electric Transfer Hoyer Lift is a sling-style patient lift for moving a person between a bed, wheelchair, chair or commode, and for helping caregivers raise someone from the floor. A 120W, 6000N electric actuator does the lifting with a soft start and stop, so caregivers do not have to bear the person’s weight. It supports up to 330 lbs with a lifting range of 29.5 to 61 inches.
The control system is all-in-one: a rechargeable 22.2V lithium battery is built in, with no separate battery box or external power supply needed during use, and it delivers about 40 lifts per full charge at maximum load. A low-battery alert, overcharge protection, emergency stop and manual lowering release are built in. The base adjusts from about 24.4 to 38.2 inches wide to straddle a chair or wheelchair, and the lift rolls quietly on 3-inch front and 4-inch rear casters with rear brakes. An adjustable, machine-washable mesh sling and a storage bag are included.
Key Features
- Electric lift — 120W, 6000N actuator with soft start and stop
- 330 lb weight capacity
- 29.5" to 61" lifting range
- Built-in lithium battery — about 40 lifts per charge at maximum load
- Adjustable-width base — about 24.4" to 38.2"
- Safety features — emergency stop, manual lowering, low-battery alert, overcharge protection
- Quiet operation — 65 dB or less
- Casters with rear brakes — 3" front, 4" rear
- Mesh sling included — adjustable and machine washable
- Storage bag included
Product Specialist Insight: The AY05’s adjustable-width base is what makes chair and wheelchair transfers practical: widen the legs to straddle the chair, then narrow them again to fit through doorways. Mesh slings are lighter and dry faster than solid fabric, which suits frequent use and toileting transfers. Make sure the sling fits the user, and have a physical or occupational therapist show caregivers how to position it. Keep the battery charged, learn where the emergency stop and manual lowering release are before the first use, and if someone has fallen and may be injured, check for injury or call for medical help before lifting them.
Technical Specifications
| Brand | VOCIC |
| Model | AY05 |
| Item Number | AY05-A-WT-X |
| Color | White |
| Weight Capacity | 330 lbs (150 kg) |
| Lifting Range | 29.5" – 61" (75–155 cm) |
| Base Length | 44.7" (113.5 cm) |
| Base Width | Adjustable, 24.4" – 38.2" (62–97 cm) |
| Product Weight | 84.9 lbs (38.5 kg) |
| Actuator | 120W, 24V, 6000N |
| Battery | Lithium, 22.2V / 2.6Ah, built in |
| Lifts per Charge | About 40 at maximum load |
| Safety | Emergency stop, manual lowering, low-battery alert, overcharge protection, soft start/stop |
| Noise Level | ≤ 65 dB |
| Casters | 3" front, 4" rear with brakes |
| Frame | Steel |
| Included | Lift, adjustable mesh sling, storage bag |
| UPC | 810190251607 |
Frequently Asked Questions
How many lifts can it do per charge?
About 40 lifts on a full charge at maximum load. A low-battery alert lets you know when it is time to recharge.
Does the base adjust?
Yes. The base widens from about 24.4" to 38.2" so it can straddle a chair or wheelchair, then narrows to fit through doorways.
Is a sling included?
Yes. An adjustable mesh sling is included, and it is machine washable.
What if the power fails during a lift?
The lift has an emergency stop button and a handle-operated manual lowering release.
Specifications are compiled from manufacturer and vendor documentation and are subject to change without notice. Verify current details before purchase. Information on this page is for general reference only and is not a substitute for professional medical advice. Patient lifts should be operated by trained caregivers; consult a healthcare provider or therapist for sling selection and transfer technique, and follow the manufacturer’s instructions.
