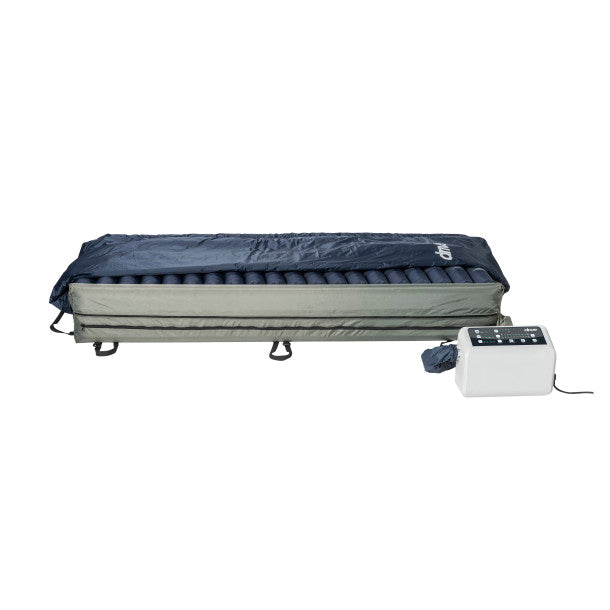

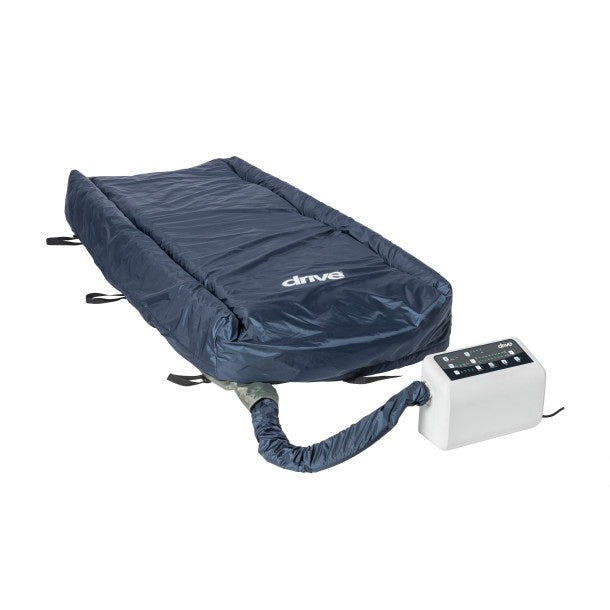

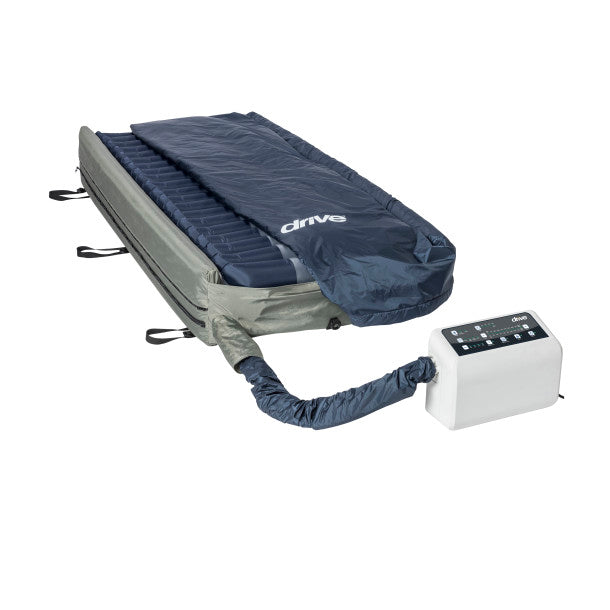

Drive Medical PreserveTech™ Lateral Rotation Mattress System with On-Demand Low Air Loss

The PreserveTech™ LS9500N is an advanced, active mattress replacement system that combines lateral rotation and low air loss therapies in one portable unit. Engineered for individuals with high-acuity needs, this system assists with repositioning and microclimate management by providing customizable turning angles of up to 40°. The "On-Demand" low air loss feature actively wicks away moisture and heat, maintaining an optimal surface microclimate to support skin integrity and address Stage I–IV pressure injuries.

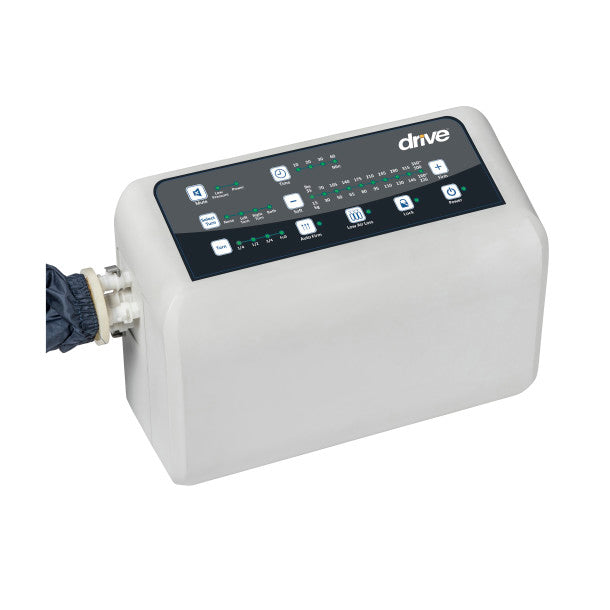

The LS9500N design features 10-inch high side air bolsters to help keep individuals positioned during rotation and a 2-inch foam base that provides continuous support during power outages. The user-friendly digital control unit offers 10 comfort levels and four adjustable cycle times (10, 20, 30, and 60 minutes), allowing caregivers to tailor the rotation protocol to individual needs.

Key Features

• Tri-Mode Lateral Rotation: Customizable turning angles (¼, ½, ¾, or full 40°) with Left, Right, Both, or Static modes for repositioning and pressure surface support.
• On-Demand Low Air Loss: High-volume airflow (50 LPM) keeps the surface dry and cool, reducing shear and friction.
• PreserveTech™ Antimicrobial Cover: Quilted 4-way stretch cover is treated with an antimicrobial agent and is fluid-resistant and vapor-permeable.
• Side Air Bolsters: Integrated 10-inch side air bolsters create a secure perimeter, especially useful during active turning cycles.
• 24-Hour Support Base: A 2-inch interior foam layer ensures the individual does not "bottom out" if power is lost.
• Advanced Caregiver Controls: Includes Auto-Firm for rapid inflation, Panel Lock-Out for security, and a CPR Valve for emergency deflation.
