Med-Mizer RETRACT-V Retractable Low Hi-Low Bed — Wall-Hugging, Expandable Width
Overview
The Med-Mizer RETRACT-V is a full-electric low bed built around one genuinely clever idea: instead of pushing the head section forward as it rises, the entire sleep deck gently retracts toward the wall. That "wall-hugging" motion keeps whoever is in bed within easy reach of a nightstand — a glass of water, a phone, the TV remote — without stretching or twisting. Paired with an ultra-low 9-inch deck height, it makes getting in and out, and staying comfortable while sitting up, noticeably easier.
It adapts to the room and the person at the touch of a button. The ComfortWide frame expands from 35 to 39 to 42 inches wide with no tools, the deck raises from 9 up to 25 inches for comfortable caregiving, and a Clinical-Contour setting raises the head and knee together to keep the body from sliding toward the foot. An Evac Position narrows the bed to pass through doorways under 36 inches, soft non-marking wall bumpers and a backlit pendant with staff lockout come standard, and the whole bed folds upright into roughly four square feet for storage. Built on a heavy-duty steel frame with a 500 lb capacity and made in the USA, it's backed by a lifetime weld, 15-year frame, and 5-year drive-system warranty. A matched head and foot board set is included — choose your finish below.

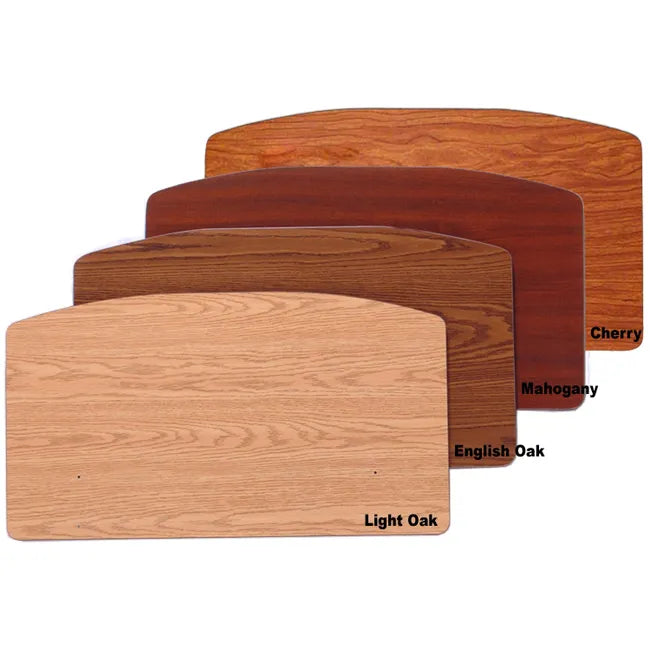

Included Head & Foot Boards — Choose Your Finish
A matched set of ThermoBoard head and foot boards comes included with your bed, in four warm veneers to suit any décor:
- Cherry — warm and traditional.
- English Oak — rich and classic.
- Light Oak — light and contemporary.
- Mahogany — deep and elegant.
Complete Your Bed
1. Choose your mattressREQUIRED
The RETRACT-V does not include a mattress — you choose the surface that suits how the bed will be used, from supportive foam through to powered therapy. Get in touch if you'd like help matching a surface to the bed and the need.
2. Add side rails, assist bars & accessoriesOPTIONAL
Shape the bed around what's actually helpful at the bedside.
- RETRACT-V Accessories & Options — quarter-length side rails (2-position, 3-position, or extended 19″ height), plastic clocking rails, pivoting and fixed assist bars, rails with embedded controls, and side-rail pads. Plus caster and SureLock braking upgrades, 4″ and 8″ bed and mattress extenders, a trapeze, backup battery, USB port, under-bed light, and removable attendant controls.
Key Features
- Retractable, wall-hugging deck — keeps the user close to the nightstand when the head is raised.
- Ultra-low 9″ deck height for easy access; raises to 25″ for comfortable caregiving.
- ComfortWide expandable width — 35″, 39″, or 42″ at the touch of a button, no tools.
- Clinical-Contour positioning — raises head and knee together to reduce sliding.
- Evac Position narrows the bed to pass through doorways under 36″.
- Backlit hand pendant with staff lockout — standard.
- Soft non-marking wall bumpers — standard.

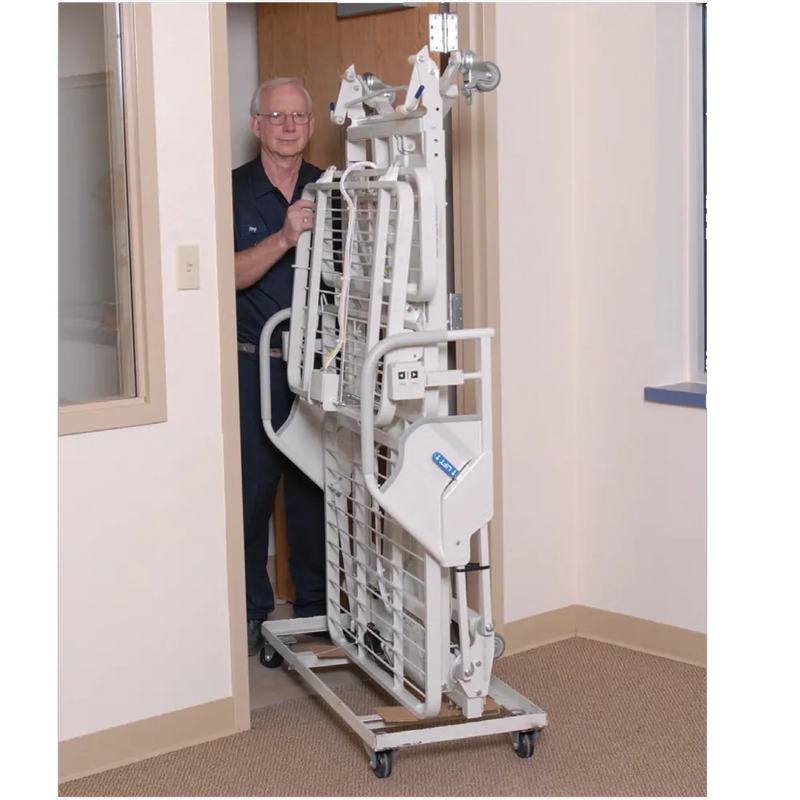

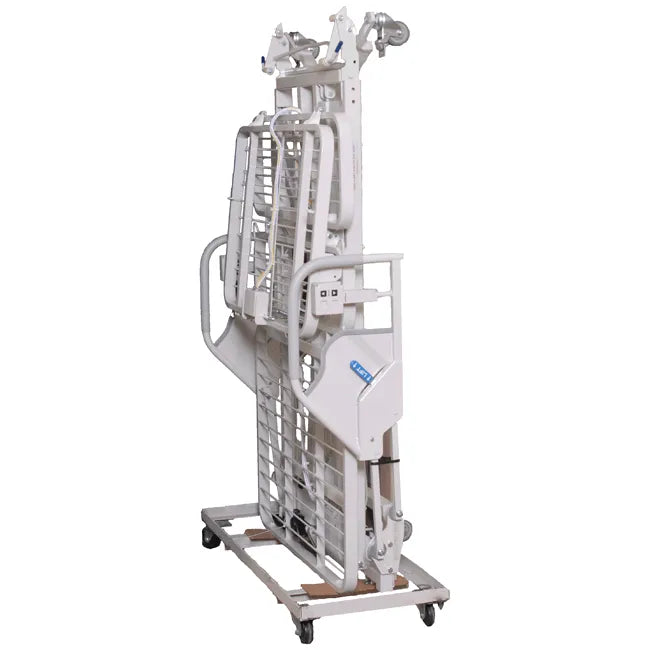

- Folds upright for storage in about four square feet; rolls at any height.
- Heavy-duty steel frame, 500 lb capacity (600 lb option).
- Matched head and foot board set included — Cherry, English Oak, Light Oak, or Mahogany.
- Made in the USA; lifetime weld, 15-year frame, 5-year drive-system warranty.

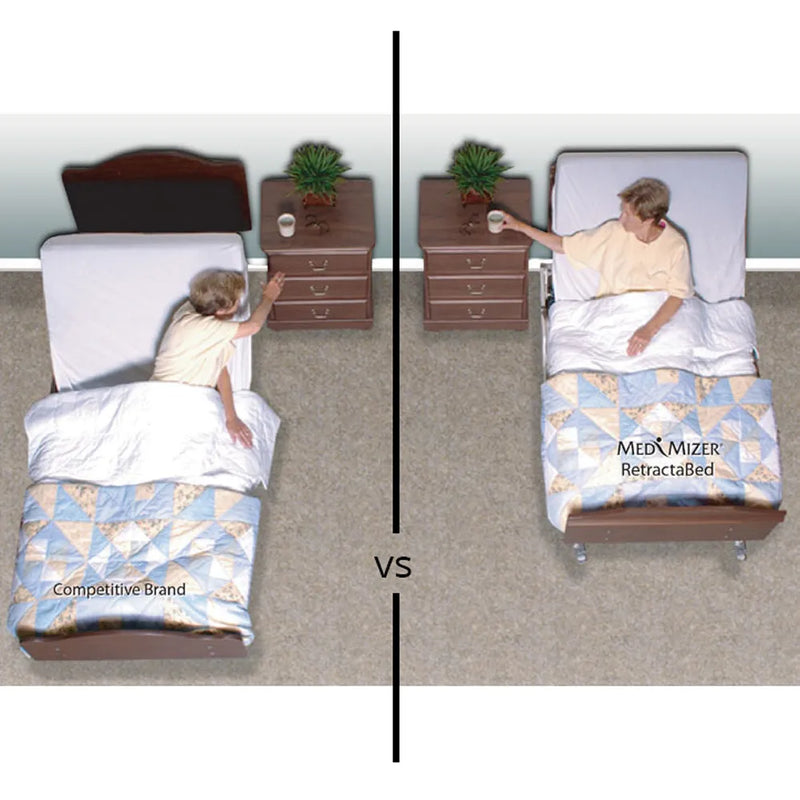

Equipment Specialist Insight: The retracting deck is the feature that sets this bed apart — most beds just tilt the head up, which slides the person away from the nightstand; this one draws the whole deck toward the wall so everything on the bedside table stays in reach. A couple of things worth knowing when you configure it: the width is a built-in, push-button feature (35 to 42 inches), so you don't pick a width as a separate part — the same bed adjusts. Head and foot boards are included as a matched set, so just choose the veneer that suits the room. Side rails and assist bars are chosen separately from the accessories page — match them to the need, since partial-length rails give a hand-hold, pivoting assist bars help with sitting up and standing, and the embedded-control rails put the bed controls right where they're used. The mattress is chosen separately too, and because this is a large, heavy freight item, White Glove delivery and setup is well worth considering.
Technical Specifications
- BrandMed-Mizer
- ModelRETRACT-V (RetractaBed)
- TypeFull-electric retractable low hi-low bed
- Deck Height9″ (low) to 25″ (high)
- Width (ComfortWide)35″ / 39″ / 42″ (push-button, tool-free)
- Sleeping Surface35/39/42″ × 80″ (84″/88″ options)
- Length (retracted–extended)71″ to 85″
- Weight Capacity500 lbs (600 lb option)
- PositioningClinical-Contour; max back angle 70°

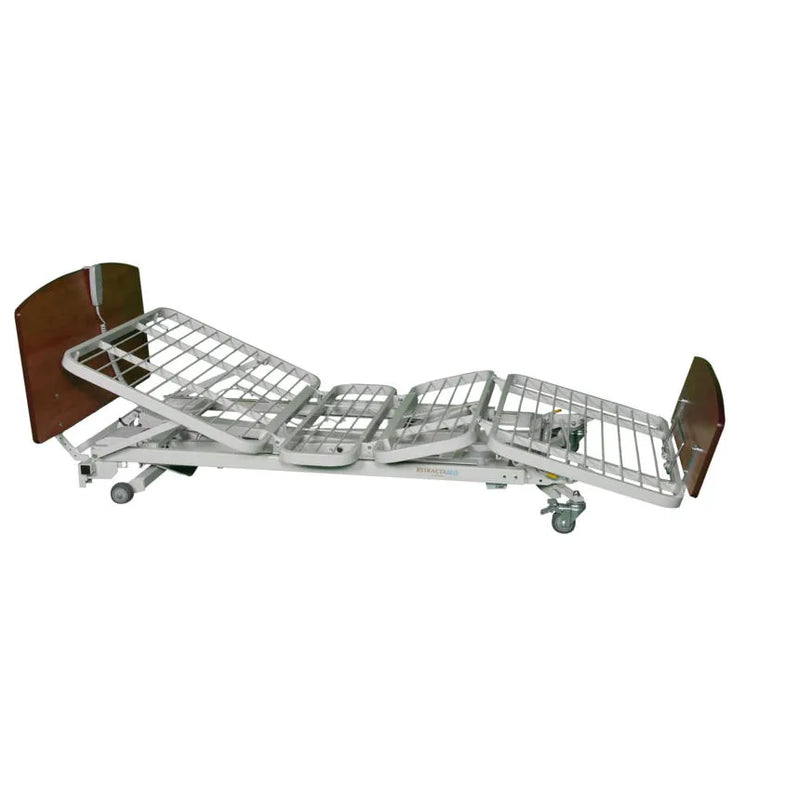

- DeckGrid deck; heavy-duty steel frame & pivots
- ControlsBacklit hand pendant with staff lockout
- StandardWall bumpers, FootRack, drainage-bag hooks, Evac Position
- StorageFolds upright (~4 sq ft); rolls at any height
- BoardsMatched head + foot set included — Cherry / English Oak / Light Oak / Mahogany
- MattressNot included (required; selected separately)
- Rails & AccessoriesOptional (selected separately)
- OriginMade in USA
- WarrantyLifetime welds; 15-yr frame; 5-yr drive; 1-yr wood/casters/handsets
What does the "retractable" frame actually do?
When the head of the bed is raised, the whole deck gently draws back toward the wall instead of pushing forward — so the user stays close to the nightstand and within easy reach of their things.
Do I need to choose a width?
No. Width is a built-in feature — the ComfortWide frame expands from 35″ to 39″ to 42″ at the touch of a button, with no tools, so the same bed adjusts to fit.
What's included, and what do I add separately?
Your matched head and foot board set is included — just choose the finish. A mattress is required and selected separately. Side rails, assist bars, and other extras are optional and available on the RETRACT-V accessories page.
White Glove Delivery & Setup (Optional)
Because the RETRACT-V is large, heavy, and arrives partially assembled, we offer optional White Glove delivery and setup. The team brings the bed inside to the room of your choice, fully assembles it, installs your head and foot boards and any side rails, tests all of the electric functions, and removes the packaging — so it's ready to use the moment they leave. Add White Glove Delivery & Setup to your order, or contact us and we'll be glad to arrange it for you.
Mattress not included and required; side rails and accessories are optional and sold separately. Retail packaging and specifications may be updated by the manufacturer without notice. This is a large, heavy freight item; delivery and setup assistance is recommended, and boards or accessories may ship separately. Please confirm your board finish before ordering.
